Meizu Electronic Technology E5 User Manual

Meizu electronic technology mp3 player user's manual e5
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

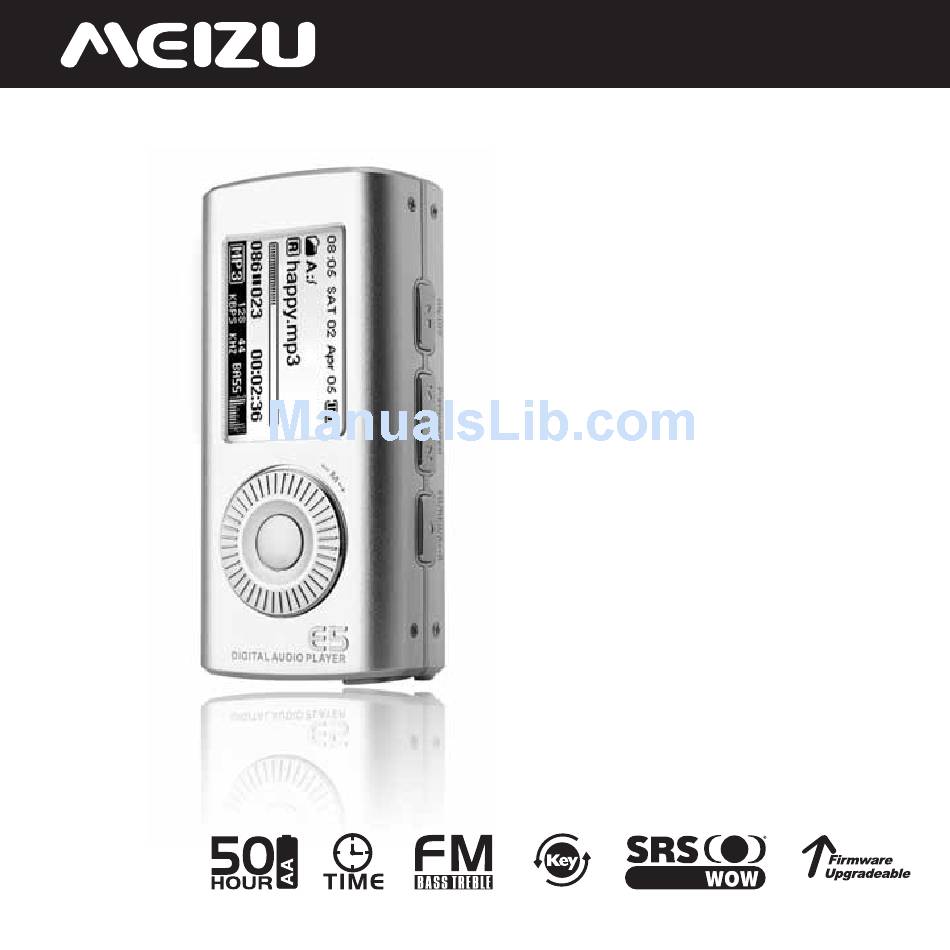

E5
DIGITAL MP3 PLAYER
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E5 and is the answer not in the manual?

Questions and answers

Related Manuals for Meizu Electronic Technology E5

Summary of Contents for Meizu Electronic Technology E5

  • Page 1 DIGITAL MP3 PLAYER User's Manual...
  • Page 3 DIGITAL AUDIO PLAYER ■ Supports WMA/MP3/WAV File Formats ■ FM Bass/Treble & FM Recording ■ Direct MP3 Encoding (CD Line-in) ■ Digital Voice Recorder/A-B Repeat ■ USB Flash Drive, USB 2.0 High Speed ■ Electron Clock Settings, Timing Alarm...

  • Page 4: Precautions

    Touching the product with wet hands may cause a mal- function. Do not keep it in high temperatures or dispose in direct sunlight. Keep away from places of dust and cigarette ash. When leaving the player not used for a long time, be sure to take out the battery.

  • Page 5: Copyright Notice

    Please read this manual carefully before use. We recommend you to keep it for future reference. Trademark This product is the registered trademark of Meizu Electronic Technology Co., Ltd.. Notice The various examples, drawings and specifications included in this User Manual are subject to change without prior notice when new product enhancements become available.

  • Page 6: Product Features

    ■ Plays MP3,WMA, WAV formats. Voice recording. FM radio broadcast with Bass and Treble adjustable. FM radio recording. Direct MP3 encoding ( CD Line-in ). Mobile Disk. Synchronized song lyric showing. Text view. ■ Elegant and luxurious design with Aluminum body ■...

  • Page 7: Table Of Contents

    PRECAUTIONS COPYRIGHT NOTICE PRODUCT FEATURES PACKAGE CONTROLS CONNECTING THE PLAYER TO A PC BATTERY LCD WINDOW BASIC CONTROLS BASIC OPERATION FOUR OPERATING MODES NAVIGATION MODE CONTENTS Contents 11-12 17-20...
  • Page 8 OPERATING THE CONTROLS REPEATING PROCEDURES MENU LIST DETAILED FEATURES BY MENU INSTALL SOFTWARE ON THE PC DOWNLOADING FROM THE PC PLAY MUSIC FM RADIO BROADCAST AUTO SEARCH RADIO BROADCASTS RESERVE THE CURRENT STATION LISTEN TO THE MEMORIZED STATION DELETE THE MEMORIZED STATION CONTENTS Contents 23-26...
  • Page 9 RECORDING FM RECORDING VOICE LINE-IN RECORDING PLAY RECORDING FILE DISPLAYING LYRIC TEXT VIEW FIRMWARE UPGRADE FORMAT HANDLING INSTRUCTIONS TROUBLE SHOOTING PRODUCT SPECIFICATIONS MEMO CONTENTS Contents 59-62 63-65 69-71...

  • Page 10: Package

    Package Earphone Battery DIGITAL AUDIO PLAYER MP3 Player Main Body User's Manual / Warranty Card USB Cable / Simple USB Connection Jack Line-in Recording Cable Pouch Installation CD Fashionable Necklace...

  • Page 11: Controls

    Controls LCD Window Front Side NAVI/MENU Scroll Key Back Side E5 Series ２．０ HOLD...

  • Page 12: Controls

    Ｐ ｒ ｅ ｖ ｉ ｏ ｕ ｓ ／ ｎ ｅ ｘ ｔ Ｐ ｒ ｅ ｖ ｉ ｏ ｕ ｓ ／ ｎ ｅ ｘ ｔ Neck Strap Microphone Earphone Jack Right Side Ｅ Ｑ Ｅ Ｑ EQ / REC / A-B Repeat Previous / Next Track Power ON/ Play / Power OFF Left Side...

  • Page 13: Connecting The Player To A Pc

    Connecting the Player and a PC Caution: Before connecting the USB cable to the player, stop playback. With the USB cable(provided), connect the USB port of the player and your PC. USB port on the PC In the normal Windows environment, as soon as the cable or simple USB jack is connected, the messege the player is installed automatically(It may not appear the message during switching "...

  • Page 14: Battery

    Inserting Battery Put down and open the battery cover. Push the cover in the reverse order of opening it. Insert the AA battery Make sure to power off the product before your taking out the battery. Battery...

  • Page 15: Lcd Window

    Week Current Time File Content Play Mode Status Bar Play Status Song Total / Track No. File Format Bite Rate LCD Window Date (D/M/Y) Remaining Battery Charge Song Info Play Time Equalizer Sampling Rate...

  • Page 16: Basic Controls

    ① ② ③ Ｅ ５ Ｄ Ｉ Ｇ Ｉ Ｔ Ａ Ｌ　 Ａ Ｕ Ｄ Ｉ Ｏ　 Ｐ Ｌ Ａ Ｙ Ｅ Ｒ １ LCD window ２ Scroll Key To function clockwise To function anticlockwise ３ To select NAVI/MENU function. ④...

  • Page 17: Basic Operation

    When using Menu Click When using Navigation Long Click Power ON / Power OFF During power OFF, click the button Long click the button for about 3 seconds, it displays the message and power off. Increase / Decrease Volume Basic Operation and turn on the player.

  • Page 18: Selecting Modes

    Selecting Modes Click ' Mode' Click Function Selecting Songs During play music, press Switch to the next track. is pressed after 5 seconds into the track, the track is played again from the beginning and the button is pressed before 5 seconds, the previous track plays. EQ Selecting During play music, press Ｅ...
  • Page 19 Hold Using hold function to make buttons inoperative and prevents unwanted action caused by accidental pressing. ① Switch to hold: Function Function ② Release: While holding, function Function While switch to hold function, all the buttons cannot be operated. It is irrelevant to listen music or FM stations. button to switch to Hold.
  • Page 20 Turning Power Off Press button for more than 3 seconds to turn the play power off. Power cannot be turned off during the player being connected to your PC through USB cable. Play, Stop Press button to play tracks, and again to pause, press for more than 2 seconds to stop.

  • Page 21: Four Operating Modes

    Switching Different Modes There are four modes, MP3 Mode, FM Radio, Voice Recorder and Repeat Mode. Press the NAVI/MENU button and select ' Mode' into the four mode selecting. You can switch to the desired mode by using the button Click Click ' Mode' Function...

  • Page 22: Navigation Mode

    Navigation Mode ① During MP3 mode , long click the NAVI/MENU button and select Music Folder Long Click ② Press the NAVI/MENU button and find the desired track by pressing button. To move to the upper folder, push the If there is no upper folder, Navigation exits. ③...

  • Page 23: Operating The Controls

    MP3 Mode In "Key Action", indicates pressing the button for a short second and for more than 1 second. Button Key Action Play current track Inefficacy ● Turn power off Move to previous track ● Rewind Move to next track Fast forward Volume Up Volume Up Continuously...
  • Page 24 FM Radio Mode In "Key Action", indicates pressing the button for a short second and for more than 1 second. Button Key Action Enter Frequency preset mode Inefficacy Turn power off Decrease FM frequency Rapidly decrease FM frequency Increase FM frequency Rapidly increase FM frequency Volume up Volume up continuously...

  • Page 25: Repeat Mode

    Repeat Mode In "Key Action", indicates pressing the button for a short second and for more than 1 second. Button Key Action Paused Play current track Inefficacy Turn power off Move to previous track Rewind Move to next track Fast forward Volume Up Volume Up Continuously Volume Down...

  • Page 26: Operating The Controls

    Navigator Mode In "Key Action", indicates pressing the button for a short second and for more than 1 second. Button Key Action Selecting the Folder Display the playback menu Display the playback menu Display the playback menu Exit Exit Inefficacy Inefficacy Move to previous track Move to Previous Continuously...

  • Page 27: Repeating Procedures

    Repeating Operation Procedures Move to: Repeat Mode Press Play Music Press Select A Press Select B Long Press Start Recording Long Press Stop recording and repeat the current track and the AB section. Long Press Ｅ Ｑ ／ Ｒ Ｅ Ｃ ／ Ａ － Ｂ Press Ｅ...

  • Page 28: Menu List

    Mode General Playback Resume FM Radio Auto Play Record MENU Button Voice Repeat EQ-AB Button Battery Type Clock Power Manage Check date/time Brightness Set date/time Time Alarm Auto Off Sleep Information Sound Effect Play Mode Boundary SRS WOW Repeat Shuffle Record Mode Record mode...

  • Page 29: Detailed Features By Menu

    General 1. Resume ・ This is the feature to recall the last played position (track). ・ ・ Select 'Resume' and press the NAVI/MENU button. 2. Auto Play ・ This is the feature to play the player immediately after it powers on. ・...

  • Page 30: Auto Play

    4. EQ-AB Button ・ This is the feature to set EQ / AB during clicking ・ Select 'EQ Button', click click ・ When you select the option with the ' NAVI/MENU button, the selection is applied. 2. Auto Play 5. Battery Type ・...
  • Page 31 Sound Effect 1. EQ ・ There are following sound field effects available, Normal, Rock, Jazz, Classic, Pop, Bass, User, TruBass, SRS, WOW. ・ With the ' ' and ' ' buttons to select the EQ, press the NAVI/MENU button to confirm. 　　User EQ ・...
  • Page 32 2. SRS WOW WOW Level ・ ・ ・ ・ Trubass Sound Effect ・ ・ ・ ・ Speaker Type ・ ・ ・ 　　　　　NAVI/MENU button, the selection is applied. Brightness ・ ・ 　　　　　button. ・ ・ Detailed Features by Menu This is the feature to set SRS, WOW sound effect.　 Push the ' ' and ' ' to select ' WOW Level ' , press the...
  • Page 33 Play Mode 1. Boundary ・ This menu is for setting various modes of play. ・ Select 'Play Mode' and press the NAVI/MENU button.　 ・ This function is for selecting the boundary: All, Folder, Favorite. ・ Push to adjust the value , and press the NAVI/MENU button. 2.
  • Page 34 Display 1. Play Time ・ Display and change the time information of the played track. ・ When you select the option and press the NAVI/MENU button, the selection is applied. 2. Song Title ・ This is the feature to decide how to display file names. ・...
  • Page 35 5. LYRIC display ・ This is the feature to set the LYRIC display specified in the 'Play' mode. ・ ・ Select 'LYRIC' and press the NAVI/MENU button. 6. Language ・ This is the feature to change the menu language. ・ You can choose: English, Chinese(Simp), Chinese(Trad).
  • Page 36 Clock 1. Check date / time ・ ・ ・ ・ 2. Set date / time ・ ・ ・ ・ 3. Alarm ・ ・ ・ ・ ・ ・ Detailed Features by Menu This is the feature to view the date and time. Select the ' Check date/time ' option, and press the NAVI/MENU button.　　...
  • Page 37 Power Manage 1. Brightness ・ This is the feature to adjust the brightness of the LCD backlight. ・ You can choose a number between 0 and 10. ・ Select 'Brightness' and press the NAVI/MENU button. Choose a value with 2. Time ・...
  • Page 38 Record 1. Record Mode ・ This is the feature to set the mode of the recording. ・ You can select Mic Recording and Line-in Recording. ・ Select the options with NAVI/MENU button. 2. Voice bps ・ This is the menu for setting the transmission rate (quality) of the MP3 files recorded via the built-in microphone on the top of the player.
  • Page 39 5. L-in bps ・ ・ ・ 6. FM/L-in Gain ・ ・ ・ 7. FM/L-in Auto Sync ・ ・ Detailed Features by Menu This is the menu for setting the transmission rate (quality) of the MP3 files recorded via Line In. You can choose: 32Kbps, 64 Kbps, 96Kbps, 128 Kbps.
  • Page 40 FM Radio 1. Stereo ・ 　　 ・ 2. Auto Scan ・ ・ 3. FM Recording ・ ・ Detailed Features by Menu This is the menu for selecting stereo or mono while listening to the FM radio. Select 'Stereo ' and press the NAVI/MENU button. This is the menu for scanning the FM radio broadcast.

  • Page 41: Detailed Features By Menu

    Information 1. Information This is feature to display the information: Firmware Version Memory ・ ・ ・ ・ Free Memory Space Detailed Features by Menu Information on the flash memory in the Player is displayed. You can check usage and remaining memory size. Some of the flash memory in the Player is used for system area.

  • Page 42: Install Software On The Pc

    Insert the installation CD into the CD-ROM drive. The following screen appears after inserting the CD. You can update the features of the player by downloading from the internet. It is not need to install the program of USB Port Driver for Windows 2000 SP3 system or higher.
  • Page 43 Install the Manager Software Set up the player manager software on your PC for the following situations: MP3 player Formatting; Firmware Upgrade; the player can not be connected to PC. Insert the player Installation CD to the CD-ROM in your PC. Click Meizu MP3 Drive to start the installation.

  • Page 44: Install Software On The Pc

    Click [Next>]. Click [Finish]. Complete the installation of the player Manager Software. To uninstall the the player Manager Software, select the Start - Programs - SigmaTel MSCN Audio Player-Uninstall Install Software on the PC Then necessary files will be copied into your hard disk and updated the driver infor- mation.It will take you a few seconds.

  • Page 45: Downloading From The Pc

    MP3 files can be downloaded to the player by the following steps. Select the desired music on the PC to download to the player. Double click [My Computer], then click and open the [Mobile Disk]. The player is shown as the Mobile Disk on your PC.
  • Page 46 It appears on your PC as shown as follows for the Flash Memory Window " After finishing copy, it appears the music files on the Mobile Disk. Disconnect the player and your PC, then you can listen the music. You can also download the files by dragging and dropping them onto the Flash Memory Window "...

  • Page 47: Play Music

    Play Music Ｃｏｎｎｅｃｔ　ｔｈｅ　ｅａｒｐｈｏｎｅｓ　ａｓ　ｂｅｌｏｗ． To select music To select the previous music To select the next music By turning Hold ON, the buttons on the player will not function. It plays the music automatically after turning on accordingly to the setting of "Auto Play" on the MENU.

  • Page 48: Fm Radio Broadcast

    While playing MP3 music, press the NAVI/MENU button. Click ' Mode' Click Function The four modes selecting displays on the LCD. Push the button to select FM radio button. FM RADIO Press to switch the stations . Ｐ ｒ ｅ ｖ ｉ ｏ ｕ ｓ ／ ｎ ｅ ｘ ｔ Ｐ...

  • Page 49: Auto Search Radio Broadcasts

    Save the auto searching channels (Memory Function). ① During the FM mode, press the NAVI/MENU button to enter Menu. Click ② Push to select the Auto Scan mode then press the ON/OFF button. ③ I t displays the picture as the right finger on the LCD.

  • Page 50: Reserve The Current Station

    Manual Reserving the Current Station ① During FM mode, long click the NAVI/MENU button. Long Click ② Press to select the channels. ③ Press to select Save mode, Then press the NAVI/MENU button to memory it. ④ Press the NAVI/MENU button to start listening radio. Note: You will select the location 1-16 to reserve the stations if the current location come to 15.

  • Page 51: Listen To The Memorized Station

    Preset mode To select a channel saved in memory, long press the Navi/Menu button and find the channel by pushing switch to the left or right. It displays CH** on the LCD during preset mode. How to enter Preset mode During FM mode press the ON/OFF button How to select channels To select a memorized channel, with...

  • Page 52: Delete The Memorized Station

    Delete saved channels (Memory delete function) ① During FM mode, long click the NAVI/MENU button. Long Click ② Push to select the channel, then press the NAVI/MENU button. ③ Push to select Delete mode, then press the NAVI/MENU button. ④ Press button and exit.

  • Page 53: Recording Fm

    To Record FM ① During FM mode, click the NAVI/MENU button. Click ② Press to select the desired music. For details of FM Radio and Listen to the Memorized Station, see the related pages in this User Guide. ③ Long press button to start FM recording.

  • Page 54: Recording Voice

    Please make sure that the battery volume is enough during Voice Recording. Shortcut Record: During MP3 mode, press Starting Recording Press button for more than 2 Ｅ Ｑ ／ Ｒ Ｅ Ｃ ／ Ａ － Ｂ seconds to start recording. Ｅ...

  • Page 55: Line-In Recording

    Line-in Recording ① During four mode selecting, select Voice Record. Click ' Mode' Click ② Push to select Record mode, press the NAVI/MENU button. ③ With to select MIC/LINE-IN. Press the NAVI/MENU button. Double click interface, and long press Ｅ Ｑ ／ Ｒ Ｅ Ｃ ／ Ａ － Ｂ ④...

  • Page 56: Play Recording File

    Click the NAVI/MENU button, select the Mode and click it. Click ' Mode' Click Function Push to select the MP3 Playback mode NAVI/MENU button. Ｐ ｒ ｅ ｖ ｉ ｏ ｕ ｓ ／ ｎ ｅ ｘ ｔ Ｐ ｒ ｅ ｖ ｉ ｏ ｕ ｓ ／ ｎ ｅ ｘ ｔ Click Push to select a Rec file in the REC folder, press ON/OFF to start...

  • Page 57: Displaying Lyric

    Displaying Lyric Download the lyric files from the internet to the PC. The lyric file is the format of Irc. as suffix. Turn off the player and take out the battery. Long Click Press the button for about 3 seconds. Copy the lyric files from your PC to the Player.

  • Page 58: Text View

    View the TEXT files (txt. format) ① During the MP3 mode , long press the NAVI/MENU button. Long Click ② Select the Music Folder select the TEXT file. Return to the upper folder, press the button ③ Press the NAVI/MENU button. Press it again, display the function list as below, To bookmark Move to Bookmark...

  • Page 59: Firmware Upgrade

    When you upgrade the firmware, all the date in the flash memory is deleted. Therefore, users should personally back up important MP3 files and data saved in MP3 player to their PC before upgrading the firmware.
  • Page 60 MEIZU Update Download Meizu Update package from Meizu's website ( Take note of the model no. and version.) Unzip and copy it to the directory of the manager software. Installing directory C:\Program Files\SigmaTel\MSCN ****.Rar Firmware upgrade package Turn off the player. Long Click Long click for more than 3 seconds...
  • Page 61 After connecting your PC and the player, the PC identify with it automatically. It appears the message to find a new hardware on your PC for the first time to update. Update is running. Firmware Upgrade Select START-[Program]-[SigmaTel MSCN Audio Player]-[ firmware Download] Select the Format Data Area Enable :Format ME, then update programs.
  • Page 62 Firmware Upgrade While finishing, click [Close] to exit. Click [Start] to begin to update. After finish the above procedures, disconnect your PC and the player, then connect the m again to finish. If the player is not able to be used, take out the battery and select Format Data Area, then redo the updating again to clear it.

  • Page 63: Format

    Formatting the Flash Memory The flash Memory of the player can be formatted. If the flash Memory is formatted, all data stored within is lost. Take notice of this fact, examine the following procedures. Prepare the followings before formatting, Finish the installation of the program manage. Connecting the player and your PC.
  • Page 64 Select the Mobile Disk and right click it, then select and click [Format] It appears the warning window, select [OK] to continue. Click the [Start]. The formatting is start running. Format...
  • Page 65 Format While finishing, click [OK] to finish. Exit the formatting, click [Close] to exit. It is easy to format your MP3 player, please refer to Windows instruction to format on your PC.

  • Page 66: Handling Instructions

    Do not subject the player to severe impact or jarring. Vibration experienced during walking or exercising will not affect the player. However, dropping a heavy object on the player may result in damage or sound distortion. Be careful when storing the set and do not use or place it at the following places: ■...

  • Page 67: Trouble Shooting

    Trouble Shooting Check that the battery 's polarity is correct. No Power Check the voltage of battery. Take out the battery for a short while and reinsert. Check whether VOLUME is set to "0". Connect the earphones/ remote plug firmly. No sound from earphones Check whether plug is dirty.

  • Page 68: Product Specifications

    Product Specifications 74mm×35mm×20mm (H×W×T) Dimensions 41g (Excluding Battery) Weight 128x96 dot, 6 line LCD Screen USB2.0 High Speed PC Interface Built-in basic Memory (128MB ~1GB according to product) Flash Memory One AA Battery Battery Maximum 50 hrs of continuous playback Sampling Rate Recording Format Record...

  • Page 69: Memo

    Memo Memo...
  • Page 70 Memo Memo...
  • Page 71 Memo Memo...
  • Page 72 DIGITAL MP3 PLAYER Meizu Electronic Technology Limited Add.: 3/F, 7th Pingxi 5 Road, Nanping Technology Park Zhuhai, Gongdong, P.R.China...
