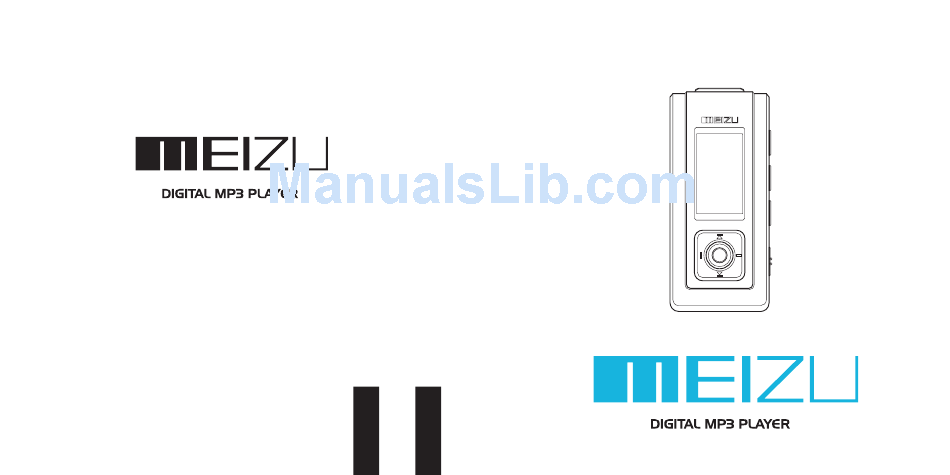

User's Manual
Meizu X3 Series
Meizu Electronic Technology Limited
Add.: 3F No.7 Ping Xi 5th Road Nan Ping Technology & Industrial
Park Zhuhai Guangdong China 519060
Version: mzx306-01en

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X3 and is the answer not in the manual?

Questions and answers

Related Manuals for Meizu Electronic Technology X3

Summary of Contents for Meizu Electronic Technology X3

  • Page 1 User's Manual Meizu X3 Series Meizu Electronic Technology Limited Add.: 3F No.7 Ping Xi 5th Road Nan Ping Technology & Industrial Park Zhuhai Guangdong China 519060 Version: mzx306-01en...
  • Page 2 Welcome to visit Meizu's website! The Meizu's home page provides the overview of company and products, other related information, and answers to common questions. Firmware and software updates are also available as well as the most recent information about your Meizu product. In order for customers who purchased the product to receive specialized services, we recommend that they accomplish customer registration at http://www.meizu.com.

  • Page 3: Table Of Contents

    1. Getting Started ¡ Precautions for Using the Product ¡ Copyright Notice Product Features ¡ Package Contents Parts and Names ¡ LCD Display ¡ Loading Battery Using for the First Time 2. Basic Operation USB Connection ¡ Installation CD ¡ ¡...

  • Page 4: Precautions For Using The Product

    Voice Recorder ¡ Play Recording Files ¡ ¡ Operating the Controls Menu List 4. Menu Detailed Features by Menu ¡ 5. Guide to Firmware Upgrade ¡ Firmware Upgrade 6. Additional Information Handling Instructions ¡ Trouble Shooting ¡ Product Specifications ¡ Memo ¡...

  • Page 5: Copyright Notice

    General Copyright This product is the registered trademark of Meizu Electronic Technology Co., Ltd.. Meizu Electronic Technology Co., Ltd., Has the exclusive copyright for this User Manual.It is prohibited to distribute this User Manual in part or in whole without permission.
  • Page 6 Earphones / Earphone Covers MP3 Player Main Body Manu alWarr anty Card/ Quick Start Guide Installation CD Fashionable Necklace Note: Design and specifications are subject to change without notice. Package Contents 1. Front Side Pouch VOL - NAVI/MENU Mini USB Adapter / USB Cable 3.

  • Page 7: Lcd Display

    1. Play Music 11 12 2. FM Radio LCD Display 3. MIC Recording 1. Song Total 2. File Content 3. Play Mode 4. File Format 5. Play Status 6. Track Number 7. Play Time 8. Remaining Battery Charge 9. Song Info 10.
  • Page 8 Inserting Battery 1. Put down and open the battery cover. 2. Insert the AAA battery 3. Push the cover in the reverse order of opening it. And close the battery cover. Note: 1. Make sure to power off the product before your taking out the battery. 2.

  • Page 9: Usb Connection

    Connecting the Player to a PC Caution: Before connecting the USB cable to the player, stop playback. Connect the USB cable(provided) to the USB port of your computer. USB Cable USB port on the PC Cautions: During the connecting of USB cable to your PC, USB port can be used as power supply.

  • Page 10: Install The Manager Software

    Setting Up the Manager Software Set up the player manager software on your PC for the following situations: MP3 player Formatting, Firmware Upgrade or when it is not able to connect the PC with the player. Insert the player Installation CD to the CD-ROM in your PC.

  • Page 11: Format

    Formatting the Flash Memory The flash Memory of the player can be formatted. If the flash Memory is formatted, all data stored within is lost. Take notice of this fact, examine the following procedures. Before formatting, Finished installation of the player manager program Connecting the player to your PC Backup all data stored on the player Operating procedures...

  • Page 12: Downloading From The Pc

    While finishing, click [OK] to finish. It is easy to format your MP3 player, please refer to Windows instruction to format on your PC. While using WINDOWS formatting, it appears the warning, click OK and finish it. You should take special care when you format it since all the data in the memory will be deleted.

  • Page 13: Saving Files Disconnecting To Your Pc

    Downloading from the PC It appears on your PC as shown in the figure as follows. After finishing copy, it appears the music files on the mobile disk. Disconnected the player to your PC, then you can start listening the music. Or you can also drag and drop the selected files from your PC into the [Mobile Disk] window.

  • Page 14: Using Buttons

    1. Power On Press ON/OFF button, the power comes on and Meizu logo appears. Long Click Press ON/OFF button again, start to play. (Since Auto-play function is set, Click play automatically starts when the power is turned on.) 2. Power Off When you press and hold ON/OFF button, the power turns off.

  • Page 15: Play Music

    Listening to Music Click Click 1. Connect the player and the earphones. 2. Turn the player on by press the ON/OFF button. 3. The start logo displays on the LCD. 4. Press ON/OFF to start to play the music. 5. Navigate with the FF/REW buttons, and select the previous / next music. Navigate with the '+' or '-' buttons, and adjust the volume.

  • Page 16: Menu Controls

    Menu Controls Click Select the Menu Options Click the MENU button, navigate with the '+' or '-' buttons options. Click the MENU button or push the FF button, then enter the submenu. Push the REW button to the upper menu. Adjust the Values Navigate with the '+' or '-' buttons to adjust the volume.

  • Page 17: Text View

    View the TEXT Files (txt.) 1. Connect the MP3 player and your PC with the USB cable. 2. Save the selected text file(.txt suffix name) into your MP3 player. 3. Disconnect the MP3 player and your PC. 4. Turn on the player, function the Navigation button and select the text file.

  • Page 18: Fm Radio

    Listening to FM Radio Long Click Click Music -> Radio Mode (see the above) 1. Press and hold the Mode/EQ button to show the main screen and then select the "Radio". 2. Press the FF/REW button , you can find the frequency. Note: If the signal and information in the place where you are listening is too weak, it may degrade the FM radio quality.

  • Page 19: Memorizing The Current Station

    Memorizing the Current Station Manual Memorizing the Current Station Long Click 1. During FM mode, long click the Menu button to enter preset mode. 2. Function the '+' or '-' buttons to select the location to memorize , then click the Menu button.

  • Page 20: Deleting The Memorized Station

    Deleting the Memorized Station Delete Channels Long Click 1. During FM mode, long click the Menu button and enter the preset mode. 2. Function the '+' or '-' buttons and select the channel. 3. Press the MENU button and pop up the menu window. 4.

  • Page 21: Voice Recorder

    MIC Recording Long Click Long Click Click 1. After turning the player on, long press the MODE/EQ button, then switch into Voice recording mode. 2. Long press the REC/A-B button and start recording. 3. Click the button again, you can pause it. Long press it to stop. Note: 1) Please make sure the battery volume is enough during Voice Recording.

  • Page 22: Operating The Controls

    Navigator Mode Operation When Selecting a File Play the select ed file & then chan ge /return to the MP3 Player mode Power off Play the select ed file & then chan ge /return to the MP3 Player mode Exi t...

  • Page 23: Menu List

    Operating the Controls FM Radio Mode Operation FM Mode Enter Preset mode Pow er off Incr ease frequenc y Search the next FM station Decrease frequenc y Search the prev ious FM station Volume Up Volume Up Conti nuousl y Volume Dow n Volume Dow n Conti nuousl y Setup FM Menu...

  • Page 24: Detailed Features By Menu

    Detailed Features by Menu General 1. Resume ・ This is the feature to recall the last played position (track). ・ ・Select 'Resume' and press the 'Menu' button. 2. Auto Play ・ This is the feature to play the player immediately after it powers on.
  • Page 25 Detailed Features by Menu 7. Format ・ This is the menu to format the player. ・ If the flash Memory is formatted, all data stored within is lost. ・Select 'Format' and press the 'Menu' button. ・With the '+' or '-' button to select 'Yes' or 'No'. ・Press the MENU button to apply it.
  • Page 26 Detailed Features by Menu 2. Song Order ・You can adjust the song order to apply to the tracks to be played, ・File Name ・Download Time ・File Time 3. Repeat ・You can adjust the repeat value to apply to the tracks to be played, ・Normal ・Repeat All...
  • Page 27 Detailed Features by Menu 3. Animate Menu (Page Sliding) ・This is the feature to control the animation effect for the smooth opening and closing of menus. ・You can choose: Fast, Normal, or Disable. ・Select a value and press the 'Menu' button to apply it. 4.
  • Page 28 Detailed Features by Menu 2. Sleep Timer ・The player can be set to automatically turn off after a preset time while it is playing or stopping. ・You can choose: 10, 20,30,60,90 or 120 Min. ・Select 'Sleep' and press the MENU button. Then choose a value with the FF/REW buttons.
  • Page 29 Detailed Features by Menu 3. AGC ・This adjust the volume level of the sound input to the built-in microphone. ・ ・Select 'AGC ' and press the 'Menu' button. 4. Reduce Noises ・This is the menu to reduce the noises by screen off during recording.

  • Page 30: Firmware Upgrade

    Notice for Legal Limitations and Responsibilities Regarding Firmware 1/ The performance and menu of MP3 Player may change without prior notice through firmware upgrades of regular or beta versions supported by the manufacturer.
  • Page 31 Please refer to the following procedure. Tur n off the player. Long Click Long press the ON/OFF button. Decompress the downloaded files ("X3.ebn", "resource.bin"), drag and drop them onto the "Mobile Disk" window. X3.rar Firmware package (Please take attention to the model numbers and firmware versions.
  • Page 32 Select and click Start -> Programs -> Meizu MP3 Tools -> DFU Tool. During DFU upgrading, the MP3 player is recognized as PNX0102 device. Keep holding and do not move your finger before it automatically finds the device finally. Firmware Upgrade Connecting the player to your PC with the USB cable.

  • Page 33: Handling Instructions

    Do not subject the player to severe impact or jarring. Vibration experienced during walking or exercising will not affect the player. However, dropping a heavy object on the player may result in damage or sound distortion. Be careful when storing the set and do not use or place it at the following places: ¡...

  • Page 34: Product Specifications

    Product Specifications Flash Memory 128MB\256MB\512MB\1GB Dimensions 62mm×28mm×16mm (H×W×T) Weight 28g (Excl. Battery) 128x64 dot, blue color OLED screen PC Interface High speed USB2.0 Flash Memory Built-in basic Memory (128~1GB according to product) Battery 1.5V (AAA) 1 unit battery Maximum 16 hrs of continuous playback Sampling Rate Record Recording Format...
  • Page 35 Memo...
