USERS MANUAL / GEBRUIKERSHANDLEIDING
BETRIEBSANLEITUNG / MANUEL UTILISATEUR
MANUAL DE UTILIZACION / INSTRUZIONI PER L'USO

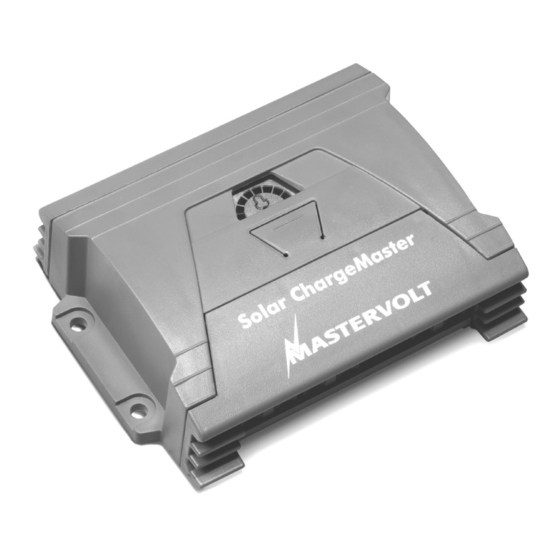

Solar ChargeMaster
MASTERVOLT
Snijdersbergweg 93,
1105 AN Amsterdam
The Netherlands
Tel.: +31-20-3422100
Fax.: +31-20-6971006
www.Mastervolt.com
SCM-N 20/ SCM-N 40
INTELLIGENT CHARGE CONTROLLER
ENGLISH:
NEDERLANDS:
DEUTSCH:
FRANÇAIS:
CASTELLANO:
ITALIANO:
PAGE 1
PAGINA 17
SEITE 33
PAGINA 49
PÁGINA 65
PÁGINA 81
v 1.2 November 07
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Mastervolt Solar ChargeMaster SCM-N 20
Summary of Contents for Mastervolt Solar ChargeMaster SCM-N 20
- Page 1 BETRIEBSANLEITUNG / MANUEL UTILISATEUR MANUAL DE UTILIZACION / INSTRUZIONI PER L’USO Solar ChargeMaster SCM-N 20/ SCM-N 40 INTELLIGENT CHARGE CONTROLLER ENGLISH: PAGE 1 NEDERLANDS: PAGINA 17 MASTERVOLT DEUTSCH: SEITE 33 Snijdersbergweg 93, FRANÇAIS: PAGINA 49 1105 AN Amsterdam CASTELLANO: PÁGINA 65...
- Page 2 The English version counts 16 pages. maintenance & secondary delivery of parts can be derived from the identification label. Guarantee specifications Mastervolt guarantees that this unit has been built according to the legally applicable standards and IP 23 Part no : 131802000 specifications.
- Page 3 Warning regarding the use of batteries. mentioned in point 2 is not considered to be Excessive battery discharge and/or high charging consistent with the intended purpose. Mastervolt is voltages can cause serious damage to batteries. Do not liable for any damage resulting from the above.
- Page 4 BEFORE YOU START 3 BEFORE YOU START Utilizing environments The Solar ChargeMaster facilitates a stand alone energy system. Typical applications of this charge regulator are: • weekend homes; • mobile applications; • street lighting applications. These categories implicate different ways to use the Solar ChargeMaster.
- Page 5 BEFORE YOU START 3.2.4 Calculating the PV capacity The PV panels have to deliver the daily energy Care for your batteries consumption (see section 3.2.1). Take into account For proper care of your batteries it is important to the irradiation and energy consumption during both keep them as fully charged as possible and to fully summer and winter periods for calculation of your charge them frequently (every 2 to 4 weeks).
- Page 6 250 mV. 4.2.2 Materials: Part Part nr. Incl. Solar Chargemaster SCM-N 20 131802000 WARNINGS! Solar Chargemaster SCM-N 40 131804000 Temperature sensor 41500900 • If the battery is connected with reverse polarity,...
- Page 7 INSTALLATION 8. If applied, connect the battery temperature Now you have successfully connected your Solar sensor (5 pins) and / or the PC Link (4 pins). ChargeMaster controller. 9. Close the terminal lid. Stick the battery sensor to the top of your battery. Connections Connections including the battery...
- Page 8 OPERATION 5 OPERATION Recommendations for use In normal operation the loads can be switched on and off by pushing the button (figure 5). See figure 9 • During installation you switched off the load. for the displays. Switching on is obtained manually with a short Special conditions are shown in the LCD screen if press of the button, see figure 9.
- Page 9 OPERATION 5.4.2 Nightlight Function Light on Dusk to Dawn Dusk to Dawn Light off mode Evening Timing Mid of night Morning Timing Light on Evening/ Morning mode Light off Number time to time after Number of hours mid of night mid of night of hours Figure 10: Nightlight function modes...
- Page 10 CONFIGURATION 6 CONFIGURATION Programming your Solar ChargeMaster When you exit the configuration menu, the controller displays the state of charge (available With a long push (2s-8s) on the button the energy) of the battery and the status of the load. programming mode is opened.
- Page 11 CONFIGURATION 6.1.4 Nightlight function (evening settings) Description Displays Settings With the nightlight function type set Nightlight function Function Setting Settings menu to the EVENING/MORNING mode, EVENING OFF you can set the EVENING timing in EVENING. Dusk to: this menu. 1HR after dusk See section 5.4.2 for details.
- Page 12 CONFIGURATION 6.1.6 Day/Night threshold Description Displays Settings In this menu, you can set the Function Setting Settings menu open circuit voltage of PV panel Day/Night threshold that the Solar ChargeMaster 1.0/ 2.0 V Solar Voltage controller should know it’s day or night.
- Page 13 CONFIGURATION 6.1.8 Setting of Serial interface Description Displays Settings For proper functioning of the PC link, Function Setting Settings menu selection of the third mode is Read in of current data. recommended. See also section 4.4.1. Default: Read in of current data. Read back of data logger PC link bidirectional communication...
- Page 14 TROUBLE SHOOTING 7 TROUBLE SHOOTING Error Description Error Display Reason Remedy condition Battery is low Load will reconnect as soon as battery is recharged. Overcurrent / Short Switch off all loads. Remove short circuit. Controller circuit of loads will switch on load automatically after max 1 minute. Loads are not Controller is thermally Check proper ventilation of controller.
- Page 15 TECHNICAL SPECIFICATIONS 8 TECHNICAL SPECIFICATIONS Technical Data Variable SCM-N-20 SCM-N-40 Nominal voltage 12 / 24 V, automatic recognition 12 / 24 V, automatic recognition Number of PV cells serial 36 or 72 cells, refer to section 3.2 36 or 72 cells, refer to section 3.2 Max solar voltage input @ Tmin 50 V 50 V...
- Page 16 Manufacturer: Mastervolt Address: Snijdersbergweg 93 1105 AN Amsterdam The Netherlands Herewith declares that: Product: Solar ChargeMaster SCM-N 20 Solar ChargeMaster SCM-N 40 Is in conformity with the directives and standards: 2006/95/EC Electrical Apparatus Low Voltage Directive 89/336/EEC Electromagnetic compatibility directive...
