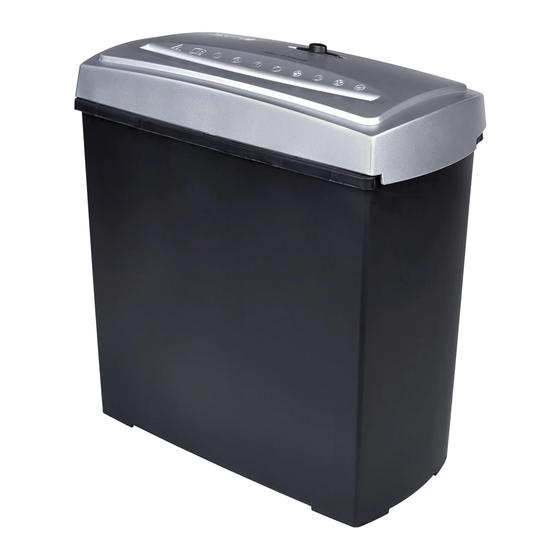

Clas Ohlson CO52 Quick Manual

Cross-cut Shredder
Art.no 18-8053 Model CO52-UK
38-1487 CO52
Please read the entire instruction manual before using the product
and save it for future reference. We reserve the right for any errors
in the text or images and any necessary changes made to technical
data. If you have any questions regarding technical problems please
contact our Customer Services.
Safety
• Place the machine as close to a wall outlet as possible.
• Always remove the plug from the wall socket before moving or
cleaning the shredder.
• Always remove the plug from the wall socket before emptying
the waste collector bin. Empty the collector bin regularly in order to
avoid jamming the machine because of the container being over full.
• Never open the casing. If you should have problems with
the shredder, contact Customer Services.
• The product is designed exclusively for domestic use.
The machine is not designed for commercial use.
• The device should be setup as close as possible to an easily
accessible wall socket.
Warning symbols
General warning symbol.
Read the instructions before use.
Keep your hands away from the feeder opening.
Keep your hair away from the feeder opening.
It may be pulled in and injure you.
Keep loose hanging objects, like clothes, ties, etc away from
the feeder opening. They may be pulled in and damaged.
Keep loose hanging jewellery away from the feeder opening.
They may be pulled in and damaged.
Remove all paper clips and staples before running them
through the shredder.
UNITED KINGDOM • Customer service tel: 020 8247 9300
postal Clas Ohlson Ltd, Aquilla House (First floor), 1 Becketts Wharf, Lower Teddington Road, Hampton Wick, Kingston Upon Thames, KT1 4ER
The shredder is designed only for shredding paper. It is not
suited for any other materials. The paper must be clean and
dry. Do not insert CDs/DVDs into the feeder opening.
This product is not a toy and must not be used by children.
Never leave the shredder unattended when in operation.
DO NOT use sprays when cleaning the shredder's interior
or exterior. DO NOT use flammable substances in the near
vicinity of the product. DO NOT use sprays directly in or in
the vicinity of the feeder opening.
The product must not be used by children. Keep hands,
long hair and loose-fitting clothing away from the feeder
slot. Unplug the product from the wall socket if it is not to
be used for a long time. The product contains moving parts
that can cause personal injury. Keep all bodily parts at a
safe distance from moving parts when it is in operation.
The product is not suitable for being used in premises
where children are present. Sharp edges. Do not touch.
Getting started
1. Place the shredder unit onto the waste container. There is a safety
lock on the underside edges of the shredder. These are depressed
when the shredder is placed correctly on the waste container.
These must be depressed in order for the shredder to work.
2. Place the waste container on an even and stable surface.
3. Connect the plug to a wall outlet with 220–240 V AC voltage rating.
Operation
The control switch has 3 settings:
• AUTO
Automatic start. When the switch is in this mode the shredder
will start automatically when the paper is placed in the feeder
opening. When the paper is fed through the machine will turn
off automatically. If it does not turn off, make sure that the waste
container is not full or that there are no paper remnants stuck in
the shredder.
• REV
Reverse function. Used to remedy a paper jam. If you notice that
the shredder is overloaded and starts to struggle or stop, you
must immediately set the control switch in REV mode. This allows
the blades to rotate backwards and the paper can be fed back
out of the feeder opening.
•
OFF
The machine is in the OFF position.
e-mail customerservice@clasohlson.co.uk internet www.clasohlson.co.uk
English
Capacity
• The shredder can process up to 5 sheets (A4, 80 g) at one time.
If you run thicker paper stock the number of sheets the shredder
can process is reduced. The maximum width of the paper should
be 22 cm (A4).
• If you want to shred smaller sheets of paper, you should feed them
in the centre of the feeder opening. Otherwise, the shredder will
not start automatically.
Avoiding overloading and jamming
The shredder is equipped with overload protection. When activated
the shredder shuts off when, for example, trying to feed more
than 5 sheets in at a time.
To reset the shredder after the overload protection has tripped:
1. Remove the plug from the wall socket and let the shredder cool
for 30 min. Clear the blades of any paper remnants.
2. Connect the plug to a wall socket and set the control switch to
REV mode. Excess paper remnants will exit through the feeder
opening. Remove the plug from the wall outlet and remove any
paper remnants from the blades.
3. Set the switch to AUTO mode.
Care and Maintenance
• Always unplug the machine from the wall socket before cleaning.
• The blades need no maintenance and do not need lubrication.
• Clear the blades from paper remnants using a sharp object.
• Dry the exterior and container using a dry cloth.
• Never use flammable cleaning agents.
• Empty the waste container regularly. A full waste container can
contribute to a diminished functioning of the shredder.
Disposal
Follow local ordinances when disposing of this product.
If you are unsure of how to dispose of this product,
please contact your municipality.
Specifications
Cross-cut
Type
Cross-cut size Approx. 4 × 40 mm
Capacity 5 sheets (80 g) simultaneously
Feeder width 220 mm
Shredder size Approx. 300 × 185 × 305 mm
Power supply 220–240 V AC, 50 Hz, 0.8 A
Power 184 W
