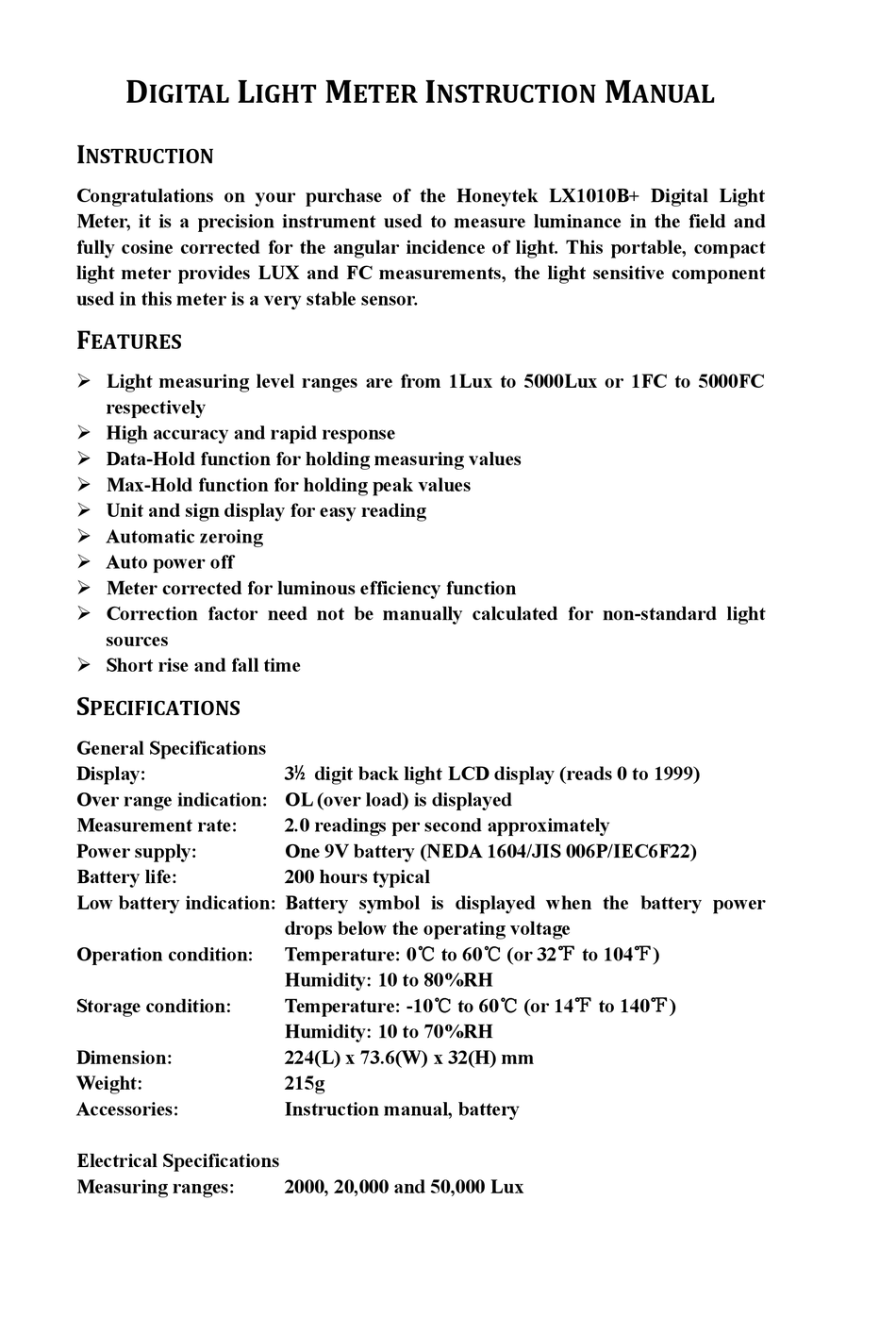

Honeytek LX1010B+ Instruction Manual

D
IGITAL
I
NSTRUCTION
Congratulations on your purchase of the Honeytek LX1010B+ Digital Light
Meter, it is a precision instrument used to measure luminance in the field and
fully cosine corrected for the angular incidence of light. This portable, compact
light meter provides LUX and FC measurements, the light sensitive component
used in this meter is a very stable sensor.
F
EATURES
 Light measuring level ranges are from 1Lux to 5000Lux or 1FC to 5000FC
respectively
 High accuracy and rapid response
 Data-Hold function for holding measuring values
 Max-Hold function for holding peak values
 Unit and sign display for easy reading
 Automatic zeroing
 Auto power off
 Meter corrected for luminous efficiency function
 Correction factor need not be manually calculated for non-standard light
sources
 Short rise and fall time
S
PECIFICATIONS
General Specifications
Display:
Over range indication: OL (over load) is displayed
Measurement rate:
Power supply:
Battery life:
Low battery indication: Battery symbol is displayed when the battery power
Operation condition:
Storage condition:
Dimension:
Weight:
Accessories:
Electrical Specifications
Measuring ranges:
L M
IGHT ETER
3½ digit back light LCD display (reads 0 to 1999)
2.0 readings per second approximately
One 9V battery (NEDA 1604/JIS 006P/IEC6F22)
200 hours typical
drops below the operating voltage
Temperature: 0℃ to 60℃ (or 32℉ to 104℉)
Humidity: 10 to 80%RH
Temperature: -10℃ to 60℃ (or 14℉ to 140℉)
Humidity: 10 to 70%RH
224(L) x 73.6(W) x 32(H) mm
215g
Instruction manual, battery
2000, 20,000 and 50,000 Lux
