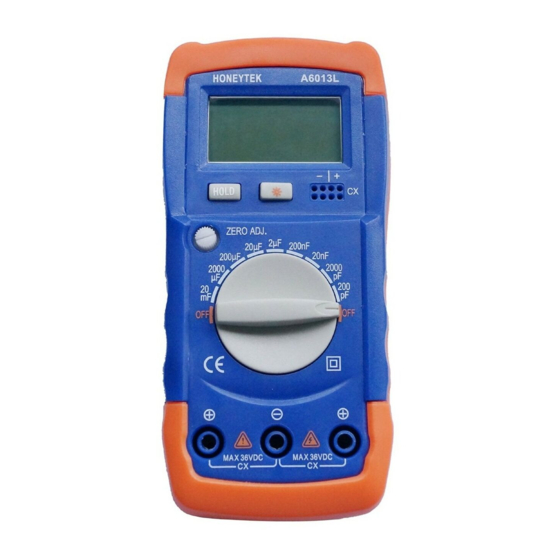

A6013L
DIGITAL C METER OPERATION MANUAL
1. FEATURES
Easy and correct readout.
High measuring accuracy.
Measurements are possible even under a strong
magnetic field.
LSI-circuit provides high reliability and durability.
Input overload protection is provided.
LCD display for low power consumption and clear
readout even in bright ambient light conditions.
In-line pushbuttons allow one hand operation.
Light-weight and compact construction for easy
operation.
Low battery condition is indicated on the LCD
display.

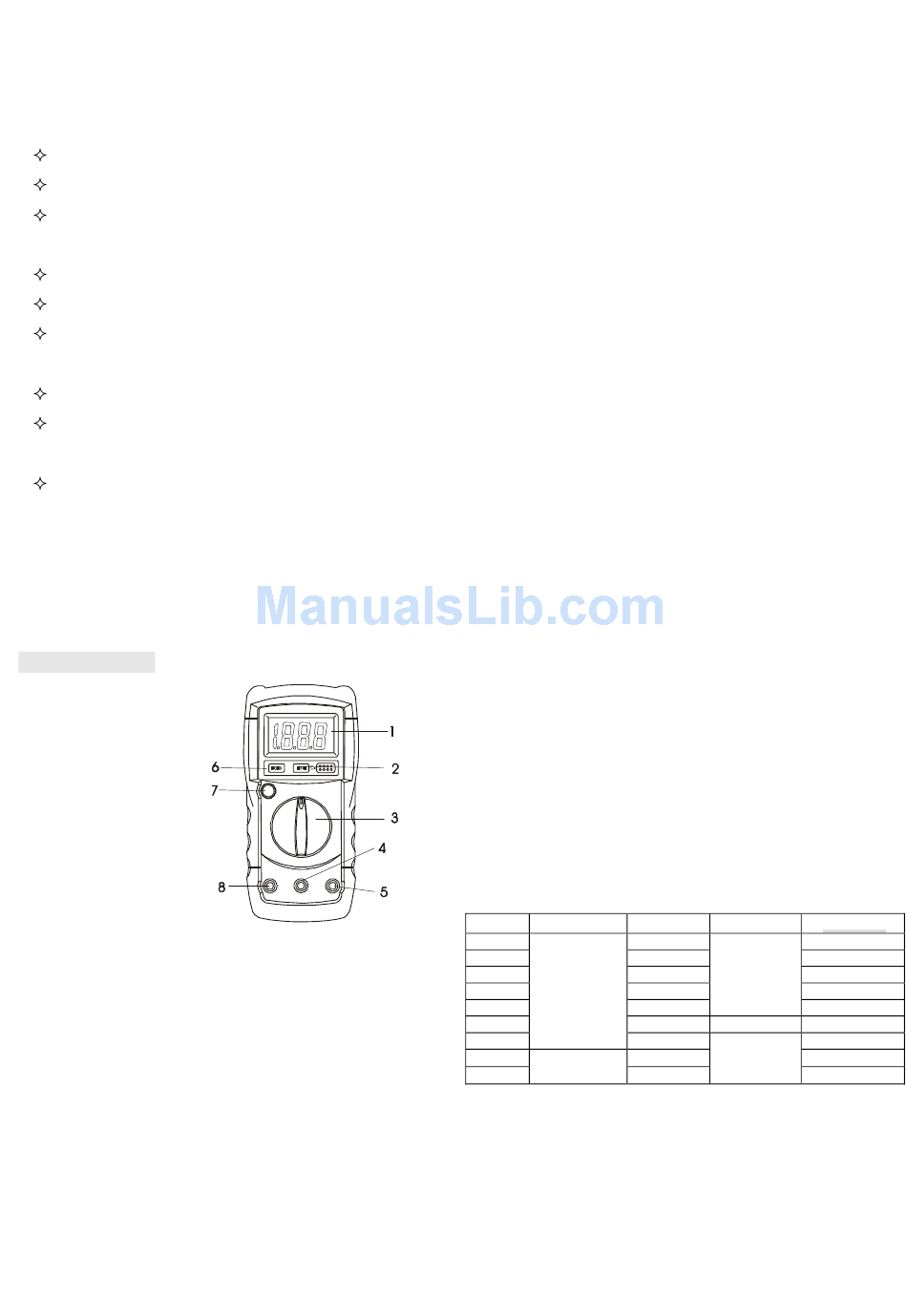

2. Panel Layout
① LCD Display: 3½
digits, character
15mm high
② Back Light Button
Switch: Press this
button to switch on
back light if the dark
circumstance light
makes the reading
difficulty when measuring, the light will be
automatically turned off in 5 seconds. Press again to
switch it on again. If the battery is in weak power, the
light will be dimmed.
③ Rotary Switch: use this switch to select ranges
④ "COM"Input Jack
"+" Input Jack b
⑤
⑥ Data-hold Switch (HOLD)
a Zero ADJ.
2. SPECIFICATIONS
2-1.GENERAL SPECIFICATIONS
Display
:LCD (Liquid Crystal Display) Max
Indication 1999.
LCD Backlight and data hold.
Measurement:C (Capacitance)
Range
:single 9 position, whole range value (from
Zero Adjustment :Manual (range:±20pF)
Calibrate Adjustment :Have two internal adjustment. One
Over-input :Display shows "1".
Sampling Time :3/second
Operating Temp :0℃ to 40℃.
Operating Humidity :80% MAX.R.H.
Power Supply:Single, standard 9 volt battery. NEDA
1604IEC6F22
Battery Life :Alkaline type approx.: 200 hours.
Zinc-Carbon type approx.: 100 hours
Typical consumption current :3~4mA (200pF-200uF)
Standard Accessories: Test alligator clips (red &
Instruction manual.....................1 pc.
2-2. ELECTRICAL SPECIFICATION
Accuracy is ±(percentage of reading + number of digit)
at 23±5℃,<80%RH.
Range
Accuracy
Resolution
200pF
2nF
0.001nF
20nF
±(0.5%+1d)
200nF
2uF
0.001uF
20uF
200uF
±(2.0%+2d)
2000uF
±(4.0%+10d)
20mF
0.01mF
-12
pF= Pico Farad(10
-6
micro Farad(10
F)
Zero Error: ±20pF
Excitative voltage: Max.2.8Vrms
Overload Rating: Protection by a 0.2A/250V fuse.
0.1pF to 20000uF)
is panel Zero adjustment.
black)...1 pair.
Test
Frequency
0.1pF
0.01nF
820Hz
0.1nF
0.01uF
82Hz
0.1uF
1uF
8.2Hz
F )，nF= nan Farad(10
Max
indication
199.9pF
1.999nF
19.99nF
199.9nF
1.999uF
19.99uF
199.9uF
1999uF
19.99mF
-9
F). uF=
