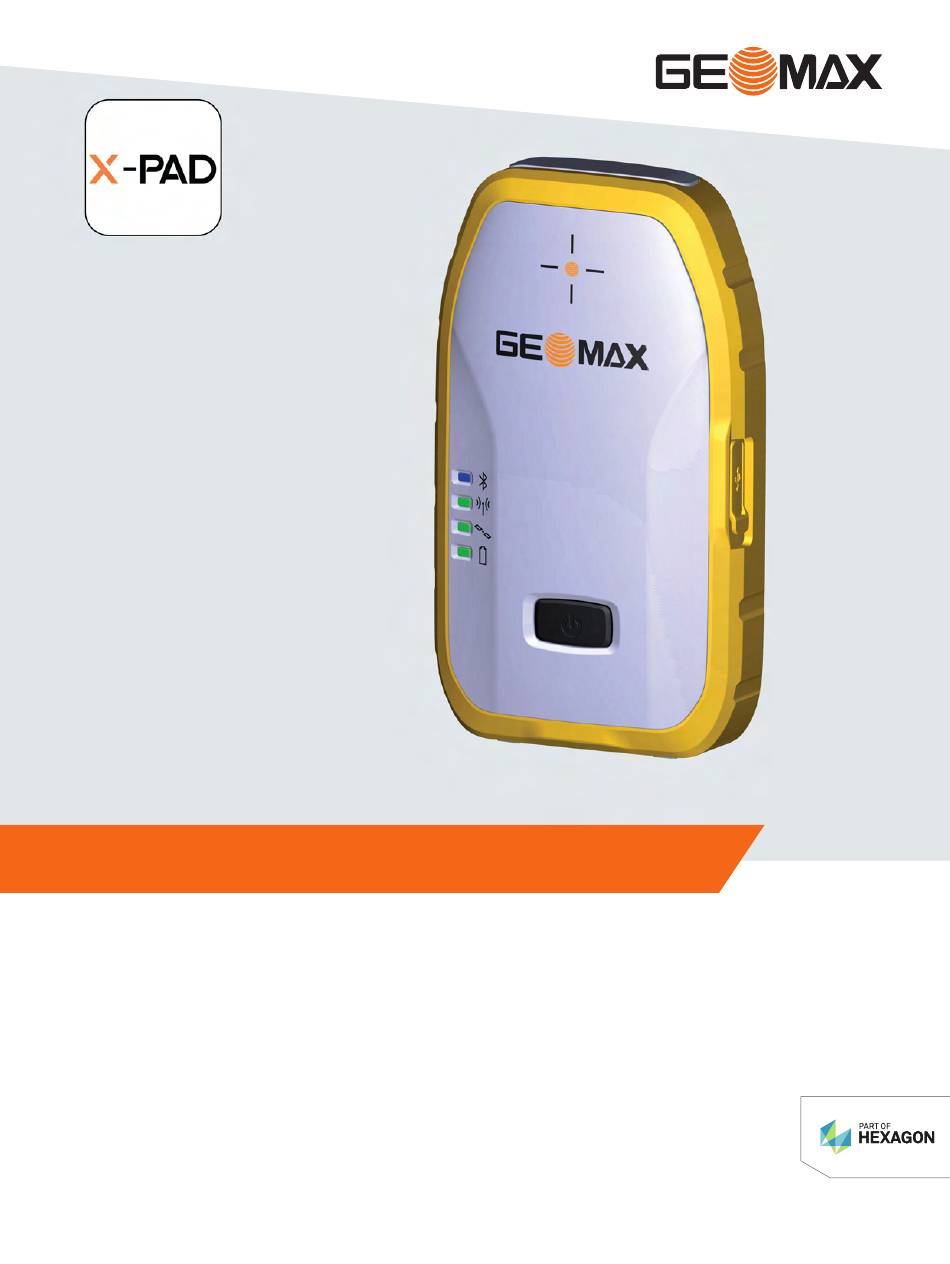

- Page 1 User Manual GeoMax Zenith06 Smart Antenna English Version 1.0...
- Page 2 Updated versions are available for download at the following Internet address: https://geomax-positioning.com/partner-area Product identification The model and serial number of your product are indicated on the type plate. Always refer to this information when you need to contact your agency or GeoMax authorised service centre. Trademarks •...
-
Page 3: Table Of Contents
Phase Centre of the Zenith06 Smart Antenna Settings of the Zenith06 Smart Antenna Care and Transport Transport Storage Cleaning and Drying Technical Data Technical Data Conformity to National Regulations Dangerous Goods Regulations GeoMax Zenith06 smart antenna Bundle Standard Configuration Accessories Software Licence Agreement/Warranty Table of Contents... -
Page 4: Safety Directions
Safety Directions General Introduction Description The following directions enable the person responsible for the product, and the person who actually uses the equipment, to anticipate and avoid operational hazards. The person responsible for the product must ensure that all users understand these directions and adhere to them. -
Page 5: Limits Of Use
Responsibilities Manufacturer of the GeoMax AG, CH-9443 Widnau, hereinafter referred to as GeoMax, is responsible for supplying product the product, including the user manual and original accessories, in a safe condition. Person responsible for the... - Page 6 DANGER Risk of electrocution Because of the risk of electrocution, it is dangerous to use poles, levelling staffs and extensions in the vicinity of electrical installations such as power cables or electrical railways. Precautions: ▶ Keep at a safe distance from electrical installations. If it is essential to work in this envir- onment, first contact the safety authorities responsible for the electrical installations and follow their instructions.
- Page 7 Risk of injuries to users and equipment destruction due to lack of repair knowledge. Precautions: ▶ Only authorised GeoMax Service Centres are entitled to repair these products. For the AC/DC power supply: WARNING Electric shock due to missing ground connection If unit is not connected to ground, death or serious injury can occur.
- Page 8 Before any cleaning procedure, ensure that the instrument is switched off and the battery has been removed. CAUTION Unused connectors must be protected using the attached dust cap. NOTICE Rooting your Android device will void your right for any warranty services and support by GeoMax! Safety Directions...
-
Page 9: Labelling
Labelling Labelling GeoMax Zenith06 smart antenna Model: Zenith06 Smart Antenna Art. No.: 948918 Model: Zenith06 Smart Antenna Art. No.: 948918 Input: Input: 2A DC 2A DC Battery: 3.85V /6120mAh Battery: /23.562Wh 3.85V /6120mAh GeoMax AG Espenstrasse 135 /23.562Wh CH-9443 Widnau,Switzerland... -
Page 10: Description Of The System

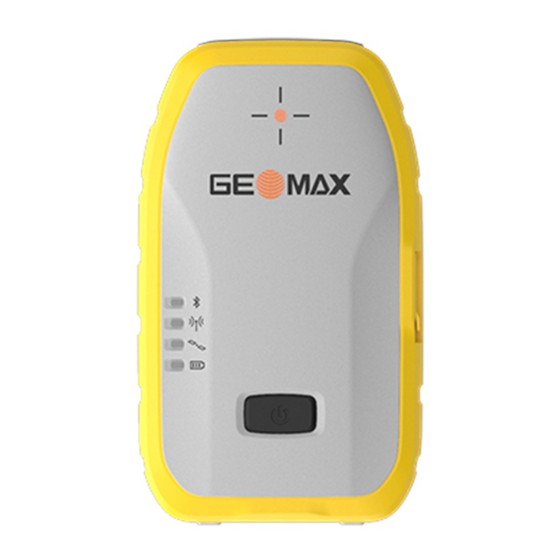

Description of the System General Information Design The Zenith06 smart antenna: has an integrated helix antenna and Bluetooth capability. • supports four satellite systems: GPS, GLONASS, BeiDou, Galileo. • supports access to external differential signals to get typically < 2 cm (2D) positioning •... -
Page 11: Accessories
Accessories Operation with pole GeoMax Zenith06 smart antenna Pole mount Carbon pole 22837_001 Description of the System... -
Page 12: Operation
Operation Power On/Off, Charging Description Battery LED 22838_001 ON/OFF button Function Description Power on/off Turn on: Press and hold the ON/OFF button until the battery LED is green and the device beeps. ☞ The device starts booting after the first beep. Once it is booted up, the device beeps a second time. -
Page 13: Phase Centre Of The Zenith06 Smart Antenna
Phase Centre of the Zenith06 Smart Antenna Phase centre The phase centre of the Zenith06 smart antenna location is at the dot near the top of the device. Pole mode In pole mode, the offset from the phase centre to the top of the pole, including the pole adapter mount, is automatically accounted for. -
Page 14: Care And Transport
For products for which no container is available use the original packaging or its equivalent. Shipping When transporting the product by rail, air or sea, always use the complete original GeoMax pack- aging, container and cardboard box, or its equivalent, to protect against shock and vibration. -
Page 15: Cleaning And Drying
Cleaning and Drying Product and accessories Use only a clean, soft, lint-free cloth for cleaning. If necessary, moisten the cloth with water • or pure alcohol. Do not use other liquids; these may attack the polymer components. Damp products Dry the product, the container, the foam inserts and the accessories at a temperature not greater than 40 °C/104 °F and clean them. -
Page 16: Technical Data
Technical Data Technical Data Instrument Type Description Satellites tracked GPS L1C/A, L2C GLONASS L1OF, L2OF Galileo E1B/C, E5b BeiDou B1I, B2I QZSS L1C/A, L2C Channels Update rate Up to 10 Hz Re-aquisition < 2 s RTK initialisation Typically > 120 s Cold start time Typically <... - Page 17 30.6 mm Weight Description Value Weight <340 g Connector 1 USB Type-C connector, supports USB 2.0 Mounting Pole GeoMax Zenith06 smart antenna mounted on pole adapter/pole System Processor Qualcomm SnapDragon 1 GB LPDDR3 Storage 8 GB eMMC Communication Bluetooth BT4.2 LE...
-
Page 18: Conformity To National Regulations
(10-150 Hz, 2 g ±0.15 mm/ 20 cycles) Conformity to National Regulations Conformity to national Hereby, GeoMax AG declares that the radio equipment type Zenith06 smart antenna is • regulations in compliance with Directive 2014/53/EU and other applicable European Directives. -
Page 19: Geomax Zenith06 Smart Antenna Bundle
Arm/Belt pouch • The pole is a standard accessory for the GeoMax Zenith06 smart antenna. To use the GeoMax Zenith06 smart antenna on a pole, the appropriate adapter is required. This mounting allows customers to use the instrument vertically with precise and stable support. -
Page 20: Software Licence Agreement/Warranty
GeoMax. Such software is protected by copyright and other laws and its use is defined and regulated by the GeoMax Software Licence Agreement, which covers aspects such as, but not limited to, Scope of the Licence, Warranty, Intellectual Property Rights, Limitation of Liability, Exclusion of other Assurances, Governing Law and Place of Jurisdiction. - Page 21 949623-1.0.1en Original text (949623-1.0.1en) © 2021 GeoMax AG is part of Hexagon AB. All rights reserved. GeoMax AG Espenstrasse 135 9443 Widnau Switzerland geomax-positioning.com...
- Page 22 FCC warning statements: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 23 IC warning statements: -English Warning Statement: RSS-GEN ISSUE 5, 8.4 User manual notice This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device.
