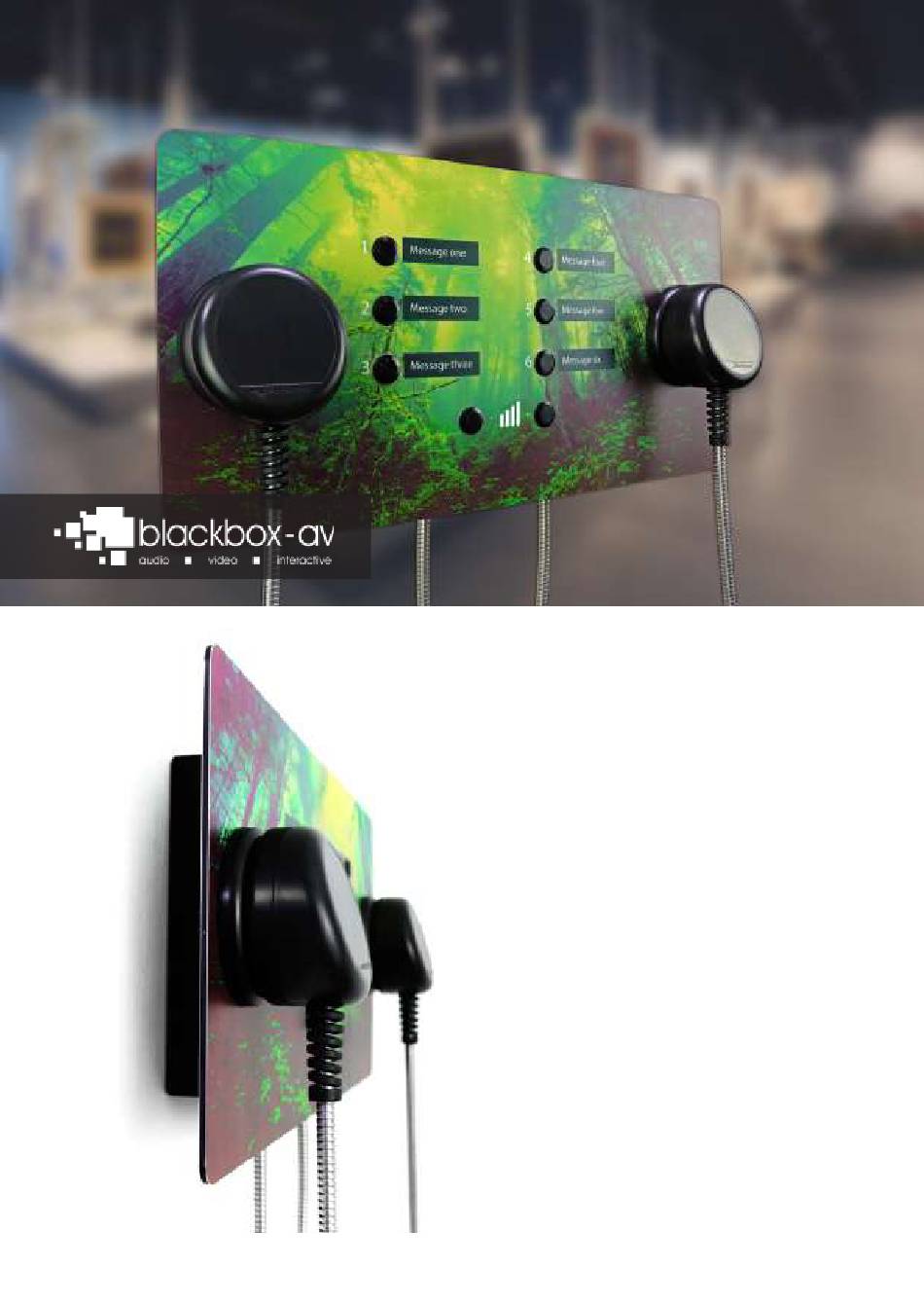

- Page 1 Audio Frame Manual...
-
Page 2: Safety Guide
Safety Guide Read this guide carefully before using or installing the product. Preventing accidents and protecting the Preventing damage to the product and health of the user of the Audio Frame malfunctions • Ensure the audio levels are set so ear •... - Page 3 Power Cable Overview Audio Output Volume Buttons The Audio Frame will either be supplied with Adjust audio levels with 2 push buttons. 1/2 x Heavy Duty Handsets or 2 x 8Ω 5w Speakers installed within the rear casing. MicroSD Card Port...
- Page 4 MacOS, please visit the support page on www.interpretationshop.co.uk/support Audio Content The Audio Frame can play up to 99 .mp3 tracks depending on the Play Mode (see next page for further information) you select. Tracks are stored in the root of your MicroSD Card.
-
Page 5: Configuration Modes
Configuration Modes To change a mode you must use the configuration switches found inside of the Audio Frame, more information on this can be found on the following page. As standard the Audio Frame will playback your tracks in an interruptible manner, with all configuration switches in the upward position. Please see diagram below for more clarification;... -
Page 6: Changing Modes
It’ll look like the diagram below; Please refer to the previous page and switch to a new mode. Mounting the Audio Frame Mount the backplate to a wall using the provided VESA holes. The plate comes with 3 different sizes to suit your installation/fixing area. -
Page 7: Technical Information
Technical Information Unit Weight 55.10 x 441 x 223mm Unit Dimensions DC12V 2A Power Input 1 or 2 Handsets / or 2 built in Speakers Audio Output Up to 10 Buttons (as well as optional Button Inputs volume controls) Playable Format Audio: .MP3 Storage MicroSD Card (128MB Supplied)
