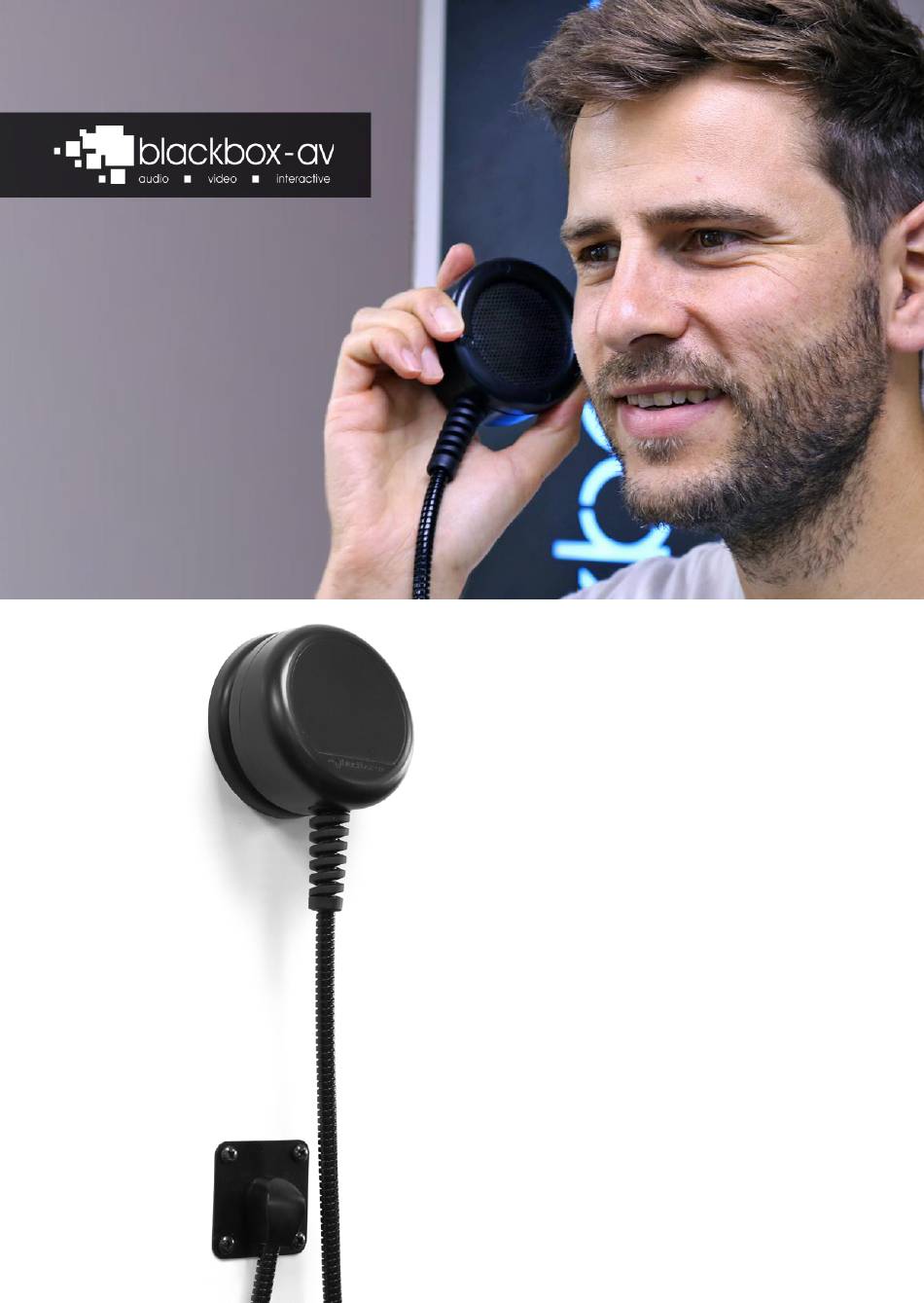

- Page 1 Heavy Duty Handset Manual...
- Page 2 Without Dimples With Dimples Standard AutoPlay Note: Please do not remove serial number label from 3.5mm Jack Cable Warranty Blackbox-av provides a 12 month warranty with this product. For further information or advice please contact info@blackboxav.co.uk www.interpretationshop.co.uk...
- Page 3 Your new Handset In the Box: Heavy Duty Handset Magnetic Hanger Knuckle Mounting Plate Trigger & Splitter Cable (only supplied with AutoPlay version) Wood Screws x2, Machine Screws x2 (for fitting magnetic hanger) Customised Branding Labels (if purchased) Manual Heavy Duty Handset Constructed from high grade and impact resistant plastics.
- Page 4 AutoPlay Version AutoPlay Functionality When used with a compatible device the AutoPlay version of the handset allows the triggering of the playback unit upon pickup. When the handset is lifted from the magnetic hanger, a sensor triggers your content. When returned to the hanger, the content will stop.
- Page 5 Installation The Hanger To mount the hanger, use the supplied countersunk wood or machine screws. Ensure Screws (supplied) that the surface to which the hanger is attached is perfectly flat to avoid flexing of the product. Magnetic Hanger The Knuckle & Mounting Plate The knuckle plate can be mounted to a structure with a suitable hole for the knuckle nut to fit Mounting Screws...
- Page 6 Technical Information Unpackaged Weight 425g Packaged Weight 520g Package Dimensions 180 x 160 x 80mm Nominal Impedance 100Ω Frequency Range 50Hz - 20KHz Sound Pressure Level 123 dB Input Power (W) Rated: 30mW - Max: 50mW Input Power (V) Rated: 1.7V - Max: 2.25V Armoured Cable Length 1350mm Trigger Cable Length...
- Page 7 Technical Drawings (not to scale) 56.30 Note: 12mm is maximum depth of panel. Swivel Knuckle Magnetic Hanger Knuckle Mounting Plate 4.20 Side View Rear View Wall Cut-Out Safety Guide Read this guide carefully before using or installing the product. Preventing accidents and protecting the Preventing damage to the product and health to the user of the handset.
