ASSEMBLE
A81.49
Installation Instructions
• Tapware to be installed by a licenced plumber in accordance with AS/NZS 3500:2003
• Recommended working water pressure 150 - 500kPa
• Maximum water temperature is 65 deg C
• After completing the installation check function of tapware and ensure no water leaks.

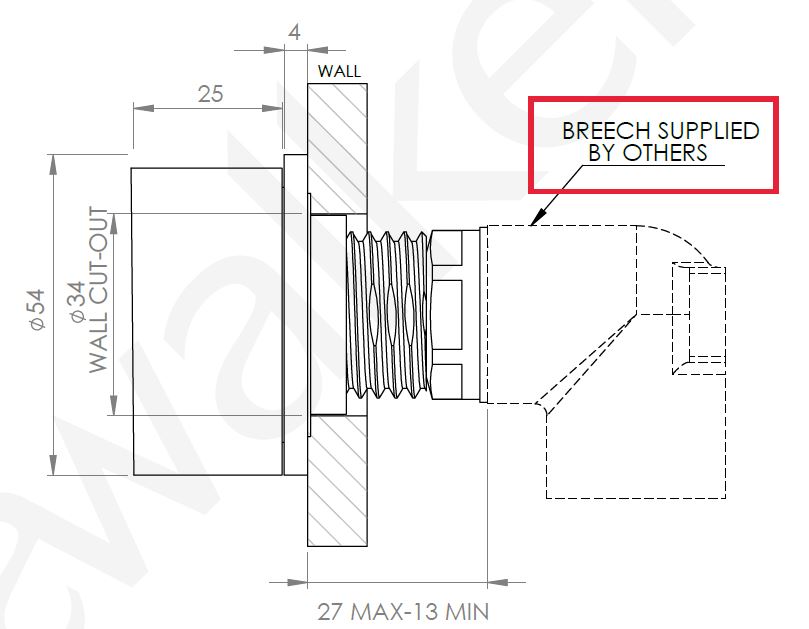

Install the wall breech (not supplied) to a secure nogging at the correct depth as shown in the drawing below.
Ensure the breech is square and parallel between the wall studs.
To allow the tapware to fit correctly the thickness of the finished wall surface must be calculated prior to
'rough-in'.
4
WALL
25
BREECH SUPPLIED
BY OTHERS
27 MAX-13 MIN
IMPORTANT : Front face of inwall body to finished
wall face must be minimum 13mm to maximum 27mm
NOTE : Seat or Breech Body extensions are NOT recommended in conjunction with this Tapware. Failure
to adhere will void warranty.
