Woodhaven 4512S Quick Start Manual

Identify and verify that you have all the parts listed. Read
the instructions at least once, familiarizing yourself with the
parts and assembly options before beginning assembly.
There are two ways to assemble the stop, depending on whether
you want the stop arm on the left or right side of the stop body. For best
support mount the stop arm so it's between the stop body and the work.
Mount the stop arm to the stop block so that
the rounded edge of the stop block (opposite from
the T-slot side) faces the front of the track.

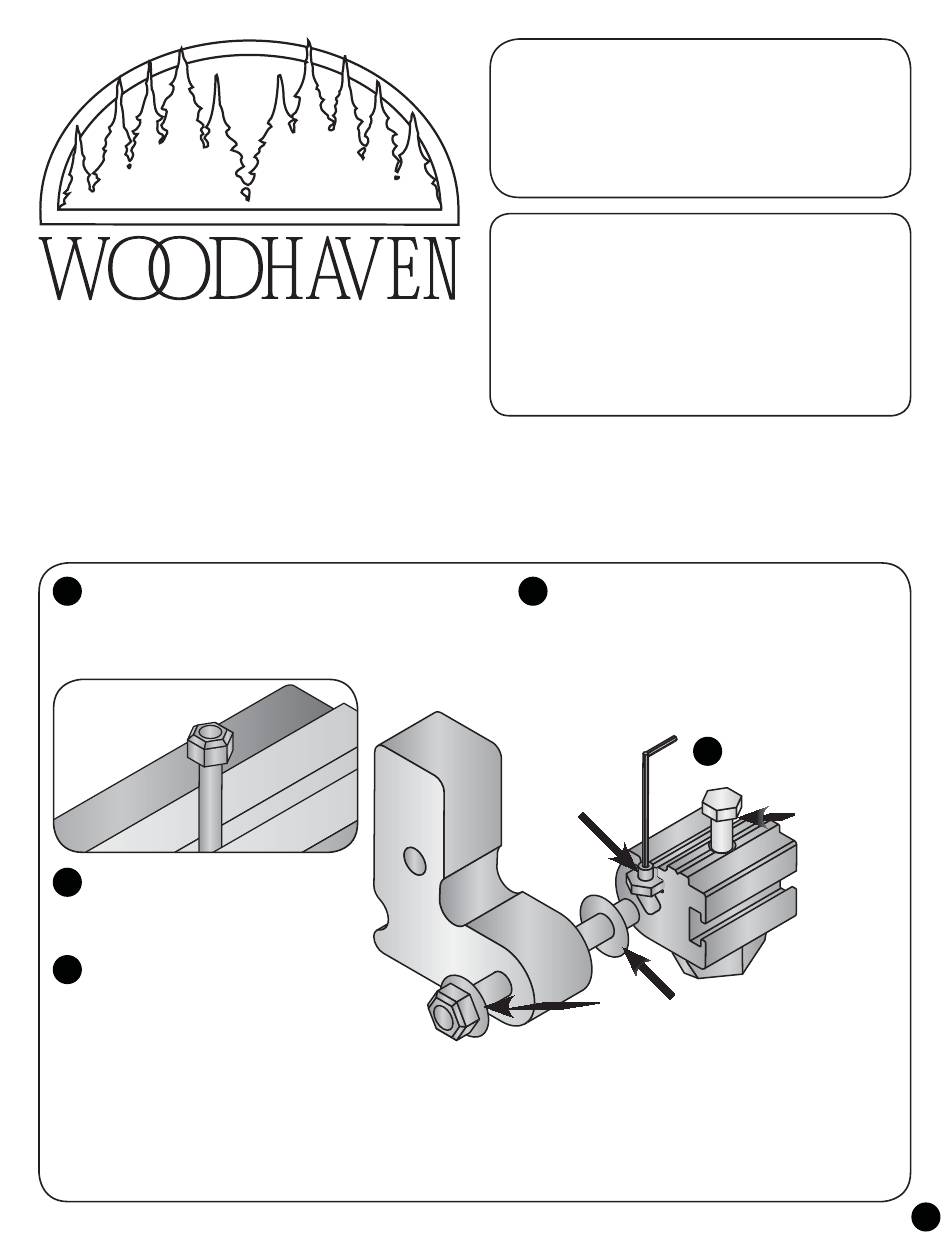

ASSEMBLY

A
Clamp the smooth portion of the
pivot pin (4519P) in a vise with non-
marring jaws and screw the locknut (NUT010A)
on the threaded end of the pivot pin until
the nut is flush with the end of the pin.
NUT010A
fl ush with end
of 4519P
Insert the 1/4" steel washer (WS001)
B
on the pivot pin (against the nut),
followed by the stop arm (4512A)
and the 1/4" nylon washer (WN001).
Start the 10-24 set screw (MA002)
C
in one of the 10-24 nuts (NUT004).
Slide the nut/set screw into the T-slot
indicated in the stop block (4519B).
Stop Arm:
4519P Pivot Pin
NUT010A
on 4519P
4512S Flip Stop
Please Read Carefully!
Part Desc . . . . . Qty
4512A 3/4" Arm . . . . . . . . . . . 1
4519B Stop Block . . . . . . . . . . 1
4519P Pivot Pin . . . . . . . . . . . 1
4512SF MDF Block . . . . . . . . . . 1
MF020 1-1/4" screw . . . . . . . . . 1
5760B Oval nut . . . . . . . . . . . . 1
Insert the smooth portion of the pivot pin (4519P)
D
in the diamond/square shaped slot in the stop block
and, using the 3/32" allen wrench (5786) tighten the
set screw on the pivot pin, locking the pivot pin in the stop
body. Make sure the set screw nut is not rubbing against
4512A the nylon washer on the pivot pin. Adjust the locknut on
the pivot pin to get the desired amount of tension on the
stop arm so it pivots as hard or as easy as you like.
Allen
Wrench
NUT004
& MA002
WS001

Parts List

Part Desc . . . . . Qty
5540 Knob . . . . . . . . . . . . . . . 1
HB050 1-1/2" bolt . . . . . . . . . . 1
WS001 1/4" Steel Washer . . . . 1
WN001 1/4" Nylon Washer . . 1
NUT004 10-24 Nut . . . . . . . . . . 1
NUT010A Locknut . . . . . . . . . . . . 1
MA002 10-24 Set Screw . . . . . 1
5786 3/32" Allen Wrench . 1
Starting from the ribbed
E
side of the stop body,
insert the 1-1/2" hex bolt
(HB050) thru the cross
hole in the stop
body and attach
the knob (5540)
T-slot face of
5540
WN001
to the end of
the bolt.
Stop Block
