Woodhaven 8660 Owner's Manual

BEFORE BEGINNING
Identify and verify that you have all the parts listed.
Read thru the instructions at least once, familiarizing
yourself with the parts and their use before proceeding. You'll
need a #2 & #3 Phillips screwdriver for assembly.
The 8660 SOSS Hinge Jig is designed to work with a 5/8"
bushing & locknut (our PN 5030K) and a 3/8" upcut spiral bit (our PN
15406). If you have your own 3/4" bushing, make sure the nose isn't
over 3/8" long. You'll need a plunge router to cut the hinge mortises.
The quality of the plunge mechanism can effect the size of the mortise,
resulting in a poor fit if the plunge mechanism has excessive slop.
ASSEMBLY

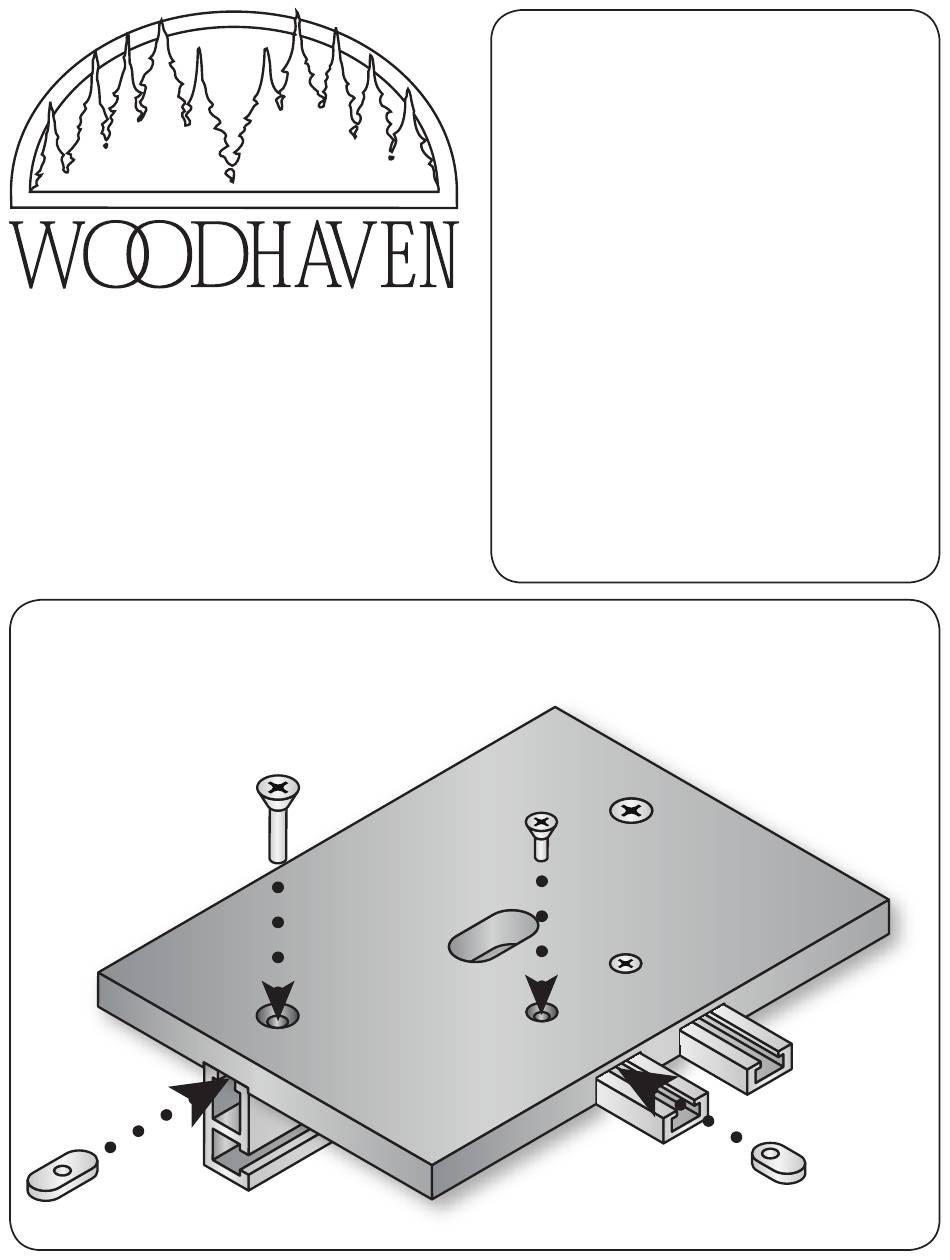

Insert the two 1/4-20 x 3/4" flat head screws (MF010)
thru the larger countersunk holes in the SOSS Hinge Jig
(8660B). Start a 1/4-20 oval nut (5760B - flat side first) on the
end of each screw. Slide the 12" Double Track (4012) on to
the oval nuts and in the groove in the underside of the Hinge
Jig until centered end-to-end, then tighten the screws.
Insert the two 10-24 x 5/16"
flat head screws (MF001) thru the
remaining two countersunk holes
in the Hinge Jig and start a 10-24
oval nut (5750B - raised side first)
on the end of each screw.
5760B x2
MF010 x2
0 8
4 0
SOSS 100 Hinge Jig
Owners Manual
Please Read Carefully!
Parts List:
Please identify and verify that you have all of the parts
listed below prior to assembly.
Part Description . . . . . . . . . . . Quantity
8660B Hinge Jig for SOSS 100 . . . . . . . . . . . . . . . . . . . 1
4008 8" Double Track . . . . . . . . . . . . . . . . . . . . . . . . . 1
MF010 1/4-20 x 3/4" flat head screw . . . . . . . . . . . . . 2
5760B 1/4-20 oval nut . . . . . . . . . . . . . . . . . . . . . . . . . 2
8660T 2-7/8" One Track . . . . . . . . . . . . . . . . . . . . . . . . 2
MF001 10-24 x 5/16" flat head screw . . . . . . . . . . . . . 2
5750B 10-24 oval nut . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Slide a 2-7/8" One Track (8660T) on to each oval
nut and in to the grooves in the underside of the Hinge Jig
until covering the oval nut, then tighten each screw.
MF001 x2
