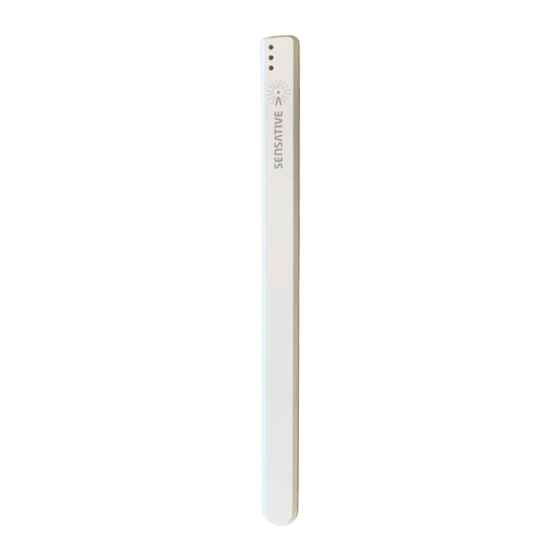

User Manual
Strips MS-H Article #
1302002
Strips MS-WL Article #
1301002
Hardware Description.......................................................................... 1
Features and Description.....................................................................2
Joining Strips............................................................................................3
Configuring Strips...................................................................................4-6
User Commands.....................................................................................7
Installation Instructions........................................................................8
Mounting Magnets.................................................................................9
Technical Information...........................................................................10
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Sensative LORAWAN Strips MS-H
Summary of Contents for Sensative LORAWAN Strips MS-H
-
Page 1: Table Of Contents
User Manual Strips MS-H Article # 1302002 Strips MS-WL Article # 1301002 Hardware Description................1 Features and Description..............2 Joining Strips....................3 Configuring Strips...................4-6 User Commands..................7 Installation Instructions................8 Mounting Magnets.................9 Technical Information................10... -
Page 2: Hardware Description
User Manual Strips MS-H Article # 1302002 Strips MS-WL Article # 1301002 Hardware Description Magnet sensor2 (For user commands) Battery Antenna Magnet Sensor1A Areas for the capacitive sensor Ambient light LoRa Transceiver sensor used for waterdetection Magnet Sensor1B Temp & humidity sensor Processor... - Page 3 User Manual Strips MS-H Article # 1302002 Strips MS-WL Article # 1301002 Multi-sensor - Measures ambient light (LUX) - Measures temperature and average temperature - Magnetic contact sensor Common Features - Easy Installation - Long-range - Up to ten year battery life - Compatible with LoRaWAN specification 1.0.3 MS-H MS-WL...
-
Page 4: Joining Strips
(Magnet sensor 2) of the Strip 3 times ( 3 green LED blinks at the Sensative logo ). This will send a join request to the server. (See figure A) - Page 5 Sensor Configuration After you have joined the device to the network, you are ready to configure the device towards your specification using our down-link generator at : www.sensative.com/loraconfig How to use the down-link generator : Step 1: Clink on the page titled "Enable Reports" and find the alarms or reports you wish...
- Page 6 User Manual Strips MS-H Article # 1302002 Strips MS-WL Article # 1301002 Step 2: Under "Related Configurations" click the configuration setting you wish to edit (non edited configurations will use default values that are described in the configuration description) Step 3: Review the description and enter the new value if you wish to change it from the default setting.
- Page 7 User Manual Strips MS-H Article # 1302002 Strips MS-WL Article # 1301002 Step 4: You may add/edit as many configuration and settings as you wish, once you have finished adding your settings, click the "Summarize and generate payload" button. Step 5: Review the configurations and reports that were edited, remove any if necessary.
-
Page 8: User Commands
User commands 1. Sending open frame Move the magnet to the rounded edge 3 times ( see 3 green LED blinks at Sensative logo ) 1 short blink means the frame was sent (success) 5 red means there was no acknowledgment from the gateway 2. -
Page 9: Installation Instructions
User Manual Strips MS-H Article # 1302002 Strips MS-WL Article # 1301002 Installation instructions To mount MS-WL to base plate for water Optional mounting plate leak detection: instructions Mount Strips on "Strips side" of the mounting plate... - Page 10 User Manual Strips MS-H Article # 1302002 Strips MS-WL Article # 1301002 How to mount magnets for door/window set up. When mounting the magnets, align magnets in any of these positions at the square edge of the Strip, with no more than 5mm space in between.
-
Page 11: Technical Information
User Manual Strips MS-H Article # 1302002 Strips MS-WL Article # 1301002 Technical Information Product Product Strips LoRa MS-LW sensor Strips LoRa MS-H Sensor Features Magnet sensor Features LED indication LED indication Temperature +/- 0.25 degree C accuracy Temperature sensor (+/- 0.40°C) Ambient Light 1-64000 LUX Humidity sensor (+/- 3% RH) Flooding alert... - Page 12 PRODUCT /WARRANTY/WARRANTY PERIOD/DEFECT: The warranty shall not apply to problems or damages resulting from or related Sensative AB (”Company”) warrants to the original end-user purchaser (“Purchaser”) that Strips (“Product”) will be free from substantial defects in material and workmanship i) mechanical and/or transport problems...
