Summary of Contents for commercial cool CCB51GB

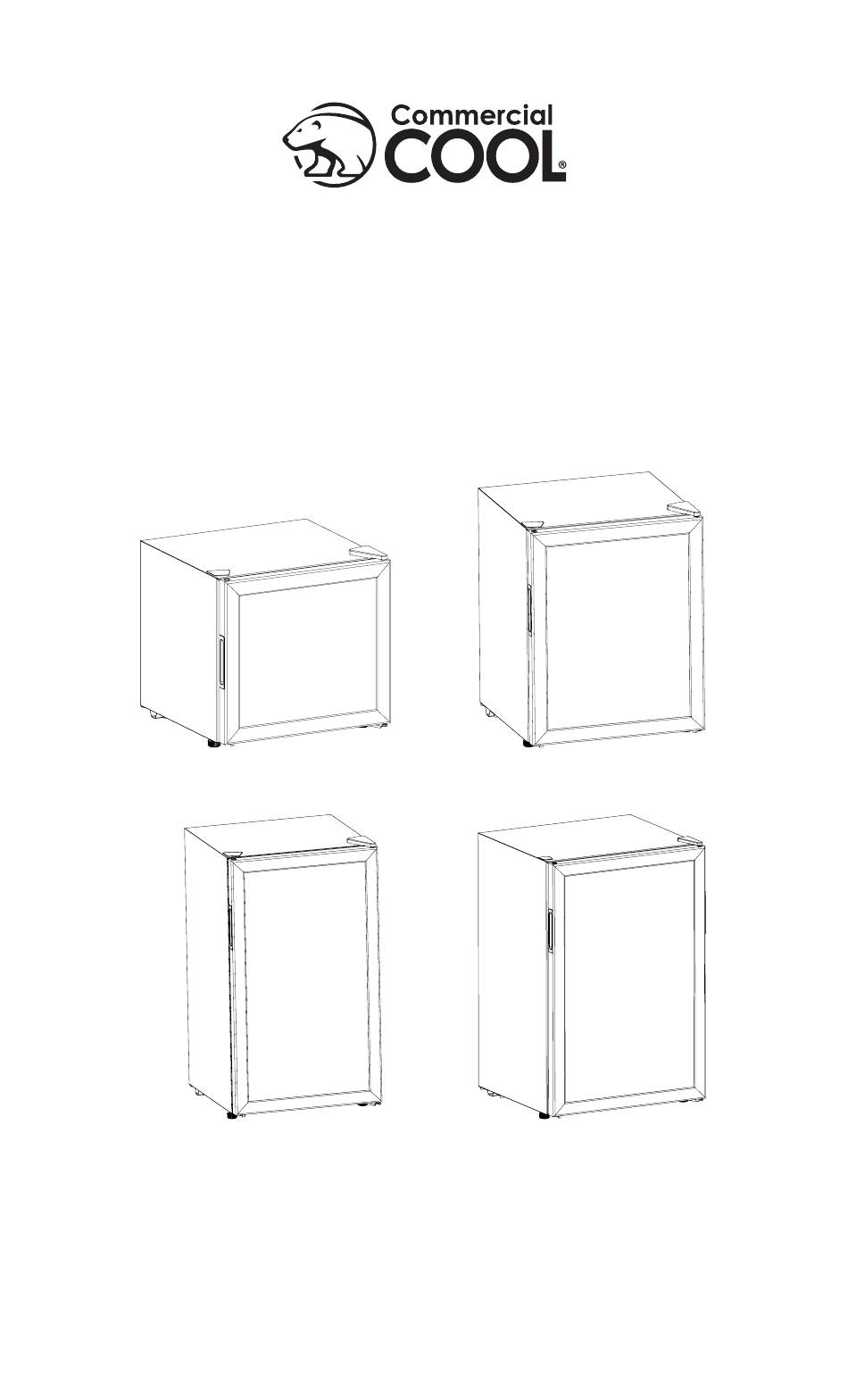

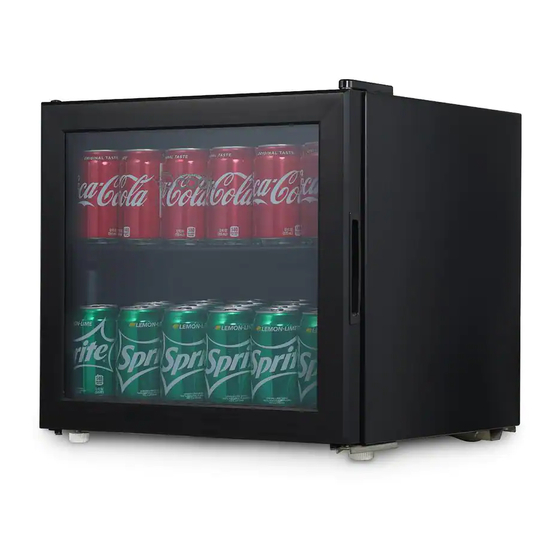

- Page 1 Beverage Cooler User Manual MODEL CCB51GB, CCB81GB, CCB109GB, CCB138GB...
-
Page 2: Table Of Contents
Before You Call For Service ..............................16 Customer Service..................................16 Troubleshooting..................................17 Limited Warranty ..................................18 PRODUCT REGISTRATION Thank you for purchasing our COMMERCIAL COOL product. Model number This easy-to-use manual will guide you in getting the best use of your Beverage Cooler. Serial number Remember to record the model and serial numbers. -
Page 3: Safety Information
SAFETY INFORMATION DANGER WARNING CAUTION DANGER - Immediate hazards WARNING - Hazards or unsafe CAUTION - Hazards or unsafe which WILL result in severe practices which COULD result in practices which COULD result in personal injury or death severe personal injury or death minor personal injury IMPORTANT SAFETY INSTRUCTIONS WARNING... -
Page 4: Refrigerant
SAFETY INFORMATION SAVE THESE INSTRUCTIONS HOUSEHOLD USE ONLY DANGER Risk of child entrapment. Before disposing of any refrigerator or freezer, remove all doors. Leave any shelves in place so that children may not easily climb inside. REFRIGERANT GAS WARNINGS DANGER - Risk of fire or explosion. Flammable refrigerant used. DO NOT use mechanical devices to defrost refrigerator. - Page 5 NOTE: Neither COMMERCIAL COOL nor the dealer can accept any liability for damage to the product or personal injury resulting from failure to observe the electrical connection procedures.
-
Page 6: Set Up & Use
SET UP & USE PARTS & FEATURES MODEL CCB51GB Wire Shelf Racks Wire Basket Rack Mechanical Temperature Recessed Door Handle Control Glass Door Adjustable Leveling Legs MODEL CCB81GB Wire Shelf Racks (2) Recessed Door Handle Mechanical Temperature Control Glass Door... - Page 7 Hight:123mm 123mm 4.83” 355ml Diameter: 2.13” Diameter: 66 mm 66mm 2.13” MODEL: CCB51GB 1.7 Cu. Ft. 12+12+6=30 Cans 3×5+6=21 Cans layout display (DOWN) TOTAL: 51 Cans MODEL: CCB81GB 2.7 Cu. Ft. (Maximum number of cans) MODEL: CCB81GB 2.7 Cu. Ft.
- Page 8 SET UP & USE 12 oz. Can 355ML Cola Cola Height: 4.83” Hight:123mm 123mm 4.83” 355ml Diameter: 2.13” Diameter: 66 mm 66mm 2.13” MODEL: CCB109GB 3.6 Cu. Ft. (Maximum number of cans) 6◊5-4=26 Cans layout display (UP) 12+12+6=30 Cans Above average Below average layout is the same with Above average 3◊6+5=23 Cans...
-
Page 9: Installation Guide
SET UP & USE INSTALLATION GUIDE 1. Unpack your Beverage Cooler by removing all packaging materials like carton, base, foams, adhesive tape, etc. 2. Remove all accessories, internal packaging material that was used to hold shelves, etc., in place during transport. 3. -
Page 10: Reversing The Door Hinge
REVERSING THE DOOR HINGE (MODEL CCB51GB & CCB81GB) 1. Remove the top hinge cover. 2. Using a Phillips Head Screwdriver, loosen and remove the 2 screws holding the top hinge in place. - Page 11 SET UP & USE 13. Replace the top hinge cover and leveling feet. Adjust leveling feet as necessary. NOTE: If the top of the door is not aligned with the cabinet, loosen the top hinge screws, adjust door and re-tighten the screws. REVERSING THE DOOR HINGE (MODEL CCB109GB &...
- Page 12 SET UP & USE 8. Remove cabinet screw and door plug from opposite side and insert into the holes previously used by the door. 9. Remove the door pin from the lower hinge bracket by turning it counterclockwise, then reinsert it into the neighboring treaded hole and tighten.
-
Page 13: Operation Instructions
NOTE: If the Beverage Cooler has been placed in a horizontal or tilted position for any period of time, wait 24 hours before plugging the unit in. TEMPERATURE CONTROL CCB51GB and CCB109GB and CCB81GB CCB138GB • Turn the variable temperature control knob to the appropriate temperature for your beverages. -
Page 14: Cleaning & Care
CLEANING AND CARE CLEANING AND MAINTENANCE WARNING Always unplug appliance before cleaning to avoid electric shock. Ignoring this warning may result in death or injury CAUTION To avoid personal injury or product damage always read and follow manufacturer’s instructions and warnings before using any cleaning products. - Page 15 CLEANING AND CARE VACATION AND MOVING CARE • For long vacations or absences, set the temperature dial to “OFF”, unplug the unit, empty contents from Beverage Cooler and clean the Beverage Cooler according to “General Cleaning” section. Prop doors open, so air can circulate inside. •...
-
Page 16: Troubleshooting & Warranty
TROUBLESHOOTING & WARRANTY BEFORE YOU CALL FOR SERVICE IF THE APPLIANCE FAILS TO OPERATE: A) Check to make sure that the Beverage Cooler is plugged in securely. If it is not, remove the plug from the outlet, wait 10 seconds and plug it in again securely. -
Page 17: Troubleshooting
TROUBLESHOOTING & WARRANTY Troubleshoot your problem by using the chart below. If the Beverage Cooler still does not work properly, contact COMMERCIAL COOL customer service center or the nearest authorized service center. TROUBLE POSSIBLE CAUSE POSSIBLE REMEDY • Beverage Cooler is •... -
Page 18: Limited Warranty
LIMITED WARRANTY Any repair, replacement, or warranty service, REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY OF and all questions about this product should be THE CUSTOMER; W Appliance Co.. SHALL NOT BE directed to W Appliance Co. at 844-299-0879 LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL from the USA or Puerto Rico. - Page 20 © 2021 W Appliance Company. All Rights Reserved. 1356 Broadway, New York, NY 10018 April 2021 Page 20...
