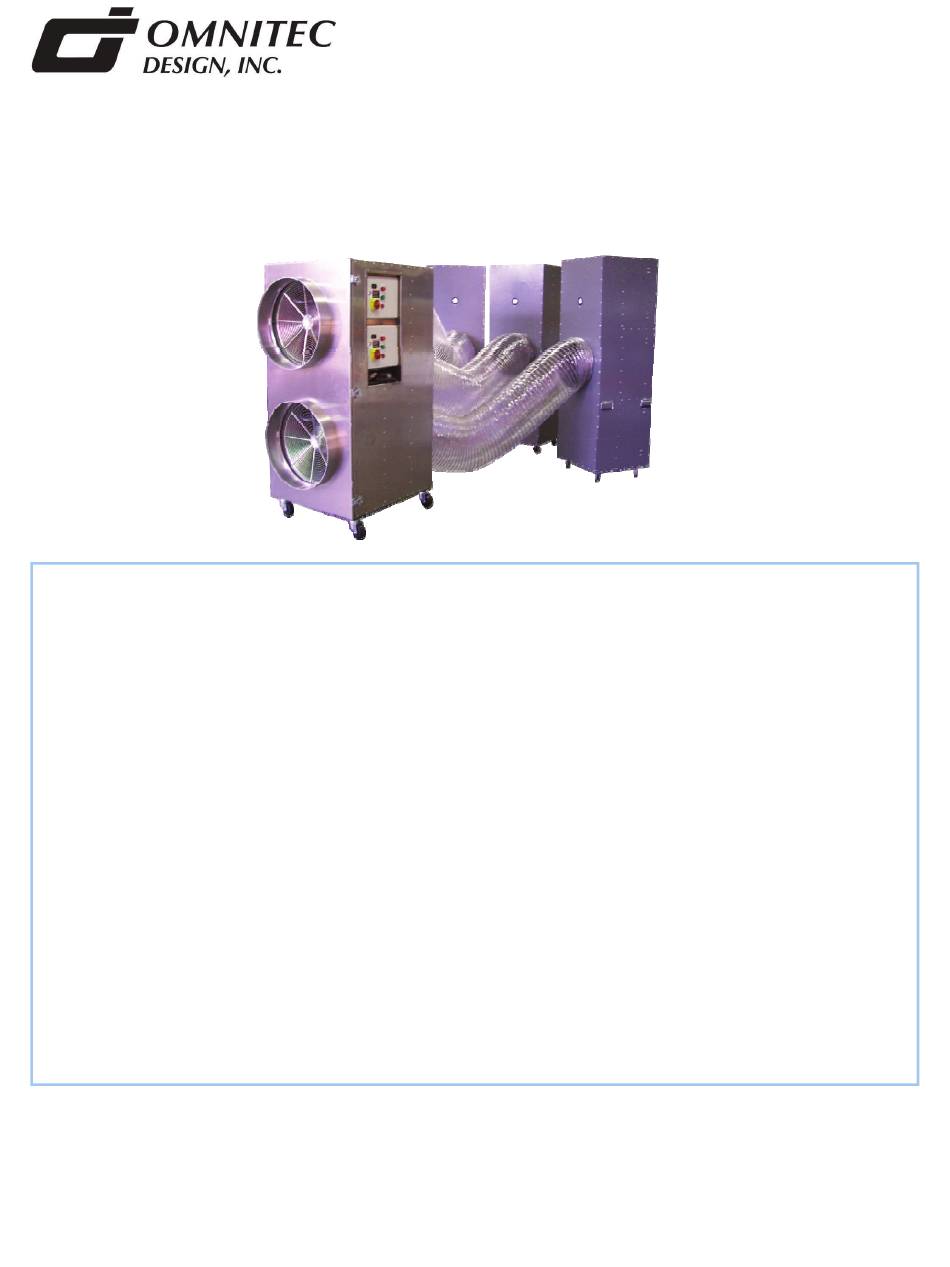

For your larger projects the OmniAire 18000 is the right tool. The modular design of this system allows for ease of transport
and many different configuration choices. The 3 HEPA filter cabinets are connected to the blower with 18" flex ducts which
allows them to be placed up to 25 feet away from the blower, and also allows them to be placed in different areas if neces-
sary. The design of the HEPA filter cabinets allows for the use of bag filters or carbon vapor trap filters in place of the
HEPA filters if required.
OmniAire 18000
Airflow - 18000 cfm, 2 - 22" vaneaxial fans with 7.5 hp motors. Airflows are based on blower manufacturer curves.
Different HEPA filters may cause the flow to vary.
Weight - Blower Unit - 900 lbs., Filter Cabinet 200 lbs. with filters installed.
Dimensions - Blower Unit - 32" wide 72" high 43" long; HEPA Filter Module - 26" wide 80" high 28" long.
Filtration - Primary/Secondary Filter - Dual-ply Dustlok polyester pad, Standard HEPA Filter - Wood Frame 99.97%
Efficiency .3 micron.
Power Requirement - 230V/60 Hz 3 phase 45 amp.
Blower Cabinet - Aircraft grade aluminum, closed end rivet construction. All seams are silicone sealed before riveting. 4
4" casters for ease of movement.
Filter Cabinets - Powder coated galvanized steel, closed end rivet construction. All seams are silicone sealed before rivet-
ing. 4 3" casters for ease of movement. Each filter cabinet is individually monitored for filter loading by a 0"-5" WC dif-
ferential pressure gauge.
Controls -Dual motor starter boxes with 32A disconnects w/lockout feature. Start and Stop pushbutton switches for each
blower. Power On Indicator for each blower. Individual hour meters for each blower.
Hose Connections - Outlet - 2 - 24" diameter rings.
www.omnitecdesign.com
2125 196th Street SW, Suite 115, Lynnwood, WA 98036
phone 425-774-3257 fax 425-774-4983
OmniAire 18000
Omnitec Design, Manufacturing Air Purification
Equipment Since 1988
1
Advertisement
Table of Contents
Related Manuals for Omnitec OmniAire 18000
Summary of Contents for Omnitec OmniAire 18000
- Page 1 Equipment Since 1988 For your larger projects the OmniAire 18000 is the right tool. The modular design of this system allows for ease of transport and many different configuration choices. The 3 HEPA filter cabinets are connected to the blower with 18" flex ducts which allows them to be placed up to 25 feet away from the blower, and also allows them to be placed in different areas if neces- sary.
-
Page 2: Important Instructions
OmniAire 18000 Air Filtration System IMPORTANT INSTRUCTIONS Read all the instructions before using this machine. CAUTION • Connect ONLY to outlets that are properly grounded. • Do not operate blower with damaged cord or plug or after it has been damaged in any manner. . -
Page 3: List Of Components
LIST OF COMPONENTS OmniAire 18000..OA18000 2 - 22” Aerovent Vaneaxial Blowers 2 - Motor Starter Enclosures with Cutler-Hammer Contactor • Cutler-Hammer Overload Relay • Sprecher-Schuh Disconnect Switch • 9 - HEPA filters 99.97% 0.3µ efficiency, 24”x24”x11.5” 9 - Prefilters, MERV 8 poly pad, dual ply, 26”x26”x2”... - Page 4 Introduction OmniAire 18000 consists of a Blower unit and three HEPA Towers. The HEPA Towers have to be connected to the Blower unit with three flexible hoses at all time for the system to operate properly. The Blower unit contains two 22” vaneaxial blowers with direct drive motors.
-
Page 5: Disconnect Switch
CONTACTOR OVERLOAD PROTECTION RELAY (SET @ 22 AMPS START DISCONNECT SWITCH SWITCH STOP SWITCH HOUR METER LIGHT... -
Page 6: Unpacking And Preparation
Unpacking and Preparation • Check the HEPA Towers for any distortion or damage. Before installing HEPA filters, check the silicone seal around the filter flange • and the forward corners of the cabinets. Check the flex hose connection rings to have silicone seal where ring is attached •... -
Page 7: Operation
Operation: For asbestos and dust abatement, machine must be operated with all nine HEPA filters in place. Also, it is recommended to use the prefilters and replace them frequently to extend the life of the HEPA. All HEPA Towers must be securely connected to the Blower unit. To start the machine: With flex hoses connected, move the HEPA Towers to desired positions and block the wheels. -
Page 8: Troubleshooting
100% to 20% capacity. Pressure gauge reads 3.5” WC even with clean primary/secondary filter. Machine becomes noisier and hardly any air comes out. For additional assistance contact: Omnitec Design, Inc. - 2125 196th St. SW, Suite 115, Lynnwood, WA 98036 - 425-774-3257...
