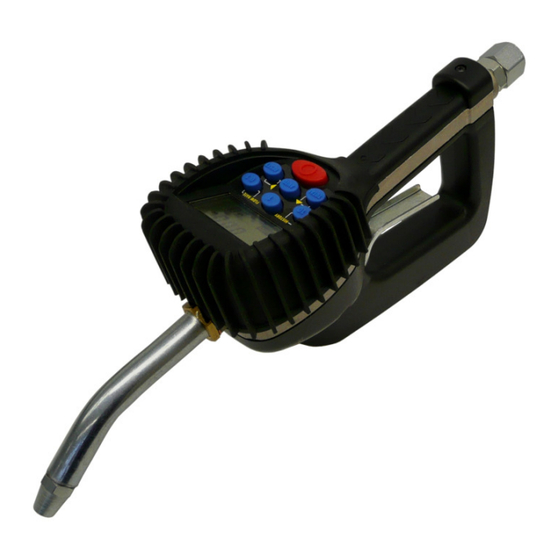

- Page 1 OPERATING INSTRUCTIONS DIGIMET E30 Preset Electronic preset meter Erstellt: Änderung: Tnr. 01/2014 05/17 72709 MATO GmbH & Co. KG / Benzstr. 16-24 / 63165 Mühlheim a. Main / Tel:+49(0)6108-906-0 / Fax:+49(0)6108-906-120...
-
Page 2: Table Of Contents
1. Disclaimer ......................1 2. Warning ......................... 1 Explosion and Fire hazards ..................1 Meter hazards ......................1 3. Meter buttons ......................2 4. LCD display ......................2 5. Meter installation ....................3 Relieve system pressure ..................3 Grounding ........................ 3 Flushing procedure .................... -
Page 3: Disclaimer
Should the equipment be used in a manner not specified by MATO GmbH & Co KG, the protection provided by the equipment may be impaired and the warranty voided. -
Page 4: Meter Buttons
Meter buttons page 2/20 3. Meter buttons Used to enter the batch quantity to be dispensed. Total Used to display the accumulated total of fluid dispensed as well as the re-settable total during auto batch and manual mode. Auto Used to enter and exit the manual or auto batch mode. Reset - Used in the manual mode to clear the dispensed quantity. -
Page 5: Meter Installation
Meter installation page 3/20 5. Meter installation Relieve system pressure 1. Turn off the power supply to the pump or close the shutoff valve. 2. Dispense any fluid in the system into a waste container by opening the meter(s). 3. Open all bleed-type master air valves and fluid meter(s) in the system. 4. -
Page 6: Apply Meter To Hose
Meter installation page 4/20 Apply meter to hose Close the drain valve before starting this procedure. 1. Attach swivel to meter. Apply thread sealant to the male end of the hose. Recommended sealant is Loctite ® 243. 2. Insert the metal end of the hose into the swivel. Tighten completely with... -
Page 7: Meter Operation
Operating mode functions page 5/20 6. Meter operation NOTE: The keypad Auto button is used to toggle between Manual Mode and Auto Batch Mode. Manual mode In the manual mode the meter operates as a free flow- dispensing handle. 1. Pull the trigger to begin the flow. 2. -
Page 8: Count Up / Count Down Modes
Operating mode functions page 6/20 3. After the batch size is selected, press the button to lock in the batch and dispense fluid. 4. Pull the trigger to begin the flow. • The solenoid valve, in the meter, Auto automatically locks dispensing batch... -
Page 9: Operating Mode Functions
Operating mode functions page 7/20 7. Operating mode functions These functions operate the same in manual mode and auto batch mode. Re-settable / accumulated totals 1. To see the accumulated total and the re-settable total: • Press and hold the button to see the accumulated total. -
Page 10: Flow Rate
Operating mode functions page 8/20 Flow rate This option allows a user to see instantaneously the rate at which fluid is flowing through the meter. 1. Press and hold the / FLOW RATE button while fluid is flowing through the meter. -
Page 11: Change Factory Settings
Change factory settings page 9/20 9. Change factory settings Each meter is calibrated at the factory for use with motor oil (See change scale factor, page 8). The unit of measure is also selected prior to shipment. Programming To change the factory settings: 1. -
Page 12: Change Scale Factor
Calculate scale factor page 10/20 Change scale factor Changing the scale factor changes the accuracy of the meter, potentially causing it to overfill or under fill. This has the potential to cause a mechanical breakdown. Scale factor digits 1. Press the button to advance through the scale factor digits. -
Page 13: Absolute Scale Factor
Calculate scale factor page 11/20 10.1 Absolute scale factor For absolute scale factor, perform this test: 1. Run a measured amount of fluid through the meter. 2. If the meter delivers 4.20 quarts and the display shows only 4.00 quarts, then the scale factor needs to be adjusted. - Page 14 Calculate scale factor page 12/20 SPECIFICATIONS English Metric Maximum flow * 10 gpm 38 lpm Minimum flow * 0.25 gpm 1 lpm Operating pressure (Maximum) 1000 psi 67 bar Operating pressure (Minimum) 5 psi 0.35 bar Operating temperature (Maximum) 120° F 50°...
- Page 15 Calculate scale factor page 13/20 ITEM # Part description Part number Battery holder assembly 320343 Bottom case with srews 320355...
- Page 16 Calculate scale factor page 14/20 ITEM # Part description Part number Display assembly 320376 EPM2 Adv. register assembly 320377 Not shown Swivel, NPT 503008 Not shown Rubber boot 320374...
- Page 17 Calculate scale factor page 15/20 ITEM # Part description Part number Valve assembly 320335 Gear service kit with O-ring 320353 Trigger assembly 320379...
-
Page 18: Troubleshooting
Troubleshooting page 16/20 11. Troubleshooting Relieve the pressure prior to checking or repairing the meter. Make sure all valves, controls and pumps are operating correctly. Symptom Possible Cause Remedy Battery Icon is displayed Batteries are low Replace batteries Display Blank Meter asleep Push reset button Loose battery connection... -
Page 19: Manufacturer's Declaration
Verantwortung, daß das Produkt: declare, on our sole responsibility, that the product: engageons notre responsabilité propre sur le produit: declaramos, sobre nuestra única responsabilidad, que el producto: Bezeichnung, Typ: DIGIMET E30 Preset Designation, Type: - Handdurchlaufzähler mit Mengenvorwahl Désignation, Modèle: Designación, Tipo:... - Page 20 High Quality Fluid Handling Products La Technologe de graissage et de lubrification Alta tecnología en lubrificatión Händler / Dealer / Grossiste / Intermediario MATO GmbH & Co. KG www.mato.de Tel.: +49 (0) 6108 – 906 – 0 Benzstr. 16-24 D-63165 Mühlheim a.M.
