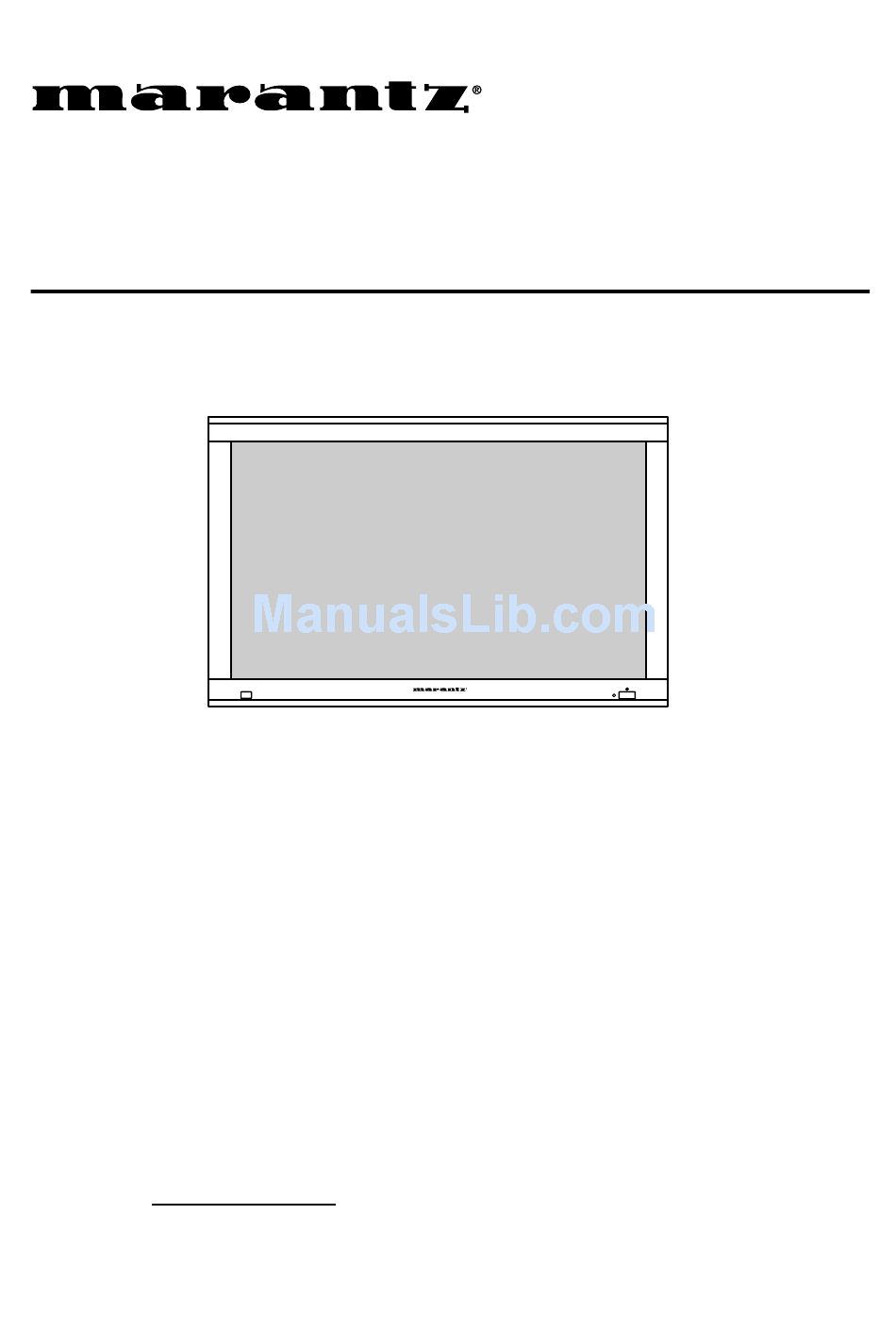

Slim Line Plasma Monitor
PD4298HD
READ THE INSTRUCTIONS INSIDE CAREFULLY.
KEEP THIS USER MANUAL FOR FUTURE REFERENCE.
For future reference, record the serial number of your monitor.
SERIAL NO.
The serial number is located on the rear of the monitor.
RGB/
MENU
SELECT
▽
VOLUME
△
SUB-POWER
VIDEO
USER MANUAL
MANUEL UTILISATEUR
MANUAL DE USUARIO
