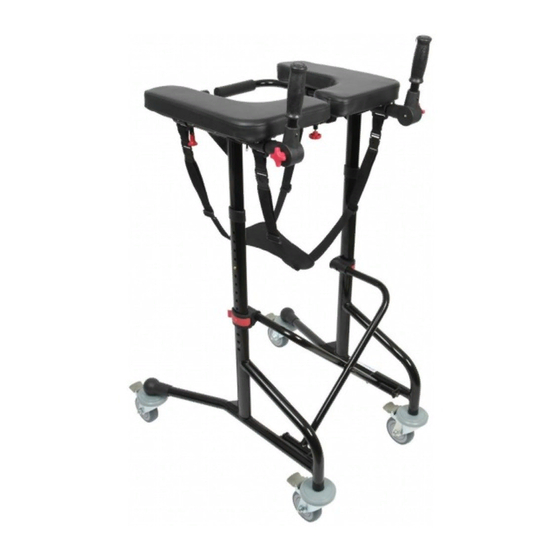

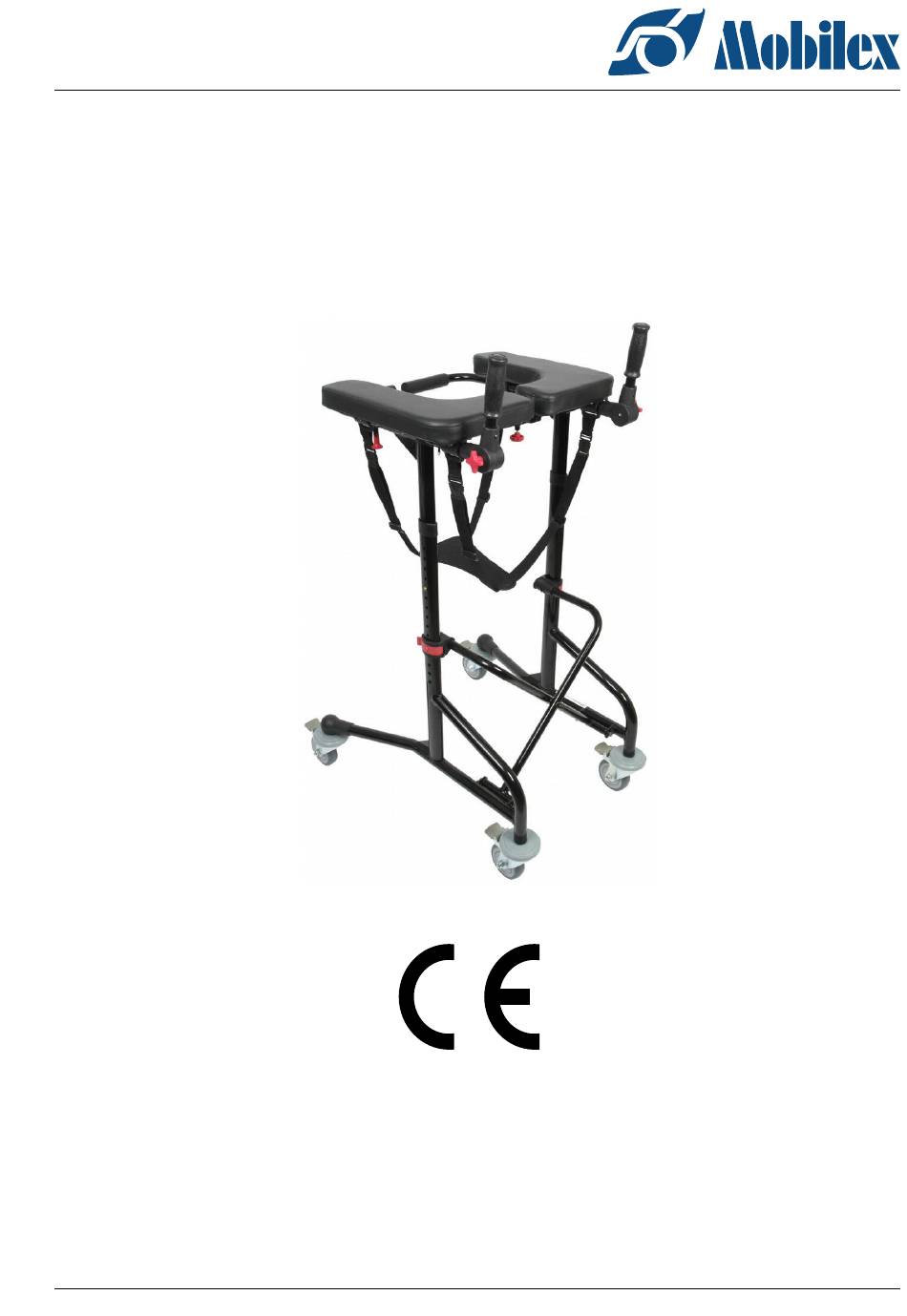

- Page 1 Mobilex A/S Grønlandsvej 5 DK-8660 Skanderborg www.mobilex.dk “DynaWalk” Light Weight – Verticalizer/Walking Frame 313001 User's manual MOBILEX A/S Grønlandsvej 5 DK-8660 Skanderborg Denmark www.mobilex-care.com Rev. 10/13 Page 1 of 6 UM-313001-GB...
- Page 2 Intended use of the device The Mobilex Product is medical device which is intended to be used only as a standing & walking assistant during walk re-education by patients that because of invalidity are unable to stand & walk independently and who require additional stable support during walking.
- Page 3 Mobilex A/S Grønlandsvej 5 DK-8660 Skanderborg www.mobilex.dk Side&Arm Angle ajust- supports Elevable safety able handle back bars Frame lock Seat belt length adjustment Height adjust- ment knob Supportive seat belt Frame cross Width adjust ment knob Castor wheel with pedal brake Width setting holes Assembly description &...
- Page 4 Mobilex A/S Grønlandsvej 5 DK-8660 Skanderborg www.mobilex.dk Adjusting the handles position. To adjust the angle of handle loosen the knob located at the ● pivoting point, set the desired angle and tie tie the knob. Repeat above steps for the second handle.
- Page 5 Mobilex A/S Grønlandsvej 5 DK-8660 Skanderborg www.mobilex.dk 4. Technical data Mod. Standard Mod. Brake Mod. Mini DynaWalk Item Nr. 313001 Item Nr. 313002 Item Nr. 313003 Max. load 135 kg 135 kg 135 kg Total weight 12,5 kg 12,5 kg...
- Page 6 8. Guarantee terms Mobilex A/S offers 2 years of guarantee for damages caused by errors in production. The guarantee is not valid by not-intended use of the product. Parts subject to normal wear are not covered by the guarantee, unless wear is caused by a manufacturing fault. In the event of damage, please notify your dealer.
