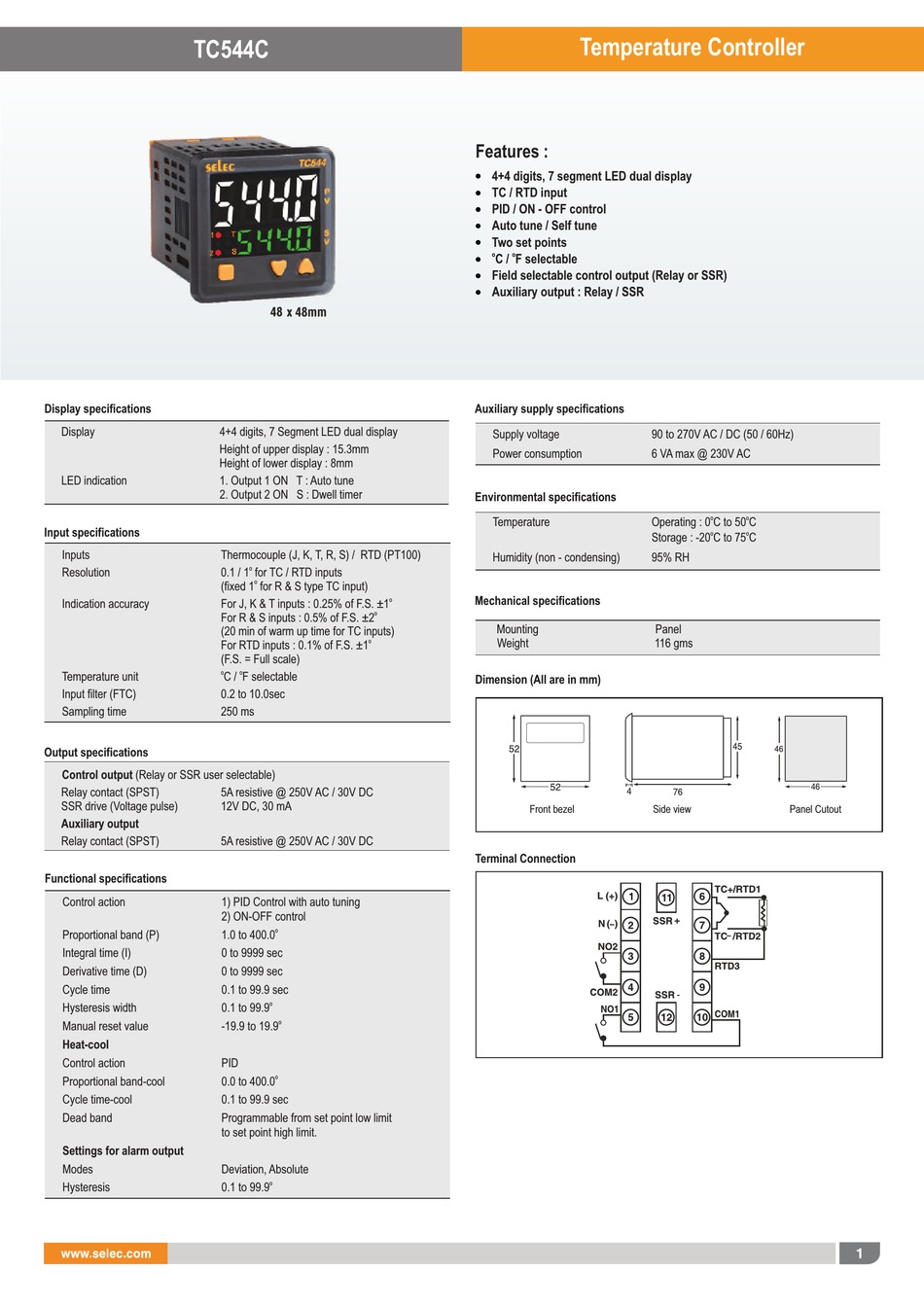

TC544C
Display specifications
Display
LED indication
Input specifications
Inputs
Resolution
Indication accuracy
Temperature unit
Input filter (FTC)
Sampling time
Output specifications
Control output (Relay or SSR user selectable)
Relay contact (SPST)
SSR drive (Voltage pulse)
Auxiliary output
Relay contact (SPST)
Functional specifications
Control action
Proportional band (P)
Integral time (I)
Derivative time (D)
Cycle time
Hysteresis width
Manual reset value
Heat-cool
Control action
Proportional band-cool
Cycle time-cool
Dead band
Settings for alarm output
Modes
Hysteresis
4+4 digits, 7 Segment LED dual display
Height of upper display : 15.3mm
Height of lower display : 8mm
1. Output 1 ON T : Auto tune
2. Output 2 ON S : Dwell timer
Thermocouple (J, K, T, R, S) / RTD (PT100)
o
0.1 / 1 for TC / RTD inputs
o
(fixed 1 for R & S type TC input)
o
For J, K & T inputs : 0.25% of F.S. ±1
o
For R & S inputs : 0.5% of F.S. ±2
(20 min of warm up time for TC inputs)
o
For RTD inputs : 0.1% of F.S. ±1
(F.S. = Full scale)
o
o
C / F selectable
0.2 to 10.0sec
250 ms
5A resistive @ 250V AC / 30V DC
12V DC, 30 mA
5A resistive @ 250V AC / 30V DC
1) PID Control with auto tuning
2) ON-OFF control
o
1.0 to 400.0
0 to 9999 sec
0 to 9999 sec
0.1 to 99.9 sec
o
0.1 to 99.9
o
-19.9 to 19.9
PID
o
0.0 to 400.0
0.1 to 99.9 sec
Programmable from set point low limit
to set point high limit.
Deviation, Absolute
o
0.1 to 99.9

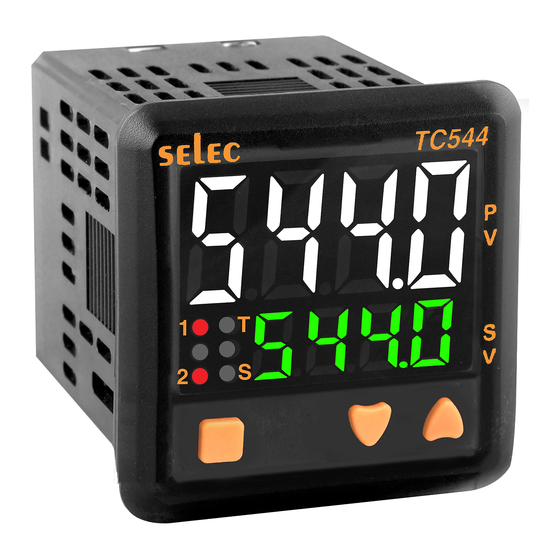

Temperature Controller
Features :
4+4 digits, 7 segment LED dual display
!
TC / RTD input
!
PID / ON - OFF control
!
Auto tune / Self tune
!
Two set points
!
o
o
C / F selectable
!
Field selectable control output (Relay or SSR)
!
Auxiliary output : Relay / SSR
!
Auxiliary supply specifications
Supply voltage
Power consumption
Environmental specifications
Temperature
Humidity (non - condensing)
Mechanical specifications
Mounting
Weight
Dimension (All are in mm)
Front bezel
Terminal Connection
90 to 270V AC / DC (50 / 60Hz)
6 VA max @ 230V AC
o
o
Operating : 0 C to 50 C
o
o
Storage : -20 C to 75 C
95% RH
Panel
116 gms
Side view
Panel Cutout
