Summary of Contents for Fender HAMMERTONE SPACE DELAY

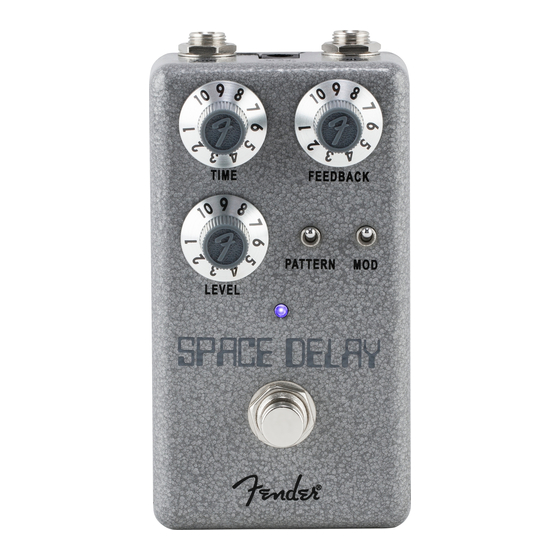

- Page 2 DC POWER CONNECTOR OUTPUT JACK INPUT JACK FOOTSWITCH...
- Page 3 Pattern and Mod switches to tailor delay sounds even more. Delay is an essential element in the arsenal of any modern guitarist, and the Hammertone Space Delay puts this shimmering sound at your feet in every shade from subtle to striking.
- Page 4 OUTPUT JACK Low-impedance output connects to amp or next pedal in signal chain. INPUT JACK High-impedance input for electric guitar, bass, acoustic guitars with pickup systems, keyboards and other instruments. DC POWER CONNECTOR Connect DC adapter here. Standard center-negative 9VDC jack for use with appropriate power supplies.
- Page 5 INTERNAL TRIM POTENTIOMETERS (ACCESSIBLE BY REMOVING COVER) SPEED trim pot adjusts modulation rate when MOD SWITCH is active. DEPTH trim pot adjusts modulation depth when MOD SWITCH is active. Remove cover using a flat-head screwdriver. Adjust trim pots using a Phillips-head screwdriver.
- Page 7 A PRODUCT OF FENDER MUSICAL INSTRUMENTS CORPORATION CORONA, CALIFORNIA, U.S.A. Fender ® is a registered trademark of FMIC. Copyright © 2021 FMIC. All rights reserved. PN 7724436000 REV A IMPORTANT SAFETY INSTRUCTIONS •WARNING: To prevent damage, fire or shock hazard, do not expose the unit or its AC power to rain or moisture.
- Page 8 © FENDER MUSICAL INSTRUMENTS 2021...
