Fig. 3; Anchoring Test - KWIK GOAL 10B2601 Instruction Manual

After Installing anchoring system that has been chosen for securing goal to field Surface: After Installing anchoring system that has been chosen for securing goal to field Surface:
1. Clear all persons of a minimum of 50 ft. radius surrounding goal. 1. Clear all persons of a minimum of 50 ft. radius surrounding goal.
2. Apply a horizontal pull force of 242 lb. at the top of the front and center of the crossbar for 60 seconds 2. Apply a horizontal pull force of 242 lb. at the top of the front and center of the crossbar for 60 seconds
+10 -0 seconds, full safety precautions must be taken while performing this test. +10 -0 seconds, full safety precautions must be taken while performing this test.
3. Determine if unit tilts or does not return to its original position. 3. Determine if unit tilts or does not return to its original position.
4. If unit tilts or does not return to its original position use alternate anchoring system. 4. If unit tilts or does not return to its original position use alternate anchoring system.
This goal has been designed to be used for the game of soccer only. Goal posts must be anchored
AT ALL TIMES and shall be secured against tilting. Do not climb on the net or goal framework at
anytime! All fastenings must be checked to insure they are fully tightened before and after each
use of this product. Goal posts not in use must be disassembled and properly stored in a safe
secure area. (See Guidelines for Moveable Soccer Goal Safety, included.) Assembled goal posts
should not be left unattended. Remove nets when goals are not in use. Do not use this equipment
in the threat of high winds. Goal posts should be checked for safety before and after each use. All
warning and safety labels included with this product must be visible at all times. Any
modifications to this or any Kwik Goal product will void any and all warranties.

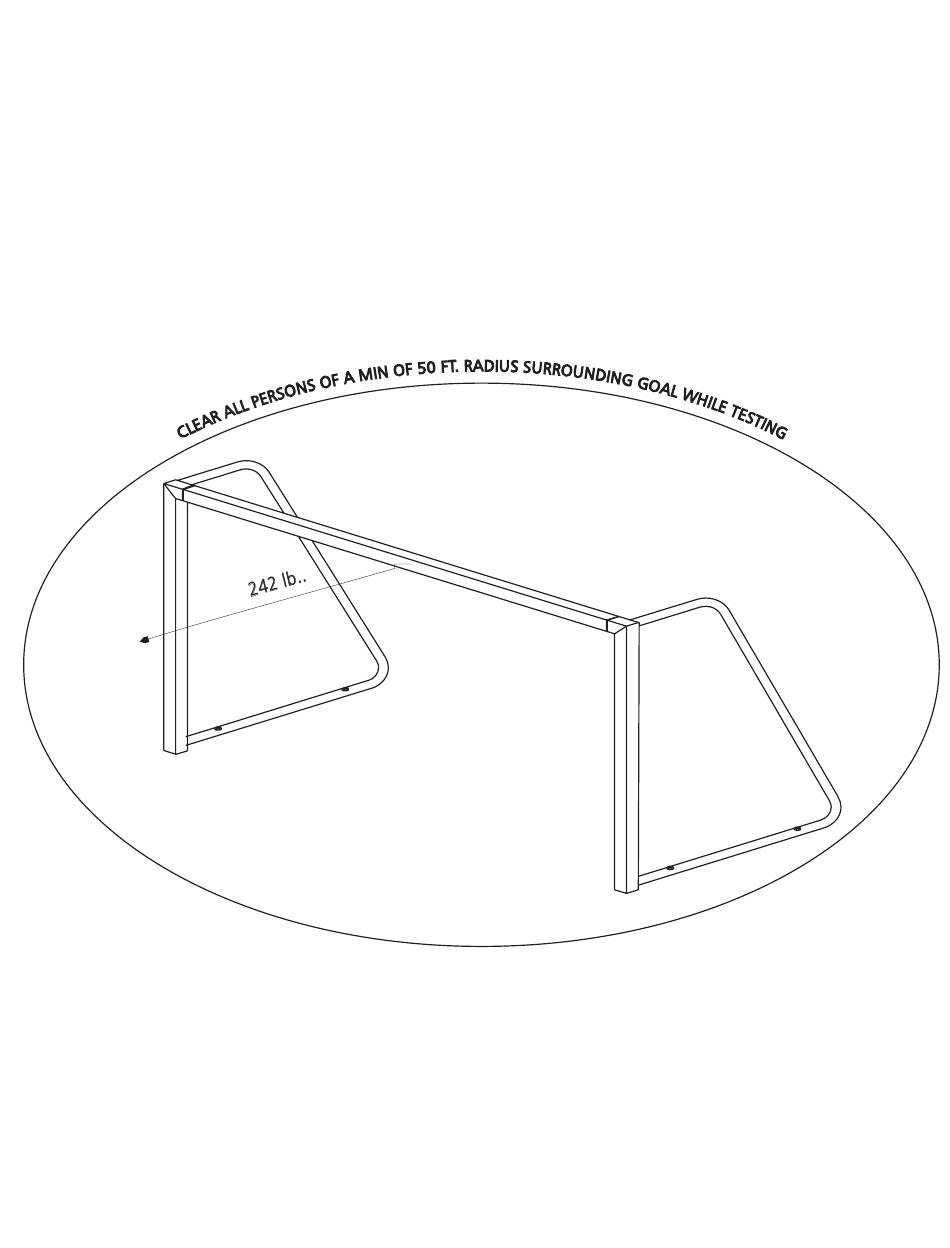

Fig. 3

Fig. 3

ANCHORING TEST

***CAUTION***
NZ197 Rev. 9/16/04
