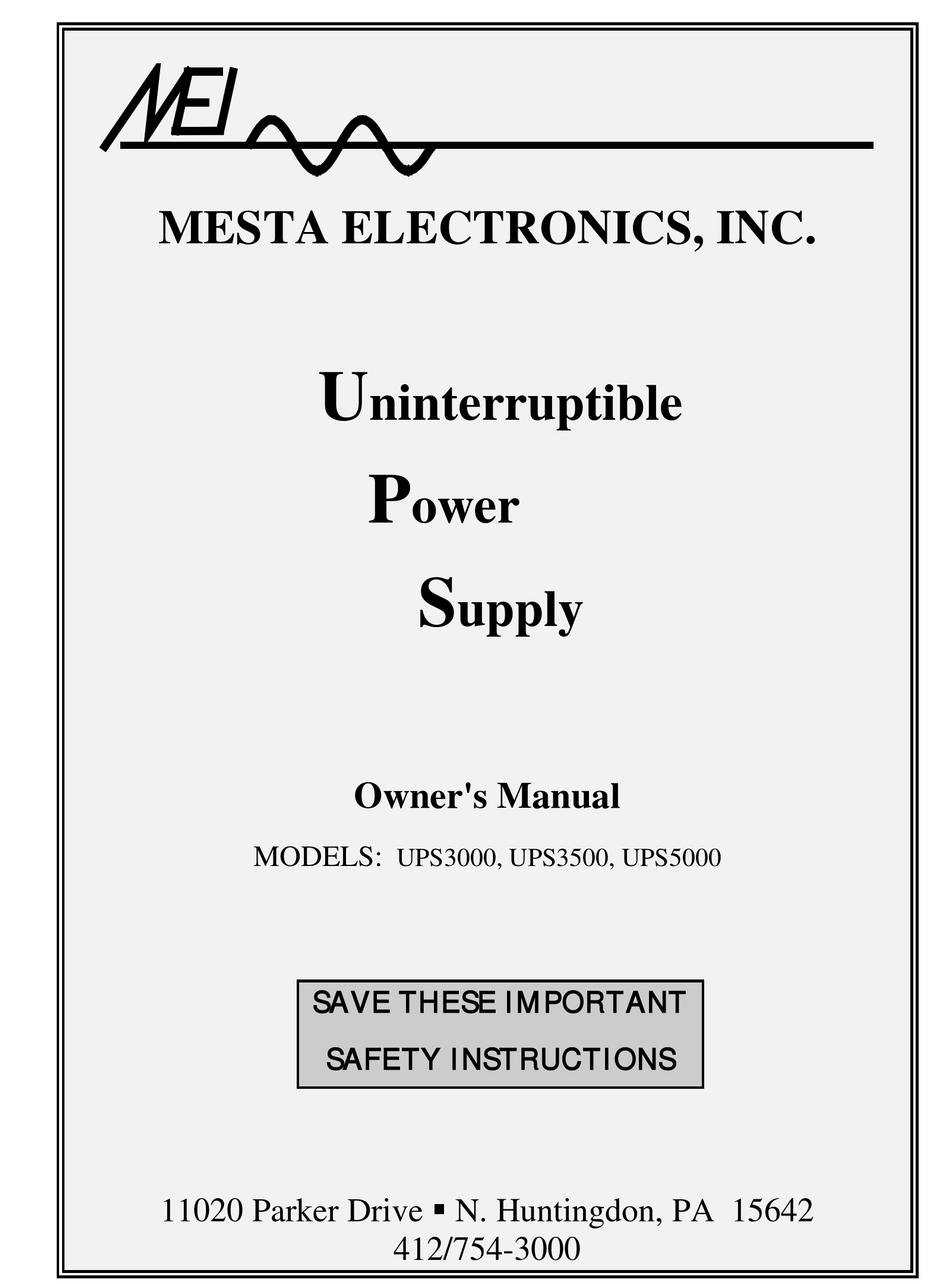

- Page 1 MESTA ELECTRONICS, INC. ninterruptible ower upply Owner's Manual MODELS: UPS3000, UPS3500, UPS5000 SAVE THESE I M PORTANT SAFETY I NSTRUCTI ONS 11020 Parker Drive N. Huntingdon, PA 15642 412/754-3000...
-
Page 2: Table Of Contents
Models: UPS3000 - UPS5000 Table of Contents 1. INTRODUCTION ........................1 2. GENERAL DESCRIPTION ..................... 2 3. INSTALLATION ........................4 4. OPERATING PROCEDURE....................7 5. RS232 INTERFACE ....................... 8 6. STORAGE ..........................11 7. INTERNAL MAINTENANCE ....................12 8. BATTERY INFORMATION ....................13 9. - Page 3 Models: UPS3000 - UPS5000 (Page Intentionally Left Blank)
-
Page 4: Introduction
1. INTRODUCTION Thank you for buying the Mesta Electronics UPS! You are now an owner of a TRULY UNINTERRUPTIBLE POWER SUPPLY. No other system on the market can match your UPS. SAVE THESE INSTRUCTIONS - This manual contains important instructions that should be followed during installation and maintenance of the UPS and its batteries. -
Page 5: General Description
-- as well as major blackouts -- protection must be constant and instantaneous. The Mesta UPS system provides this kind of comprehensive protection by maintaining a clean, well- regulated flow of power to critical loads, regardless of the quality of incoming AC line power. It remains in a constant state of readiness, so there is no time delay in compensating for AC line failures. - Page 6 The microcontroller follows a unique algorithm by which it regulates the charging process and enables a minimal recharging time. YOUR INVESTMENT IN MESTA'S TRULY UNINTERRUPTIBLE POWER SUPPLY INSURES THE VALUABLE POWER PROTECTION YOU NEED.
-
Page 7: Installation
Again, in case of any damage, report it directly to the dealer or the carrier. Environment: The MESTA UPS is designed to be used in an environment with a temperature range of 0-40°C and relative humidity of 0-95%, without condensation. The site should not be excessively dusty or dirty. - Page 8 If your UPS is capable of 208/240 input voltage, the voltage that the UPS is set up for is printed on a sticker at the input plug. If you wish to change to the other voltage, Mesta has provided a procedure for qualified personnel to make such a change using only a medium, flat blade screwdriver.
- Page 9 Alternate Voltage Stickers: Shipped with your unit are alternate voltage stickers to be used if you change the input or output voltage of you UPS. If you change the input voltage, take the new input voltage sticker and place it over the one at the input plug of the UPS. If you change the output voltage, take the new output voltage sticker and place it over the one at the output receptacle at the back of the UPS.
-
Page 10: Operating Procedure
SYSTEM TURN-ON (REFER TO APPENDIX C FOR OPTION A) Once plugged in and turned on, the MESTA UPS will begin supplying power to the load. The green "AC LINE" and "BATTERY" lights will be on. If the AC line fails, the red "UPS" light will come on, and after 5 seconds an intermittent alarm will sound for 30 seconds. -
Page 11: Rs232 Interface
Mesta provides this software on a 51/4" or 31/2" diskette. Once communication has been established with the UPS, the UPS will provide a ">" prompt, which signals the operator to enter a command. -
Page 12: Table 1: Ups Software Parameters
None Parameters A through L displayed all at once Notes on the MESTA UPS Parameters: 1. The accuracy of the percentage of battery charge remaining depends on operating conditions and the present loading of the UPS. The accuracy will be much more precise at the lower percentages than it is at the higher percentages (where the performance curve flattens and a perfectly correct interpolation is more difficult - in the 92-100% range). -
Page 13: Table 2: Rs232 Technical Specification Summary
Table 2: RS232 Technical Specification Summary CONNECTOR: 9 pin D female FORMAT: ASCII, 1 start bit(0), 8 data bits, 1 stop bit(1) BAUD RATE: 1200 PARITY: none DUPLEX: full PROTOCOL: None used. Interface is simple 3 wire (RXDATA, TXDATA, and GND) with no hardware or software handshaking. -
Page 14: Storage
6 months. To recharge batteries in a battery pack purchased from Mesta, follow the directions to connect the battery cabinet to a Mesta UPS in the "Battery Information" section of this manual. Allow a minimum of 4 hours charging per battery... -
Page 15: Internal Maintenance
Only qualified technicians or supervised personnel should open the UPS and only after ALL of the following WARNINGS and instructions are read and fully understood. Mesta's UPS has been designed to provide unprecedented reliability; therefore it requires little or no maintenance. -
Page 16: Battery Information
Mesta before doing so. Only qualified technicians should attempt connecting a battery pack other than the Mesta BP9-15 to your UPS. CAUTION - not clearing other battery packs with Mesta may result in serious damage to the UPS and/or the battery pack. - Page 17 UPS or its electrical loads. Mesta has designed this unit to provide maximum battery reliability, thus requiring little or no maintenance.
-
Page 18: Figure 1: Ups Battery Tray Configuration
After the battery tray is removed from the cabinet, individual batteries may be disconnected and replaced, or the entire tray of batteries may be replaced. Exercise extreme caution to insure that batteries are replaced correctly, insuring proper battery polarities (consult figure 1 for correct wiring). Batteries must be secured back onto the tray using methods similar to the strapping and fasteners originally supplied. -
Page 19: Troubleshooting
(on, off, flashing) If the system is in a diagnostic you may also check the fault status indication through the RS232 communications interface. At this point it is recommended that you contact a Mesta representative for assistance. -
Page 20: Appendix A. Ups Specifications By Model
APPENDIX A. UPS SPECIFICATIONS BY MODEL This section of the Mesta Electronics Owner's Manual contains the full set of operating specifications for each of the models covered herein. UPS Models UPS3000 • 3.0KVA/KW UPS3500 • 3.5KVA/KW UPS5000 • 5.0KVA/KW... - Page 21 UPS3000 • 3KVA/KW ON LINE UPS SPECIFICATIONS INPUT INDICATORS AND CONTROLS Voltage • 120VAC - 15% + 10% LEDs • Indicate AC line, Inverter, Battery, 5-50P Plug and Overload status Frequency • 60Hz ±5Hz (Input voltage and Audible alarm • indicates loss of AC line, low...
- Page 22 UPS3500 • 3.5KVA/KW ON LINE UPS SPECIFICATIONS INPUT INDICATORS AND CONTROLS Voltage • 208 or 240VAC - 15% + 10% LEDs • Indicate AC line, Inverter, Battery, L14-30P Plug and Overload status Frequency • 60Hz ±5Hz (Input voltage and Audible alarm • indicates loss of AC line, low frequency range are programmable via RS232 port) battery, or overload...
- Page 23 UPS5000 • 5KVA/KW ON LINE UPS SPECIFICATIONS INPUT INDICATORS AND CONTROLS Voltage • 208 or 240VAC - 15% +0% LEDs • Indicate AC line, Inverter, Battery, L14-30P Plug and Overload status Frequency • 60Hz ±5Hz (Input voltage and Audible alarm • indicates loss of AC line, low frequency range are programmable via RS232 port) battery, or overload...
-
Page 24: Appendix B. Operating Procedure For Option A
SYSTEM TURN-ON Once plugged in and turned on, the MESTA UPS will begin supplying power to the load. The green "AC LINE" light will be on. If the AC line fails, the red "UPS" light will come on, and after 5 seconds an intermittent alarm will sound for 30 seconds. -
Page 25: Appendix C. Dry Contact Status Relays Option A
24 VDC and 0.3 amps. The end user may either purchase cabling from Mesta Electronics, Inc. to interface this connector with an external piece of equipment or construct their own customized cable. Below is a diagram showing the actual 9 pin connector and a description of the dry contacts available. -
Page 26: Appendix D. Warranty/Service And Repair
APPENDIX D. WARRANTY/SERVICE AND REPAIR LIMITED WARRANTY POLICY Mesta Electronics, Inc. warrants its UPS to be free from defects in materials and workmanship for a period of 1 year from the date of original shipment from the factory, provided the UPS has not been abused, misused, or used outside of the specified conditions. - Page 27 Mesta Electronics, Inc. The foremost name in power protection! REV 1.6 (1-11)
- Page 28 MESTA ELECTRONICS, INC. 11020 Parker Drive N. Huntingdon, PA 15642 412/754-3000...
