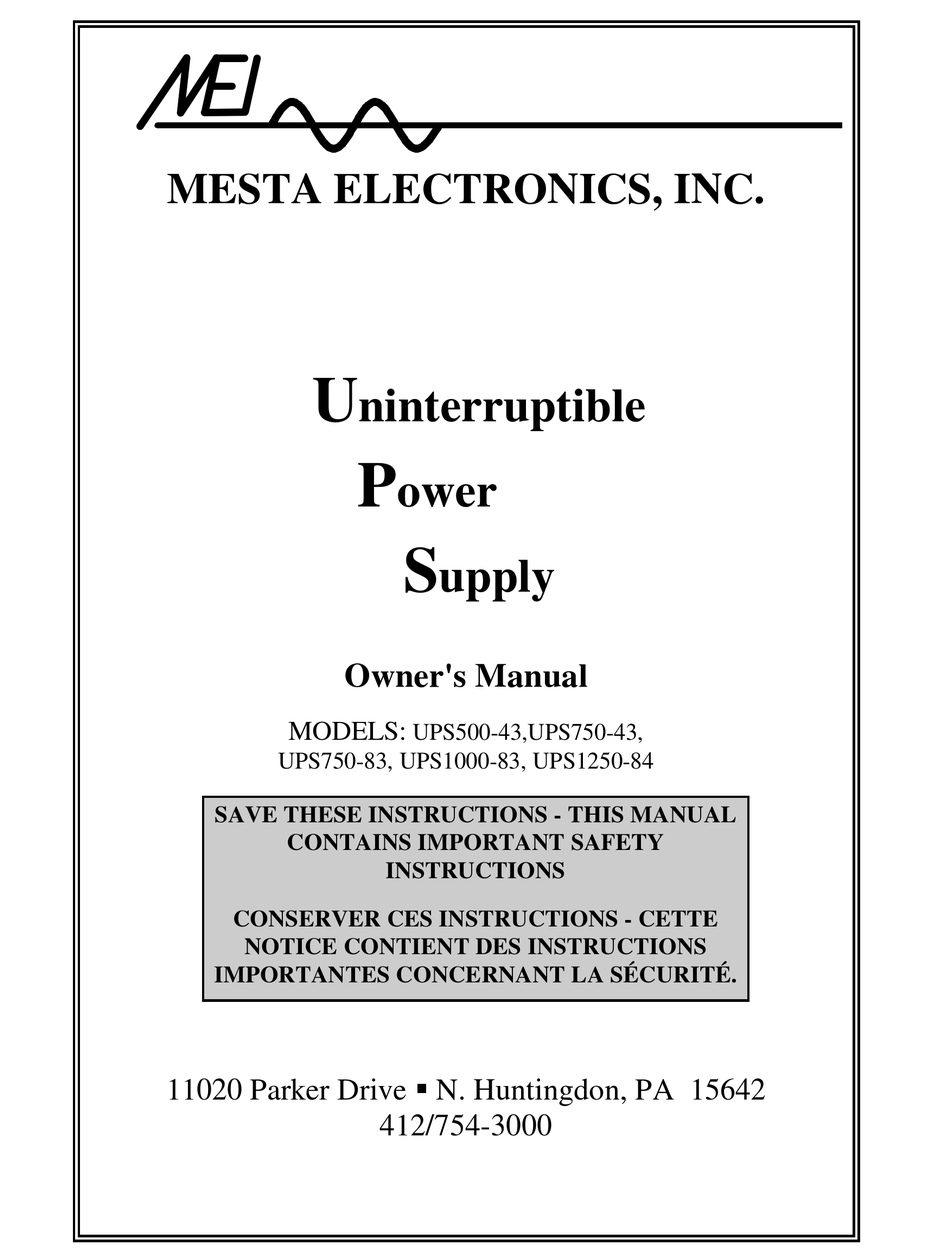

MESTA ELECTRONICS, INC.

ninterruptible

ower

upply

Owner's Manual

MODELS:

UPS500-43,UPS750-43,

UPS750-83, UPS1000-83, UPS1250-84

SAVE THESE INSTRUCTIONS - THIS MANUAL

CONTAINS IMPORTANT SAFETY

INSTRUCTIONS

CONSERVER CES INSTRUCTIONS - CETTE

NOTICE CONTIENT DES INSTRUCTIONS

IMPORTANTES CONCERNANT LA SÉCURITÉ.

11020 Parker Drive § N. Huntingdon, PA 15642

412/754-3000

Table of Contents

Need help?

Do you have a question about the UPS500-43 and is the answer not in the manual?

Questions and answers

Summary of Contents for MESTA UPS500-43

Page 1 MESTA ELECTRONICS, INC. ninterruptible ower upply Owner's Manual MODELS: UPS500-43,UPS750-43, UPS750-83, UPS1000-83, UPS1250-84 SAVE THESE INSTRUCTIONS - THIS MANUAL CONTAINS IMPORTANT SAFETY INSTRUCTIONS CONSERVER CES INSTRUCTIONS - CETTE NOTICE CONTIENT DES INSTRUCTIONS IMPORTANTES CONCERNANT LA SÉCURITÉ. 11020 Parker Drive § N. Huntingdon, PA 15642...
Page 3: Table Of Contents
Models: UPS500-43 – UPS1250-84 Table of Contents 1. INTRODUCTION ..........................1 2. GENERAL DESCRIPTION .........................2 3. INSTALLATION..........................4 4. OPERATING PROCEDURE.......................6 5. RS232 INTERFACE ...........................8 6. STORAGE............................11 7. INTERNAL MAINTENANCE ......................12 8. BATTERY INFORMATION .......................13 9. TROUBLESHOOTING ........................16 APPENDIX A. UPS SPECIFICATIONS BY MODEL................17 APPENDIX B.
Page 4 (Page Intentionally Left Blank)
Page 5: Introduction
1. INTRODUCTION Thank you for buying the Mesta Electronics UPS! You are now an owner of a TRULY UNINTERRUPTIBLE POWER SUPPLY. No other system on the market can match your UPS. SAVE THESE INSTRUCTIONS—This manual contains important instructions that should be followed during installation and maintenance of the UPS and its batteries.
Page 6: General Description
The Mesta UPS system provides this kind of comprehensive protection by maintaining a clean, well- regulated flow of power to critical loads, regardless of the quality of incoming AC line power. It remains in a constant state of readiness, so there is no time delay in compensating for AC line failures.
Page 7 The output neutral is internally connected to chassis ground in these units. This option results in a UPS that is slightly larger and slightly less efficient than standard models. YOUR INVESTMENT IN MESTA'S TRULY UNINTERRUPTIBLE POWER SUPPLY INSURES THE VALUABLE POWER PROTECTION YOU NEED.
Page 8: Installation
Again, in case of any damage, report it directly to the dealer or the carrier. Environment: The MESTA UPS is designed to be used in a temperature controlled, indoor area free of conductive contaminants, having a temperature range of 0–40°C and relative humidity of 0–95%, without condensation.
Page 9 Installation Complete: Assuming an overload doesn't occur prior to attaching and turning on all loads, you have completed the installation procedure of your UPS. From here on there is no special powering up or powering down sequence that needs to be followed for either your load equipment or the UPS.
Page 10: Operating Procedure
SYSTEM TURN-ON Once plugged in and turned on, the MESTA UPS will be supplying power to the load. The green "UPS On" light will be on solid, the green "On Line" light will be on solid and the yellow "On Battery"...
Page 11 Flashing with 10% duty cycle -- 2-9% charged. When batteries are discharged to below 10% level, solid audible tone is generated for 30 seconds or until "Alarm Reset" is pressed. (The level of the Low Battery alarm can be changed using the FSET Routine, section 5 RS232 Interface).
Page 12: Rs232 Interface
Mesta provides this software on a 5¼ " or 3½ " diskette. Once communication has been established with the UPS, the UPS will provide a ">" prompt, which signals the operator to enter a command.
Page 13: Table 1. Ups Software Parameters
None Parameters A through R displayed all at once Notes on the MESTA UPS Parameters: 1. Current draw from the batteries is "+" if batteries are being discharged and "-" if batteries are being charged. A small positive or negative value of .1 or .2 amps may not necessarily reflect that the batteries are being charged or discharged.
Page 14: Table 2: Rs232 Technical Specification Summary
For the Battery Alarms: • You will be prompted to choose from the modes of Enable (5-60 second annunciation duration or until manual reset with the Alarm Reset button), Disable (off - no audible annunciation) or Forever (continuous or until manual reset with the Alarm Reset button). •...
Page 15: Storage
6. STORAGE Battery Life: The MESTA UPS should be stored with the batteries fully charged. Storage temperature should be maintained between -20°C and 40°C. The life of the batteries may be greatly reduced if stored at temperatures exceeding 30°C for extended periods of time. Optimal storage temperature for maximum battery life is 20°C or lower.
Page 16: Internal Maintenance
Only qualified technicians or supervised personnel should open the UPS and only after ALL of the following WARNINGS and instructions are read and fully understood. Mesta's UPS has been designed to provide unprecedented reliability; therefore it requires little or no maintenance. However, should internal maintenance be required, please adhere to the following warnings and instructions.
Page 17: Battery Information
8. BATTERY INFORMATION The standard batteries supplied in the MESTA UPS are sealed lead-acid maintenance-free 12 volt 6.5 amp-hour batteries. These batteries are wired in series to provide a total nominal voltage as follows: Number of Batteries: Total Nominal Voltage:...
Page 18: Figure 1. Ups Battery Shelf Configuration
Figure 1. UPS Battery Shelf Configuration Once the unit is off and you have removed the AC plug, DC fuse and unit cover, you must then remove the white B+ wire from the far upper left battery (as viewed above). Figure 1 shows the battery configuration for a 4 battery UPS.
Page 19: Figure 2. Ups Lower Battery Shelf Configuration
Figure 2. UPS Lower Battery Shelf Configuration To remove the lower shelf batteries, Remove the two 8-32 screws holding the upper platform in place. Lift up on the right side of this platform in order to release its tabs (located on the left side) that are inserted in slots in the bottom of the UPS chassis.
Page 20: Troubleshooting
(on, off, flashing) If the system is in a diagnostic you may also check the fault status indication through the RS232 communications interface. At this point it is recommended that you contact a Mesta representative for assistance.
Page 21: Appendix A. Ups Specifications By Model
APPENDIX A. UPS SPECIFICATIONS BY MODEL This section of the Mesta Electronics Owner's Manual contains the full set of operating specifications for each of the models covered herein. × × UPS ModelsØ Ø UPS500-43 - UPS1250-84 500VA - 1250 VA...
Page 22 × × MESTA UPS SPECIFICATIONS 500VA TO 1250VAØ Ø INPUT BATTERY Voltage • 120VAC - 15% + 10% Sealed maintenance-free 5 year expected Frequency • 60Hz ±5Hz (Input frequency life INDICATORS AND CONTROLS range is programmable via RS232 port) LEDs • Indicate UPS On, On Line, On Battery, OUTPUT Voltage (AC line) •...
Page 23: Appendix B. Dry Contact Status Indication
24 volts and 0.1 amps. The end user may either purchase cabling and software from Mesta Electronics, Inc. to interface this connector with an external computer or construct their own customized cable. Below is a diagram showing the actual 15 pin connector and a description of the dry contacts available.
Page 24: Appendix C. Warranty/Service And Repair
× × LIMITED WARRANTY POLICYØ Ø Mesta Electronics, Inc. warrants its UPS to be free from defects in materials and workmanship for a period of 1 year from the date of original shipment from the factory, provided the UPS has not been abused, misused, or used outside of the specified conditions.
Page 25 × Mesta Electronics, Inc.Ø Ø The foremost name in power protection! UPS REV 3.7 (11-05)
Page 26 MESTA ELECTRONICS, INC. 11020 Parker Drive § N. Huntingdon, PA 15642 412/754-3000...
