SC8800-S Media Converter
Kit
Quick Setup Guide
This Quick Setup Guide provides step-by-step
instructions for installing a Media Converter Kit in a
Ruckus Wireless
TM
ZoneFlex™ SmartCell™ SC8800-S
Outdoor Access Point.
WARNINGS!
This is a Class 1 laser product.
The laser radiates when the system is open and the
interlocks are bypassed.
Ruckus Wireless products must be installed, serviced and
replaced by a professional installer.
CAUTION!
This procedure assumes that the SC8800-S is being
modified before it is mounted on a pole. After the
SC8800-S is mounted on a pole, this procedure becomes
much more difficult.
WARNING!
A short-circuit backup protection device must be
connected to AC-powered equipment according to local
or national electrical codes.
Copyright © 2013 Ruckus Wireless, Inc.
Published November 2013, Part Number 800-70486-001 Rev A
B
Y
B
EFORE
OU
EGIN
Before deploying your Ruckus Wireless device, please
check the Ruckus Wireless Web site for the latest
software and release documentation.
•
Release Notes and User Guides are available at
http://support.ruckuswireless.com/documents
•
Software Upgrades are available at
http://support.ruckuswireless.com/software
•
Open Source information is available at
http://support.ruckuswireless.com/open_source
P
C
ACKAGE
ONTENTS
•
One Media Converter Assembly
•
Four 4" (100mm) nylon cable ties
•
Two locking wire saddles, with arrowhead
•
One M25 cable gland
•
M25-to-5/8" thread adapter and O-ring, for use with
optional customer-supplied FOTC (fiber optic trunk
cable)
•
This Quick Setup Guide
R
P
ELATED
ARTS
The media converter requires one of the following small
form-factor pluggable (SFP) transceivers as an interface
to the customer-supplied fiber-optic cable.
•
Single-Mode EPON SFP Optic Module Kit
(P/N 902-0202-0000)
•
Single-Mode 1000Base-LX SFP Optic Module Kit)
(P/N 902-0203-0000)
R
T
S
EQUIRED
OOLS AND
UPPLIES
•
Phillips screwdrivers
•
Wide flat-blade screwdriver
•
Security Torx T30 bit
•
27mm hex socket
•
Ratchet wrench
•
Torque wrench
•
Torque screwdriver with assorted bits
•
Cable tie cutter
O
S
PTIONAL
UPPLIES
•
Customer-supplied FOTC (fiber optic trunk cable),
including strain relief connector and fitting nut
•
Customer-supplied FOTC heat-shrink tubing
S
1: I
L
TEP
NSTALLING THE
OCKING

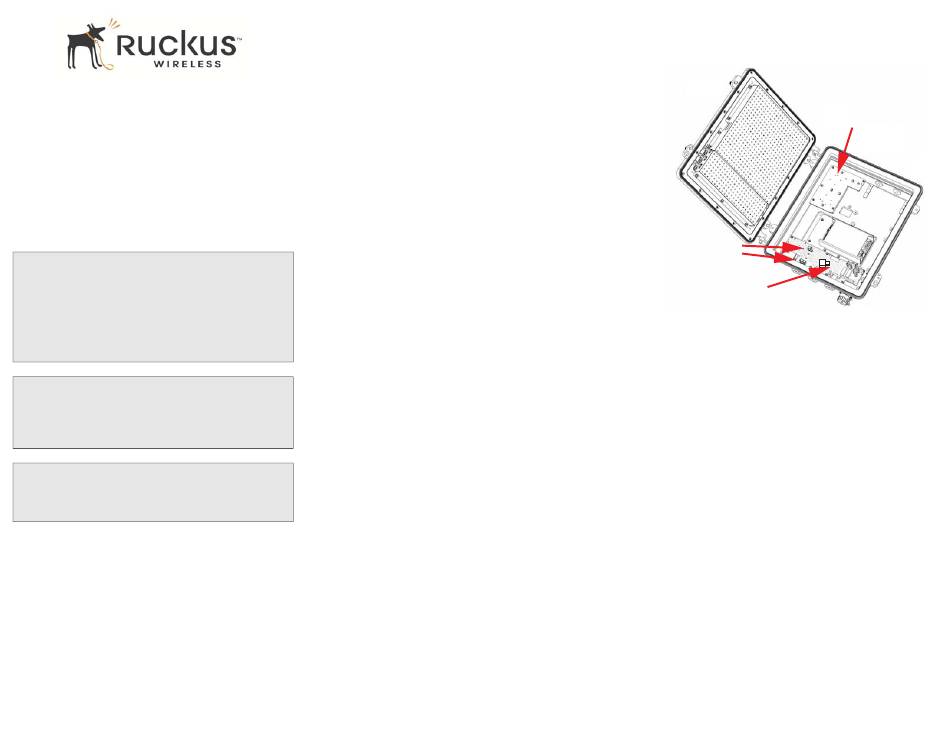

A. Lay the SC8800-S on its back on a flat surface, and
open the front cover.
management
Locking
wire saddles
(2 places)
Interface circuit board
B. Snap the two locking wire saddles into the interface
circuit board inside the FIBER port.
W
S
IRE
ADDLES
Cable
plate
Page 1 of 4
