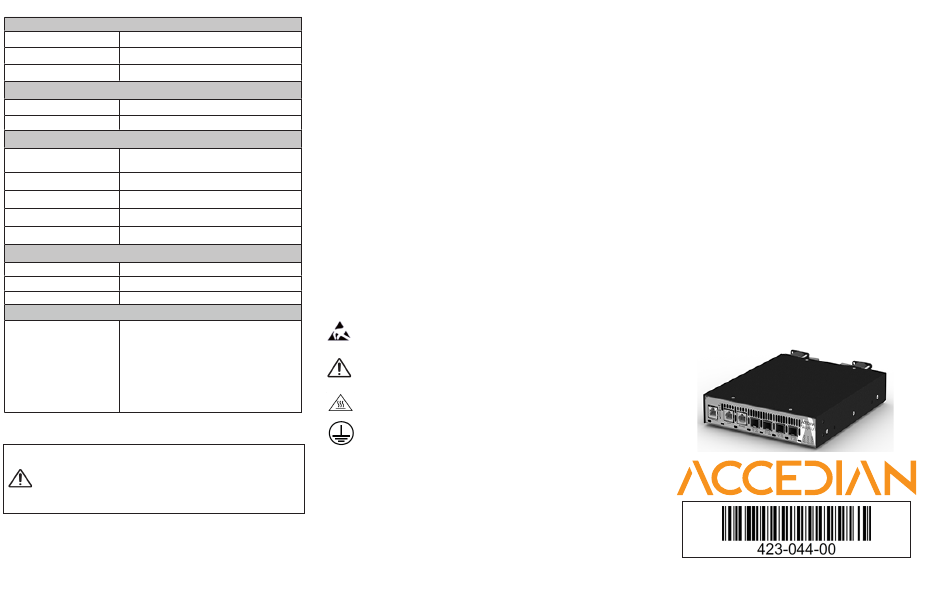

Accedian Skylight LX Installation Manual

Specifications
Power
Input Voltage Range 20-57V , 3.0-1.1A
DC
Power Consumption 40W , 55W
Nom Max
SFP+ Slots Power Capability 2.0W Per Slots
Max
Physical
Dimensions (W x H x D) 201 x 38 x 264mm (7.9 x 1.5 x 10.4")
Weight 1655g (59oz)
Environmental
Operating Temperature Commercial Model: 0C to 50C
Hardened Model: -40C to 65C
Storage Temperature -40C to 70C
Operating Humidity 5% to 95% RH, Non Condensing
Storage Humidity 5% to 95% RH, Non Condensing
Maximum Altitude 2000 m, Above Sea Level
Regulation & Standard Compliance (Unique ID: NODE2c)
Safety 60950-1
EMC Class A
Telcordia* NEBS Level-3
Ethernet Ports
Interconnection The intra-building Ethernet ports in this equipment are
suitable for connection to intra-building, or unexposed
wiring or cabling only. These intra-building ports
MUST NOT be metallically connected to interfaces that
connect to the OSP or its wiring. These interfaces are
designed for use as intra-building interfaces only (Type
2 ports as described in GR-1089) and require isolation
from the exposed OSP cabling. The addition of Primary
Protectors is not sufficient to connect these interfaces
metallically to OSP wiring.
*Note: Contact Accedian technical support for exceptions.
You must install the unit in a restricted access location in the following cases:
– If you are using a DC power connection and the ambient temperature is more
that 50°C.
– If you are using a contralized DC power connection.
Compliance Statements
FCC Class A
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instruction manual, may cause harmful interference to radio com-
munications. Operation of this equipment in a residential area is likely to cause harmful interfer-
ence in which case the user will be required to correct the interference at his own expense.
VCCI–A
この装置は、クラスA情報技術装置です。この装置を家庭環境で使用すると電
波妨害を引き起こすことがあります。この場合には使用者が適切な対策を講ずる
よう要求されることがあります。
KCC-A
사용자 안내문
이 기기는 업무용 환경에서 사용할 목적으로 적합성평가를 받은 기기로서 가
정용 환경에서 사용하는 경우 전파간섭의 우려가 있습니다.
Conventions
Attention: This product, like all electronic products, uses semiconductors that
can be damaged by electrostatic discharge (ESD). Always observe appropriate
precautions when handling.
Warning: Potential for damage to equipment or personal injury.
Attention: This symbol indicates that the surface is hot and to use caution to avoid
touching it.
Protective grounding point
Skylight LX™
HARDWARE INSTALLATION GUIDE
423-044-00, Revision 3
Published: 2020-12-17
