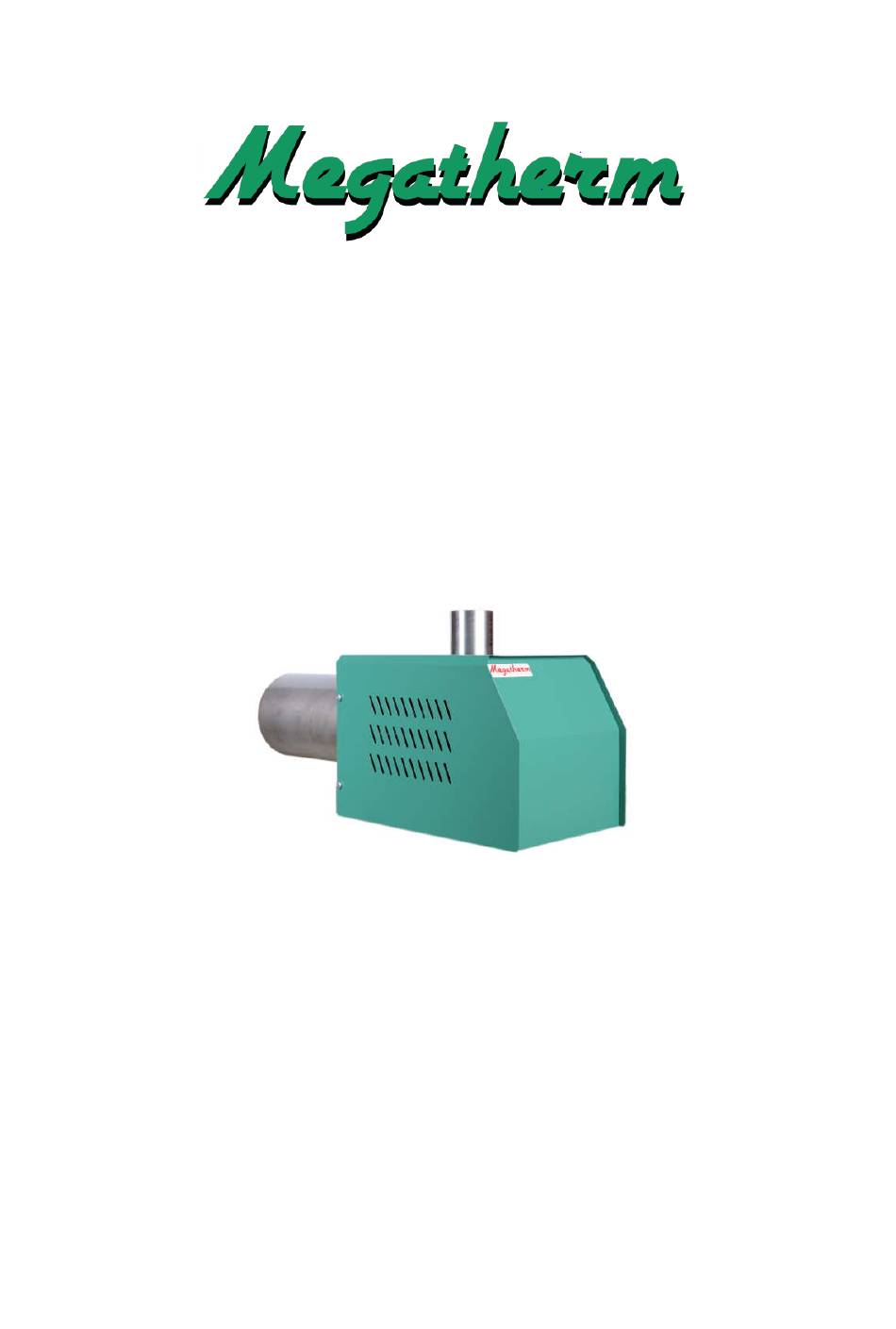

- Page 1 Megatherm wood-pellet burner MPB 90 Pro Wood pellet burner MPB 90 Pro Installation & User Manual This manual is for the Installer. Read, understand, and follow these instructions for safe installation and operation.
-
Page 2: Table Of Contents
19. Errors ..................20. Electrical diagram ..............21. Warranty .................. MPB Pro Wood Pellet Burner Installation Manual - November 2015 - Version 3 Megatherm rreserves the right to change part or parts of this manual at any time without prior notice... -
Page 3: Warnings, Cautions, And Notes
Megatherm wood-pellet burner MPB 90 Pro Warnings, Cautions, and Notes Read the safety instructions carefully before Installation, operation, service, and other installation. Always follow the safety work must be carried out by qualified instructions during installation and during personnel in accordance with local codes and maintenance regulations. -
Page 4: The Principle Of Working
MPB 90 Pro The principle of working The principle of work of MPB 90 Pro burner is based on providing fuel via steering the feeders appropriately and the work of a fan which steers the burning process. The MPB Pro... -
Page 5: Technical Specifications
Megatherm wood-pellet burner MPB 90 Pro Technical specifications Type MPB 90 Pro 40-90kW Heat outup 34,400-77,400Kcal Maximum pellet consumption 8-18kg/hr Lenght (total) 745mm Width 270mm Height with feeding pipe 360mm Height without feeding pipe 290mm Φ 180mm Diameter Power supply... -
Page 6: Boiler
Megatherm wood-pellet burner MPB 90 Pro Boiler It is important to check that the combustion chamber in the boiler is big enough to ensure that the flame does not come in contact with the water-cooled walls. Verify that the boiler’s capacity range complies with the burner. -
Page 7: Description Of The Controller
Megatherm wood-pellet burner MPB 90 Pro Description of the controller Description: Diodes signalising the status of outputs and the working mode of the driver, LCD screen used for communication between the device and the user, Buttons steering the driver's work. - Page 8 Megatherm wood-pellet burner MPB 90 Pro TECHNICAL CHARACTERISTICS OF THE CONTROLLER Sensors: KTY-210 Measurement range: 0 – 120 °C Measurement resolution: 0.1 °C Time of measurements: Data's reading: LCD screen 2x20 signs Steering outputs: • Igniter: ~230V 2A (0.8A) Feeder: ~230V 2A (0.8A)
-
Page 9: Operation Functions
Megatherm wood-pellet burner MPB 90 Pro Operation functions After switching the driver on, on the LCD screen appears the program's logo defining the type of the driver, current version of software and the manufacturer's logo. PELLETS DRIVER ** REG-03/G v4.0 ** While activating, the driver carries out a test of the connected sensors. - Page 10 Megatherm wood-pellet burner MPB 90 Pro automatically causes switching on of the lately used working mode. In the table beneath a short description of particular functions of the burner, activated depending on the working mode of the driver, is shown.
-
Page 11: Parameter's
Megatherm wood-pellet burner MPB 90 Pro Parameter's To move round the menu and to set particular parameters there are four buttons placed on the driver's panel: “MODE/ ”, “MENU/OK”, “+”, “-”. The parameters chosen by the user are divided into four groups: (A) “CH FURNACE SETTINGS”, (B) “WUW BUFFER SETTINGS”, (C) “BURNER SETTINGS”, (D) “DRIVER SETTINGS”. - Page 12 Megatherm wood-pellet burner MPB 90 Pro ** Burner has 3 modes: continuous mode, single mode and analogue mode. Single mode: The burner reaches the desired “HEATING WATER TEMPERATURE “ and burns off. Then, it starts its operation again when the temperature of the boiler goes down to the temperature “HEATING WATER TEMPERATURE - CH FURNACE HYSTERESIS”.
- Page 13 Megatherm wood-pellet burner MPB 90 Pro (IGNITION) FEEDER kg/h 5.0 – 99.0 20.0* PERFORMANCE PELLETS FEEDING seconds 10 - 60 PERIOD OVERFLOW AIR multiplier 0.2 - 4 0.4* (WORK) OVERFLOW AIR multiplier 0.2 - 4 1.0* (MAINTAIN) FLAME DETECTOR 5 – 90...
-
Page 14: Manufacturer's Menu
Megatherm wood-pellet burner MPB 90 Pro Manufacturer's menu Activation of Manufacturer's menu In order to activate the manufacturer's settings menu, go to the menu "DRIVER SETTINGS" and sub-menu "ENABLE SERVICE MODE" and with the help of buttons "MENU/OK" and "+" or "-" choose the code 112. Then, press "MODE/ " and leave the sub-menu, go to the menu "MANUFACTURER SETTINGS"... - Page 15 Megatherm wood-pellet burner MPB 90 Pro FAN POWER (IGNITION) In this parameter the producer sets the power of the fan during the pellet's ignition. The fan's power is set in the bracket of 5 to 50%. If chimney's draught is over -15Pa, then the parameter stays at 10% If chimney's draught is from 0 to -15Pa, then the parameter must change to 15-20%.
- Page 16 Megatherm wood-pellet burner MPB 90 Pro specified amount of the pellet during maintain mode. This parameter should be increased if during the working cycle too low capacity of the fan would be noticed. The overflow of the air is set in the bracket from 0.10 to 4.00 Manufacturer Advise: Can not be given any advise since it is depended on power, pellet, chimney draught, etc..
- Page 17 Megatherm wood-pellet burner MPB 90 Pro FEEDER MULTIPLIER In this parameter, we set the value of the operation time of the Internal feeder regarding the operations time of the External Feeder. The operation time of the internal feeder must be enough, so the wood-pellet is supplied from the external feeder, to be driven by the internal feeder to the burners fire chamber.
-
Page 18: Room Thermostat
Megatherm wood-pellet burner MPB 90 Pro SENSOR TYPE In this parameter the installer can choose between KTY ant PT 1000 temperature sensors. KTY is the default sensor which is used for measuring temperatures up to 100 The PT 1000 sensor is given by the manufacturer under request and it is used to measure temperature higher than 100 C (industrial applications). -
Page 19: First Use
Megatherm wood-pellet burner MPB 90 Pro 3. When thermostat is ON, the burner works at the maximum power it is set. 4. When thermostat is OFF, the burner burns off This is mostly suggested for low consumption houses (less than 3.000kg/year) or for connecting with timer. -
Page 20: Start Of The Burner
Megatherm wood-pellet burner MPB 90 Pro Start of the burner 1. Activate the controller by pressing the button 2. It is written on the LCD screen the following CH:---- C WUW:---- C STOP 3. By pressing the button “MODE/ “ once changes the operation from “Stop” to “ignition”. -
Page 21: Cleaning Burner's Chamber
Megatherm wood-pellet burner MPB 90 Pro 14. Cleaning burner's chamber The burner can be either at “Work” or “Maintain” or “standby” Press the button “MODE/ “ continuously till “STOP MODE” appears on the screen. It is written “Burning off” till the photo sensor stops to detect fire (3-5 min) When he photo sensor stops to detect fire, “cleaning procedure takes place for few... -
Page 22: Self Cleaning System
Megatherm wood-pellet burner MPB 90 Pro 9. Connect the feeder with the burner, by using the plastic pipe. 17. Self cleaning system Self cleaning can be activated only when the burner is equipped with an electro- valve and it is connected with an air-compressor. -
Page 23: Errors
Megatherm wood-pellet burner MPB 90 Pro 19. Errors Indication Description Solution / 1. The driver starts up relevant emergency CH: !!!!!! WUW: !!!!!!! procedures for every sensor in order to prevent STOP the boiler from working beyond the safe range... -
Page 24: Electrical Diagram
Megatherm wood-pellet burner MPB 90 Pro 20. Electrical diagram REG 03/2C... -
Page 25: Warranty
Megatherm wood-pellet burner MPB 90 Pro 20. Warranty 2-years in metal parts 2-years in electric parts (feeder's motor & air-fan) 1-year in electronic controller No waarranty is given for the heating element (igniter) Pellet heating systems Vasilika, Thessaloniki 57006, Greece tel.
