Summary of Contents for TSS Monolift

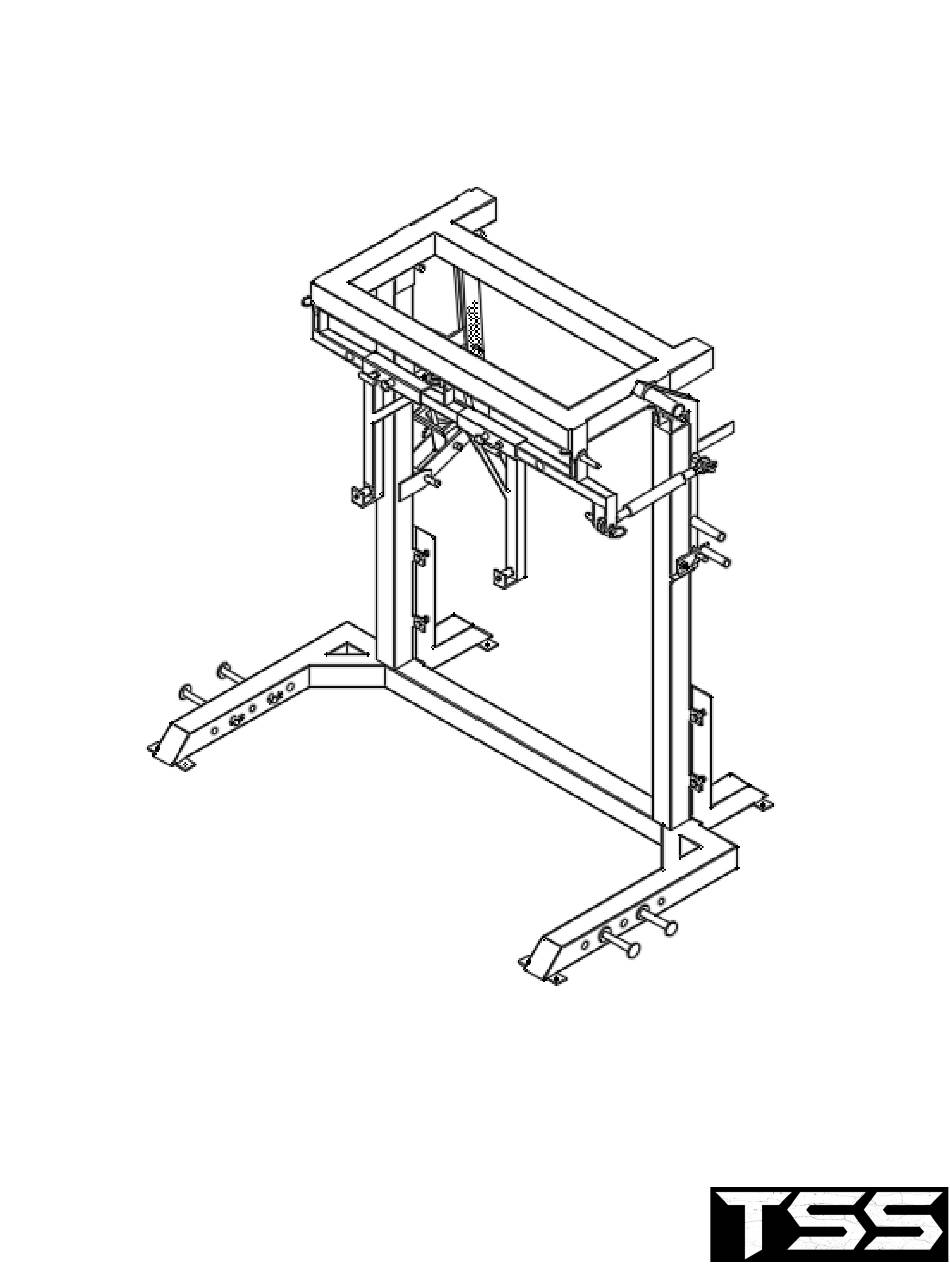

- Page 1 Monolift...
-
Page 2: Personal Safety
Read all safety warnings, instructions and illustrations provided for this piece of strength equipment. Failure to follow all instructions listed below may result in serious injury or death. User assumes all potential risks of assembly or use of this product. The assembly of this piece of equipment requires 4 people. - Page 3 Required Tools ● Crescent Wrench ● 1 ⅛” and 9/16” Socket and Wrench Parts MONO-001 (x1) Part A MONO-003 (x1) Part C MONO-002 (x2) Part B MONO-004 (x1) Part D...
- Page 4 MONO-005 (x1) Part E MONO-009 (x4) Part I MONO-006 (x1) Part F MONO-010 (x1) Part J MONO-007 (x1) Part G MONO-011 (x1) Part K MONO-008 (x1) Part H...
- Page 5 MONO-300 (x1) Part P MONO-012 (x1) Part L ¾” x 2” Bolt (x8) Part Q ¾” Lock Washer (x8) Part R MONO-013 (x1) Part M ¾” Nut (x8) Part S ⅜” x 1 ¼” Bolt (x8) Part T MONO-014 (x1) Part N ⅜”...
- Page 6 Height Pin (x1) Part X Band Pegs (x4) Part Z Cotter Pin (x5) Part Y...
- Page 7 Assembly Parts T and U will be placed as seen above in image 2 on both Place parts A and B as seen sides of part B and tightened above in image 1. using a 9/16” socket.
- Page 8 Place parts Q, R, and S as seen above in image 4 to connect both C and D to part B. Tighten with 1 Place parts C and D as seen ⅛” socket and crescent wrench. above in image 3.
- Page 9 Image 5 and 6 display how parts H and E are placed and attached with part Z. Image 7 below displays how part Z is placed through both parts E and H.
- Page 10 Part F is placed onto part C and is attached with part Z as seen above in image 8.
- Page 11 Place part G onto part D as seen above in image 9.
- Page 12 Place part J on part C as seen above in image 10. Part P will then be used to connect them.
- Page 13 Part I is placed on part C as seen above in image 11 and is held in place with part P.
- Page 14 Place part K into part J as seen above in image 12 and connect them both using part P. Part M is placed on part K as seen above in image 13. Once placed, elevate part M until it places pressure onto part F.
- Page 15 Place part X into part I at the desired location. Once placed, reduce pressure from part M until part X is touching part D.
- Page 16 Part L is placed onto part E as seen above in image 15. Part P is then used to connect part L to part E as seen above in image 16.
- Page 17 Place part N between parts L and H as seen above in image 17. Place parts P and Y as seen in image 17 in order to secure part N.
- Page 18 Place part Z in the desired location on part A and secure them with part...
- Page 19 You have now completed assembling your very own Monolift! Thank you for choosing Texas Strength Systems for your fitness needs. If you have any questions, comments, or concerns please don’t hesitate to contact our staff. Contact Information Email: wesz@texasstrengthsystems.com Phone: (210) 233-6110, (210)-920-4877...
