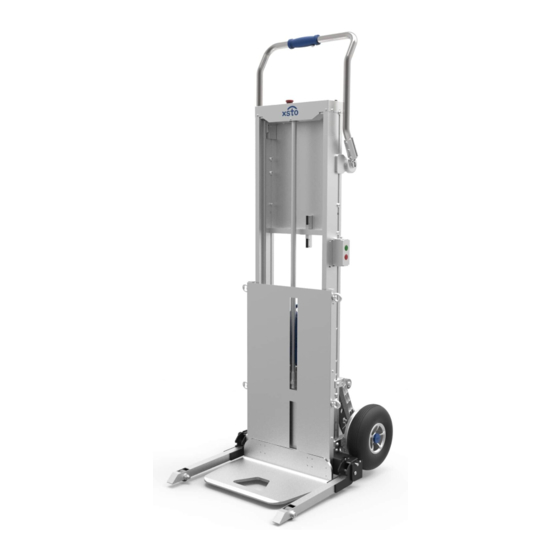

- Page 1 OPERATION MANUAL POWERED STAIR CLIMBER HANDLER SCL170A...
-
Page 3: Table Of Contents
User manual 1 Symbols and Safety Instructions ..............3 2 Description ......................5 2.1 The structure ................... 5 2.2 Technical Data ..................5 2.3 Application ....................5 2.4 Technical parameters ................6 2.5 Dimension....................9 2.6 Standard Accessories ................12 2.7 Optional Accessories ................ - Page 4 5 Routine Inspection and Issue Handling ............26 5.1 Routine Inspection and Issue Handling ..........26 6 Operation ......................27 6.1 Loading Goods ..................27 6.2 Operation On Flat Ground ..............28 7 Storage & Transportation ................30 8 Maintenance ..................... 30 8.1 Notice for routine maintenance ............
-
Page 5: Symbols And Safety Instructions
➢ Check the electric functions, battery capacity and SCL170A wheels before operation. ➢ Keep the SCL170A above 0℃ for at least one hour before operation. ➢ Read the technical parameters carefully. Do not overload. ➢ Only the trained person with physical and mental health is allowed to operate SCL170A. - Page 6 ➢ Do not use if the SCL170A tires are deflated or damaged. ➢ Do not use on the road with obstacles or on the slippery one.
-
Page 7: Description
8:Emergency stop switch 9:Control Handle 10:Wire Handle Controller 11: Ball Screw Shaft 12: Portable Lithium Battery 13: Motor Shell 14: Climbing S Arm 15: Aluminum Alloy Loading Board 2.2 Technical Data This manual is suitable for SCL170A series ONLY. 2.3 Application... -
Page 8: Technical Parameters
It can realize one-stop handling of goods from storage to application. 2.4 Technical parameters Model SCL170A Height: 1390 mm Width: Size Length: Main Device: 54.8 kg Weight Battery pack: 3.2 kg... - Page 9 Maximum Rise of 1025 mm Loading Board Load-free Ascending Speed 20s/m Load-free Descending Speed 20s/m Rated Load Ascending Speed 34 s/m Rated Load Descending Speed 19 s/m slow speed: 24 steps/min Rated Load Climbing Speed fast speed: 34 steps/min Battery 48V/10Ah (lithium battery pack) 48V 400W(climbing);...
- Page 10 Storing/operating temperature -5℃+35℃ /0℃+40℃ of battery Serial Number See the Nameplate Protection Level IP54 NOTICE ------ Rated working condition description: If the weight of the cargo exceeds the range of rated working condition, the load should be reduced, otherwise the equipment will be damaged or tipped.
-
Page 11: Dimension
2.5 Dimension 1390... - Page 12 unit：mm...
-
Page 14: Standard Accessories
unit：mm 2.6 Standard Accessories ① Main Body ② Charger ③ Wire handle controller ⑤ Lithium battery pack ④ Safety strap 2.7 Optional Accessories... -
Page 15: Installation Instruction
④ ① ② ③ Quick charger Car charging Safety strap Lithium converter Battery pack 3 Installation Instruction 1. Use M8x20 Hexagon socket head cap screws to mount the loading board or other loading components. 2. Insert the battery into the corresponding battery socket. -
Page 16: Functions Description
0℃ with no ice before initial operation CAUTION------ Please test and operate the SCL170A with no load first, and please use the SCL170A with load after confirming no abnormal situation CAUTION------ The continuous operating time rule of the motor... -
Page 17: Control Panel And Wire Handle Controller Operation Instructions
Hours/(Continuous Operating Hours + Continuous rest hours)≤65%],Rated load of 70% or above, the maximum continuous running time is less than 20 minutes. Rated load of less than 70%, the maximum continuous running time is less than 40 minutes. 4.1 Control Panel and Wire Handle Controller Operation Instructions. - Page 18 When the SCL170A needs to stop immediately in case of emergency, press the Emergency Stop Switch; Before resetting, the battery power must be restarted to ensure safety;when reset, rotate the switch. Auto ON/Auto OFF Slow/Fast Up/Down Emergency Stop Switch The operation of the wire handle controller is used to operate the lifting mode separately.
-
Page 19: Point Touch Switch On Adjustable Handle
Down 4.2 Point Touch Switch on adjustable handle After selecting the control panel and corresponding function, you can use Point the point touch switch on adjustable switch handle to control the equipment to lift up and down or control the equipment to go upstairs and downstairs. -
Page 20: Loading Board
4.3 Loading Board Move the cargo on the loading board and fix it with the safety strap. CAUTION------ When using the loading board to lift cargo, please ensure the gravity center of the cargo is within 2/3 of the loading board, or the equipment may be tipped. -
Page 21: Battery Charging
4.4 Battery Charging CAUTION------ Please Keep the socket dry! The battery of the SCL170A is a fast plug design. When placing the battery, insert the battery from top to bottom along the battery slide to contact with the battery base. -
Page 23: Climbing Upstairs
Insert the loading board under the cargo and keep the cargo stable (no shaking allowed), and then tighten the cargo to the SCL170A with the safety strap. 2. Press the brake rod to lose the brake. 3. Tilt the SCL170A and ensure it is balanced. -
Page 24: Going Downstairs
“up”. 5. Press the point-touch button to run the climbing motor, the climbing S arm will lift the SCL170A to the next step, so the operator just needs to hold the button and keep balance to prevent tipping. - Page 25 Release the point-touch button, the motor will stop. CAUTION------ Please hold the handrail tightly during up/down stairs, keep pressing down the SCL170A to keep balance when climbing up/down stairs.
-
Page 26: Loading Board Automatic Tracking Goods Stacking
4.8 Anti pinch function ① If any hard object touches the device during the rising process, the device will move upward slightly under pressure, trigger the travel switch, and the ascending process will stop immediately. 4.9 Loading board automatic tracking goods stacking The automatic adjustment mode of the height of the loading board, which is usually used to carry multiple stacks of goods. - Page 27 the automatic adjustment mode of the height of the loading board. (1) When the mode is just started, the loading board will reset itself. When the mode is started, if the loading board is above the lower sensor, when performing automatic reset, it will automatically rise to the upper limit, and then automatically descend to the target height, and the automatic positioning is completed.
-
Page 28: Routine Inspection And Issue Handling
WARNING------Please inspect and test the SCL170A with no load before using, and please stop using and contact the local dealer or manufacturer to inspect and repair if the following occurs: (1) Low power warning even the battery is fully charged. -
Page 29: Operation
WARNING------ Overloading is strictly prohibited! WARNING------ When using, keep anybody and any item off the front of the SCL170A and make sure nothing is under the loading plate to avoid any injury and property loss caused by loads falling or machine tipping. -
Page 30: Operation On Flat Ground
2/3 position of the plate and should be tied with straps. 6.2 Operation On Flat Ground The SCL170A can use its handle to achieve flat ground with its solid tires and caster legs. In case of uneven road, please tilt SCL170A and use solid tires to move. - Page 31 NOTE: Be sure to turn off the power switch during ground operation to avoid incorrect operation.
-
Page 32: Storage & Transportation
0 °C ~ 30 °C, and away from the damp (water), strong magnetic environment. For a short-time storage, the lift of SCL170A can be placed next to the wall and the wheels on the support arm(S-shape) should be fixed to avoid rolling. - Page 33 CAUTION------Do not operate the SCL170A with wet hand! NOTICE------ Keep SCL170A away from wet condition! NOTICE------ Charge the battery pack after each use! NOTICE------ Keep the charger and charging cable away from oil; grease; aggressive detergents, diluents or any destructive items!
-
Page 34: Replacement For Vulnerable Parts & Battery
NOTICE——Please change the grease in time! 8.2 Replacement for Vulnerable Parts & Battery NOTICE--Vulnerable parts are not covered by warranty. Replacement for solid tires Remove the damaged solid tire and replace it. When taking it down, you only need to take down the hexagon socket head screw with the hexagon wrench.The installation process is the same. - Page 35 Replacement for battery Since the battery has a life cycle, when the battery power drops below the baseline, a new one is required. Please send the used battery to the local dealer or the manufacturer. (Please do not discard the battery to cause pollution) Please read the maintenance manual to learn more about vulnerable parts replacement.
- Page 36 The battery pack and charger should be packaged for transport, prevent excessive vibration, shock or extrusion in transport process and prevent the sun and rain. （3） Maintenance a） The battery pack should be stored in 40%〜60% charged capacity. b） If battery pack is not used for a long period, it should be charging completely and discharging completely one time for every three month，then charge the battery pack to about 50% capacity, use the specific charger,.
- Page 37 Battery pack is fully firm or not； charged Battery pack can be used normally f）Warranty period Warranty period of this product is 12 months from delivery date.Cycles:500 times, capacity≥80%. （4）Battery Handling Precautions *Forbid to immerse battery in water or get wet! *Don't charge, use and store battery near a heat source such as fire and heater! If the battery leaks or releases strange odor, please remove it from near fire place immediately.
-
Page 38: Recycling
*Forbid to disassemble by yourself. 9 Recycling The products of the XSTO CO.,LTD. are with long durability. However, if your machine is reaching the end of its lifespan you may return its components to XSTO CO.,LTD. or the distributor... -
Page 40: Malfunction And Troubleshooting
SCL170A abnormal If there is abnormal sound from the sound SCL170A during the running process, please unload the cargo and check if there is any object stuck inside of the sliding track (please disconnect the electricity when doing the check to avoid any injury). -
Page 41: Warranty And Responsibility
Please contact supplier for a new and other damage of the support arm (s-shape). support arm(s-shape) of SCL170A 11 Warranty and Responsibility 11.1 Warranty The warranty of the motor, decelerator, battery and control panel as well as main device is 12 months; The warranty of the switch is 3 months. -
Page 42: Responsibility
⚫ Damage caused by dismantling by others (except the warranty party) 11.2 Responsibility The manufacturer is not responsible for any damage to the SCL170A caused by the following cases. ⚫ Inappropriate operation ⚫ Repair or dismantle the equipment without authorization ⚫ Do not follow the operating manual ⚫... - Page 44 XSTO CO.,LTD. www.xsto.net +86-760-28207258 info@xsto.net Floor 1, Building C, 555 Plant. Ma’an Cun Rd, Cuiheng New District, Zhongshan City, Guangdong, China...
