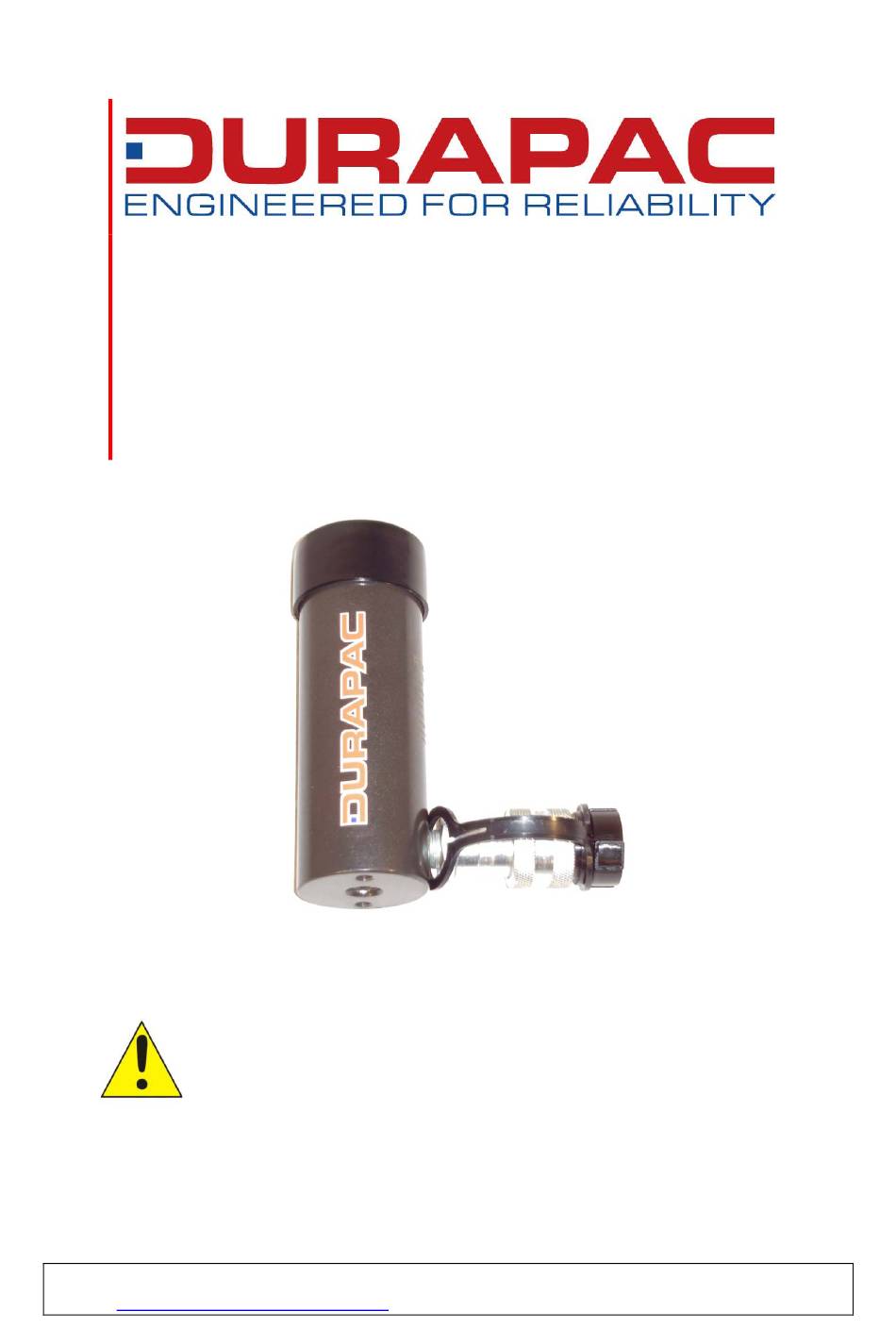

Instruction Manual
Single Acting Hydraulic Cylinder,
Collar Threads - RG Series
This is a safety alert symbol. It is used to alert you to potential personal injury
hazards. Obey all safety messages that follow this symbol to avoid injury or death.
Absolute Equipment Pty Ltd – 5 Newtown Street, VIRGINIA QLD 4014 – Australia
sales@absoluteequipment.com.au
– Phone: +61 7 3865 4006 – Fax: +61 7 3102 6288
Advertisement
Table of Contents
Related Manuals for Durapac RG 5 Ton Series
Summary of Contents for Durapac RG 5 Ton Series
- Page 1 Instruction Manual Single Acting Hydraulic Cylinder, Collar Threads - RG Series This is a safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid injury or death. Absolute Equipment Pty Ltd –...
-
Page 2: Product Description
The user must ultimately make the decision regarding suitability of the product for any given task and assume the responsibility of safety for him/her and others in the work area. Contact Durapac if you are unsure of your cylinders suitability for a particular application. - Page 3 The operator is responsible for this activity towards other persons. IMPORTANT: Hydraulic equipment must only be serviced by a qualified hydraulic technician. For repair service, contact the Durapac Service Centre in your area. To protect your warranty, use only high quality hydraulic oil.
-
Page 4: Installation
Eliminate the presence of side load forces when using high tonnage cylinders. Side load can occur through: 1. An eccentric load on the piston rod 2. A horizontal load on a structure 3. A structure and / or cylinder misalignment 4. Non stable cylinder base support www.durapac.com Page 4... -
Page 5: Maintenance
Maintenance is required when wear or leakage is noticed. Periodically inspect all components to detect any problem required service and maintenance. Important equipment must only be serviced by a qualified hydraulic technician. For repair service, contact your local Durapac service centre. 1. Check for loose connections and leaks 2. -
Page 6: Troubleshooting
4. Fill and bleed the system pump reservoir 5. Air-locked pump 5. Prime pump per pump operating instructions 6. Check pump’s operating 6. Pump not operating instructions 7. Load is above the capacity of 7. Use the correct equipment the system www.durapac.com Page 6... -
Page 7: Parts Breakdown And List
* 4 O-Ring 5 Spring Component * 6 Copper Washer * 7 Bolt 8 Stop Ring * 9 Wipers 10 Saddle * 11 Bolt 12 Fast Coupler 13 Handle * 14 Bolt Fig. 3 - RG 50/75/100 Ton Series www.durapac.com Page 7... - Page 8 * 9 Wipers 10 Saddle 11 Fast Coupler Fig. 6 - RG 50 Items marked with a * are contained within a standard Repair Kit – Serial number and model need to be quoted when ordering parts. www.durapac.com Page 8...
