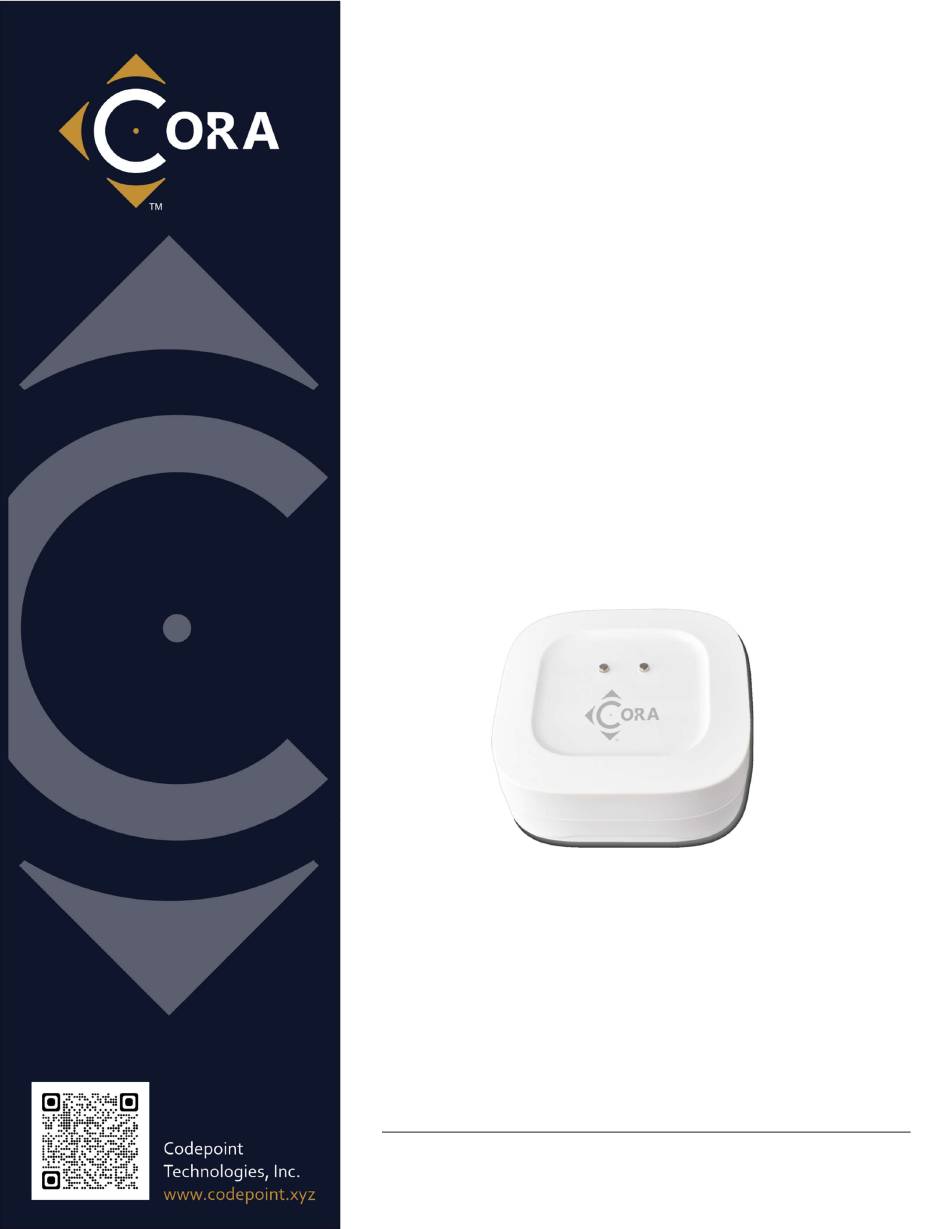

- Page 1 CS1010 Long Range Leak Sensor User Guide Long-range, low-power water leak sensor supporting LoRaWAN or Coralink wireless protocols. Ideal for applications in smart-building, home automation, metering, and logistics. Version: 1.1 February 2022...
-
Page 2: Table Of Contents
CS1010 Long Range Leak Sensor – User Guide Contents Getting Started ........................... 3 What’s In the Box ........................3 Attaching to the Network ......................4 User Interface ......................... 4 Set Button ........................... 4 Status Indicators ......................... 6 About LoRaWAN ........................6 Terminology .......................... -
Page 3: Getting Started
CS1010 Long Range Leak Sensor – User Guide Getting Started The CS1010 is a long-range, low-power water leak sensor supporting LoRaWAN or Coralink wireless protocols. The sensor supports configurable real-time notifications and/or regular reported statistics. Deploy the sensor in hard-to-reach places: under water tanks, basements, bathrooms, attics. -
Page 4: Attaching To The Network
Reminders and other configurations options are available. Note: If the CS1010 has not joined within a few minutes, the LED will stop blinking, though it will continue try to join: ten times in the first hour, then longer intervals over the first week until finally attempting once every 12 hours. - Page 5 CS1010 Long Range Leak Sensor – User Guide Figure 3 – Performing Network or Factory Reset on the Leak Sensor Holding the button will perform a network or factory reset: Network Reset – Press and hold the SET button for 10 seconds, but less than 25, then release.
-
Page 6: Status Indicators
UDP (unconfirmed) protocols used for IP networks. Before a device, such as the CS1010 Leak Sensor can transmit messages using LoRaWAN it must go through a “join” process. The Join process involves key-exchange with the cloud-hosted network provider (The Things Network, Helium, etc.) and is defined in the LoRaWAN protocol standard. -
Page 7: Installation
CS1010 Long Range Leak Sensor – User Guide Installation Place the leak sensor where a leak or flooding may occur. Suggested Applications Basement Floors Under Laundry Machines Under Dishwashers Under Refrigerators (w/Ice Machines) Near Sump Pumps ... -
Page 8: Event Notifications And Reports
CS1010 Long Range Leak Sensor – User Guide Event Notifications and Reports The CS1010 Leak Sensor has three event notifications: Leak Detected – Sensor has detected a leak (default enabled). Leak Cleared – Sensor no longer detects a leak (default enabled). -
Page 9: Replacing The Batteries
CS1010 Long Range Leak Sensor – User Guide Replacing the Batteries A small Philips screwdriver and tweezers are needed to replace the batteries. TO MAINTAIN THE WATERTIGHT DESIGN OF THE LEAK SENSOR, USE EXTREME CARE AND FOLLOW THE BATTERY REPLACEMENT INSTRUCTIONS CLOSELY. - Page 10 CS1010 Long Range Leak Sensor – User Guide Page 10...
-
Page 11: Configuration And Integration
CS1010 Long Range Leak Sensor – User Guide Configuration and Integration The CS1010 supports the following settings and features, which are configured via downlink messages. Configuration Description Units Default Leak Notification How often the leak reminder minutes Reminder Interval notification is uplinked. -
Page 12: Specifications
CS1010 Long Range Leak Sensor – User Guide Specifications LoRaWAN v1.03 Class A, Coralink™ Class A device U.S. 923 MHz, E.U. 868 MHz, China 470 MHz, and other frequencies available Color: White Dimensions [L x W x D]: 2.44 x 2.44 x 0.96 inches (62 x 62 x 24.5 mm) ... -
Page 13: Ordering Information
CS1010 Long Range Leak Sensor – User Guide Ordering Information Communication Options Prior to ordering, determine the communication requirements: Application Protocol: Untethered XMF or CP-Flex OCM Network Protocol: LoRaWAN or Coralink Operating Region and Frequency: US915, EU868, CN470 (others available upon request) ... - Page 14 TTN sub-band 2. CS1010-UL-EU8ST-01 – Leak sensor for Europe region, untethered, standard configuration, packaged for solution provider distribution. CS1010-CL-US9HT-00 – Leak sensor configured for Cora OCM and CP-Flex cloud stack integration, Supports OCM V2 protocol specifications. Page 14...
-
Page 15: Fcc Statement
CS1010 Long Range Leak Sensor – User Guide FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
