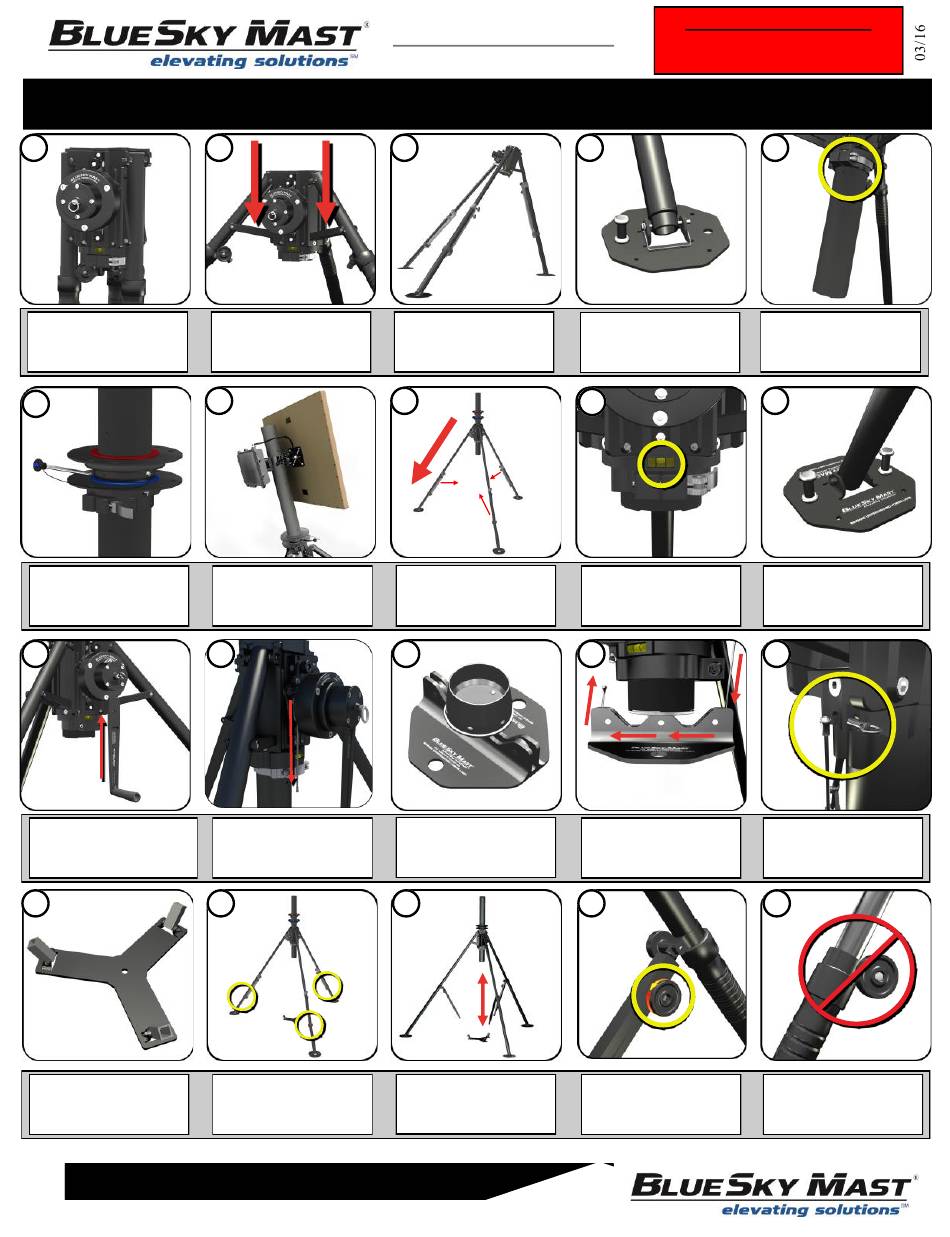

BlueSky Mast AL3 Series Quick Reference Sheet

AL3 Lift Series - Deployment Quick Reference Sheet
1
Stand the tripod up and release
the large Velcro Strap at the
bottom.
6
Add the Blue Secondary Guy
Ring then the Red Primary Guy
Ring. DO NOT secure them.
11
Attach the winch handle. Pay out
the cable by turning the winch
handle counter clockwise
16
Locate the STRUT BASE
PLATE and place it directly
under the tripod.
Do Not Duplicate, Alter, or Copy without the Express Written Consent
of BlueSky Mast, Inc. Copyright 2013 Allendale LLC All Rights Reserved
2
Open the tripod legs and lock
the cross bars. Push them all
the way down to fully engaged.
7
Mount your equipment to the
mounting pole, connect and
secure all cables.
12
The cable should hang freely on
the left side of the winch and
should not go over anything.
17
Release the Velcro strap hold-
ing the tripod struts on each of
the 3 tripod legs.
support@blueskymast.com
3
Extend the 2 tripod legs adja-
cent to the winch. DO NOT
extend the tilt leg at this time.
8
Extend the tilt leg and tighten
the turn knob. Make sure all
tripod struts are facing inward.
13
Locate the LIFT BASE PLATE
and insert it into the bottom of
the mounting pole.
18
Center the strut base plate
under the tripod and align with
the 3 tripod struts.
Read Manual Before Use
Refer to detailed instructions in the
AL3 Lift Series Manual at all times
4
Stake ONLY the LEFT HOLES
on the base plates of the 2
extended tripod legs.
9
9
Level the tripod by adjusting the
tripod legs. Make sure all 3
bubble levels read level.
14
Pass the cable through the 2
rollers on the lift base plate.
19
Loosen the turn knobs on the
STRUTS and extend them
towards the strut base plate.
5
Insert the mounting pole until 1
hole is showing below the cam
lock and lock the cam lock.
10
Stake the remaining holes on all
3 tripod legs.
15
Pull the pin to secure the ball
stop. Confirm the cable is taut
and the lift base plate is secure.
20
DO NOT loosen the turn knobs
on the tripod legs.
