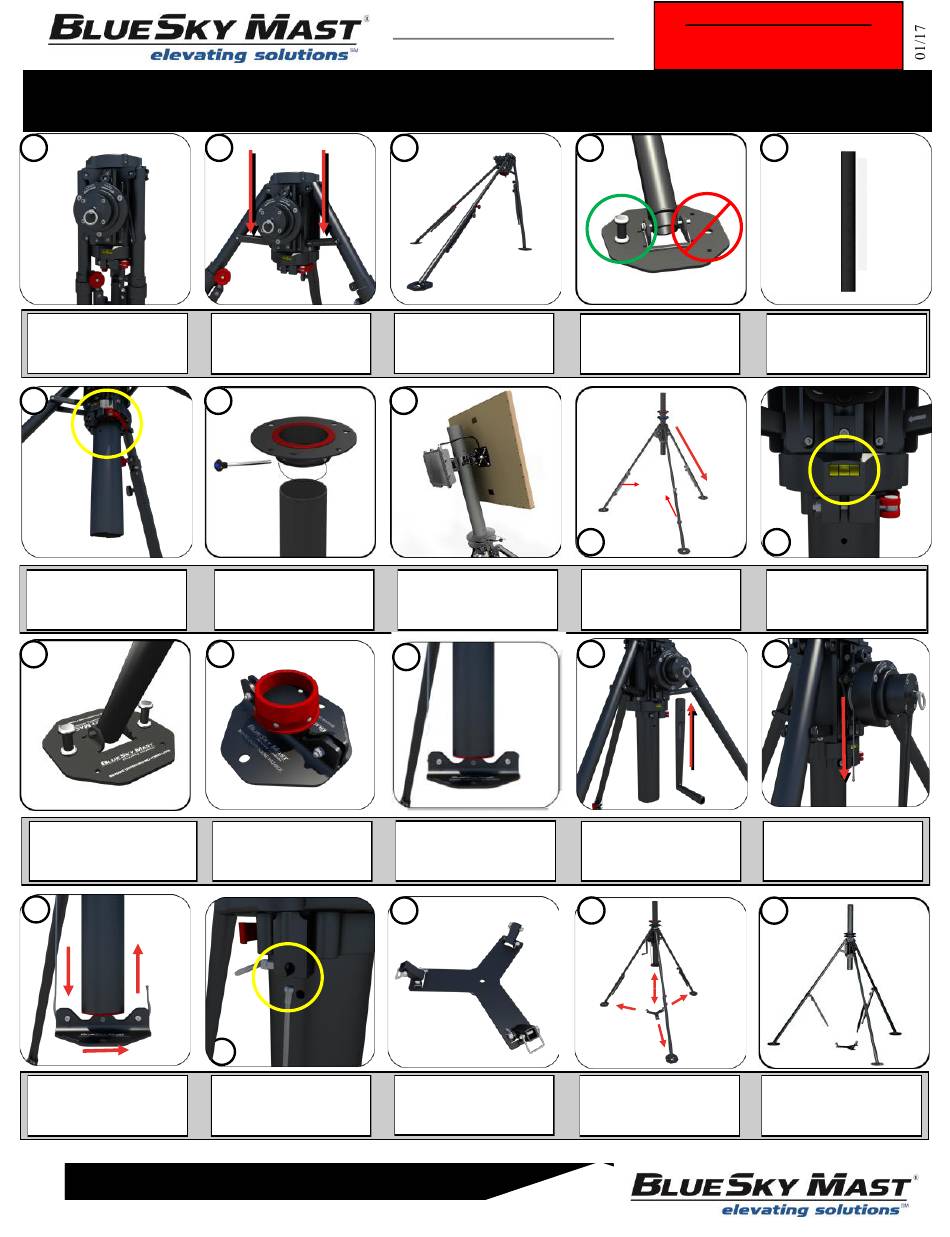

BlueSky Mast AL350G Series Quick Reference Sheet

1
Stand the tripod up and release
the large Velcro Strap at the
bottom.
6
Insert the mounting pole until 1
hole is showing below the cam
lock and lock the cam lock.
11
Stake the remaining holes on all 3
tripod legs.
16
Pass the cable through the 2
rollers on the lift base plate and
back up to the ball stop holder.
Do Not Duplicate, Alter, or Copy without the Express Written Consent
of BlueSky Mast, Inc. Copyright 2016 Allendale LLC All Rights Reserved
Quick Reference Sheet - Primary Guying
2
Open the tripod legs and lock
the cross bars. Push them all
the way down to fully engaged.
7
Add Red Primary Guy Ring.
DO NOT secure it at this time.
12
Locate the LIFT BASE PLATE .
17
Pull the pin to secure the ball
stop. Confirm the cable is taut
and the lift base plate is secure.
support@blueskymast.com
AL350G Lift Series

DEPLOYMENT

3
Extend and tighten the 2 tripod
legs adjacent to the winch.
DO NOT extend the tilt leg.
8
Mount your equipment to the
mounting pole, connect and
secure all cables.
13
Insert the lift base plate into the
bottom of the mounting pole.
18
Locate the STRUT BASE
PLATE.
Read Manual Before Use
Refer to detailed instructions in the
AL350G Lift Series Manual at all times
4
Stake ONLY the LEFT HOLES
on the base plates of the 2
extended tripod legs.
9
Extend the tilt leg and tighten
the turn knob. Make sure all 3
tripod struts are facing inward.
14
Attach the winch handle. Pay
out the cable by turning the
winch handle counter clockwise
19
Center the strut base plate
under the tripod and align with
the 3 tripod legs..
5
Locate the mounting pole. It's
the only pole without a gold
insert.
10
Level the tripod by adjusting the
tripod legs. Make sure all 3
bubble levels read level.
15
The cable should hang freely on
the left side of the winch and
should not hang over anything.
20
Release the Velcro straps
holding the tripod struts on each
of the 3 tripod legs.
