BESTTEN USR-2A1R-1B User Manual

R
BESTTEN
INDOOR WIRELESS REMOTE CONTROL OUTLET
User Manual
Model: USR-2A1R-1B
Product:

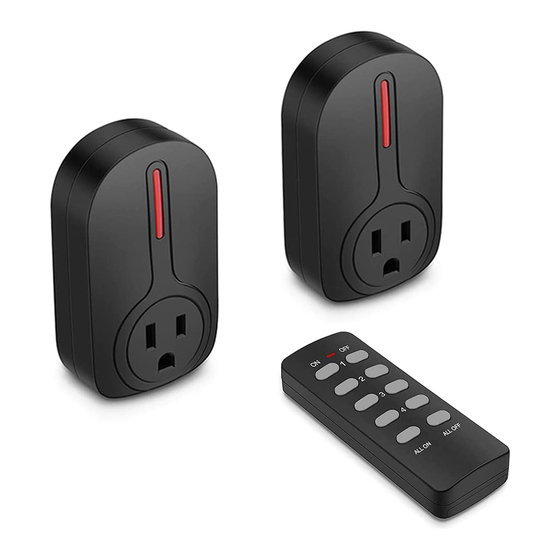

This set consists of two remote controlled sockets, one remote
control and one 23A (12V) alkaline battery.
Features:
- Each socket receiver can be switched via the remote control or
switched manually on the socket.
- Individual ON and OFF functions on the remote control.
- Easy to use and operate - use one remote control to control a
single socket or program more than one BESTTEN remote
control socket or lamp holder to this remote.
- Very low standby power consumption reduces energy costs
when not in use.
- The socket will remain off after a power interruption reducing fire
5 risk and saving power.
- Self-learning function, extra remote control or socket can be
purchased and matched to existing units. If you have this
requirement, please contact Bestten Customer Service for more
details.
Installation:
- Install a Bestten 23A (12V) alkaline battery in the remote control,
making sure the polarity +/- is correct.
- Plug the socket into a power outlet, and plug a device into it.
- Please use the first two pairs of buttons marked 1 and 2 on the
remote to control the socket.
Product illustration:
Socket
Self-Learning Operation:
If any additional BESTTEN remote control socket is to be paired to
your remote, please follow the steps bellow:
- Plug the socket into a power outlet
- Press and hold the ON/OFF button on the socket until the indicator
light on the unit begins to blink;
- Release the button and press the ON or OFF button for any desired
number on the remote.
- Programming is complete when the indicator light on the socket
stops blinking.
- You can use any desired button to control a single socket or control
all sockets simultaneously.
5
Remote Control
