BESTTEN USR-4A1R-2W User Manual

R
BESTTEN

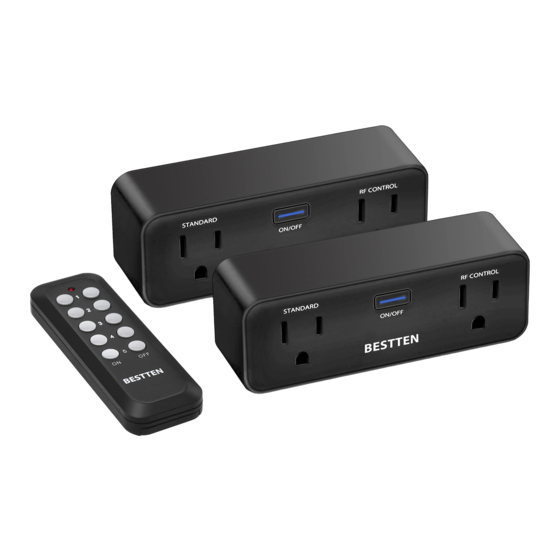

Indoor Wireless Remote Control Outlet Set
STANDARD RF CONTROL
ON/OFF
STANDARD RF CONTROL
ON/OFF
User Manual
Model: USR-4A1R-2W
Product
This set consists of two remote controlled sockets, one remote
and one 23A (12V) alkaline battery.
Extra remotes or sockets can be purchased separately.
The Self-Learning function matches additional components to
existing units. For additional remotes or sockets, please contact
BESTTEN Customer Service for more details.
1
Working voltage for socket
2
3
4
5
ON OFF
Remote Battery
Installa�on
- Install a BESTTEN 23A (12V) alkaline battery in the remote,
making sure the polarity +/- is correct.
- Plug each socket into a power outlet, and plug a device into
each socket.
- The first 2 groups buttons on the remote can turn on or off the
RF control socket.
- The "STANDARD" socket is always ON. The "RF CONTROL"
socket can be switched via the remote or switched manually
via the "ON / OFF" button.
- Individual ON and OFF functions on the remote.
- Easy to use and operate - use one remote to control a single
socket. All 5 groups buttons can be programmed to turn on
or off the RF control socket.
- Very low standby power consumption reduces energy costs
5 h
when not in use.
- The "RF CONTROL" socket will remain OFF after a power
h
interruption, reducing fire risk and saving power.
15A
1875W
110 Feet (line of sight)
23A(12VDC) alkaline battery
The frequency code can be found on each outlet in the following format from 1-2:
xxxx-1 and xxxx-2. The number 1, 2 is corresponding to the group buttons 1, 2 on
the remote. The remaining 3 goups buttons can be programmed to control additional
outlets.
Features
Indicator Light
ON/OFF Button
STANDARD RF CONTROL
ON/OFF
Always ON RF Control
1
2
3
4
5
ON OFF
