Vaniman ABRASIVE-VAC Quick Start Manual

PACKING LIST

1 - Abrasive-Vac unit
1 - Power Cord (1422)
1 - Foot Remote (1443)
1 - Pre-Filter/Accumulator (VMC-A300)
1 - 2½"x 3' Hose with 1½" Hose End (VMC-1023A &1008)
1 - 2½"x 6' Hose with 1½" Hose End for Blaster (VMC-1023B)

ASSEMBLY INSTRUCTIONS

1. Remove the Abrasive-Vac and other parts from the two boxes and check against the packing list.

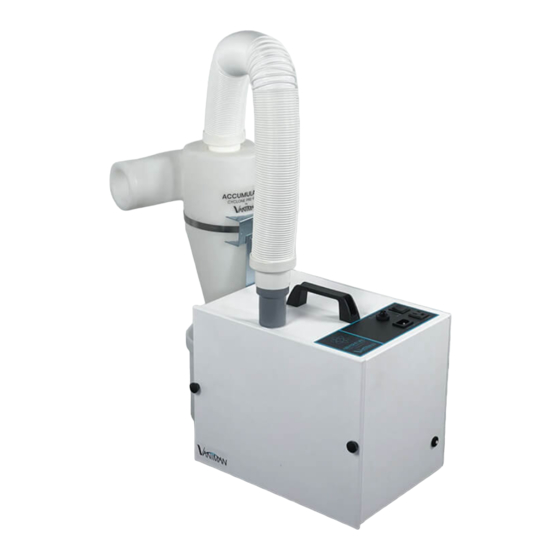

2. Mount the Accumulator angle bracket on the vacuum unit as shown by using the two screws
provided on the side of the unit. Assemble the Accumulator to the bracket with the circular clamp
provided. Rotate the Accumulator to best route the hose and then tighten the clamp.

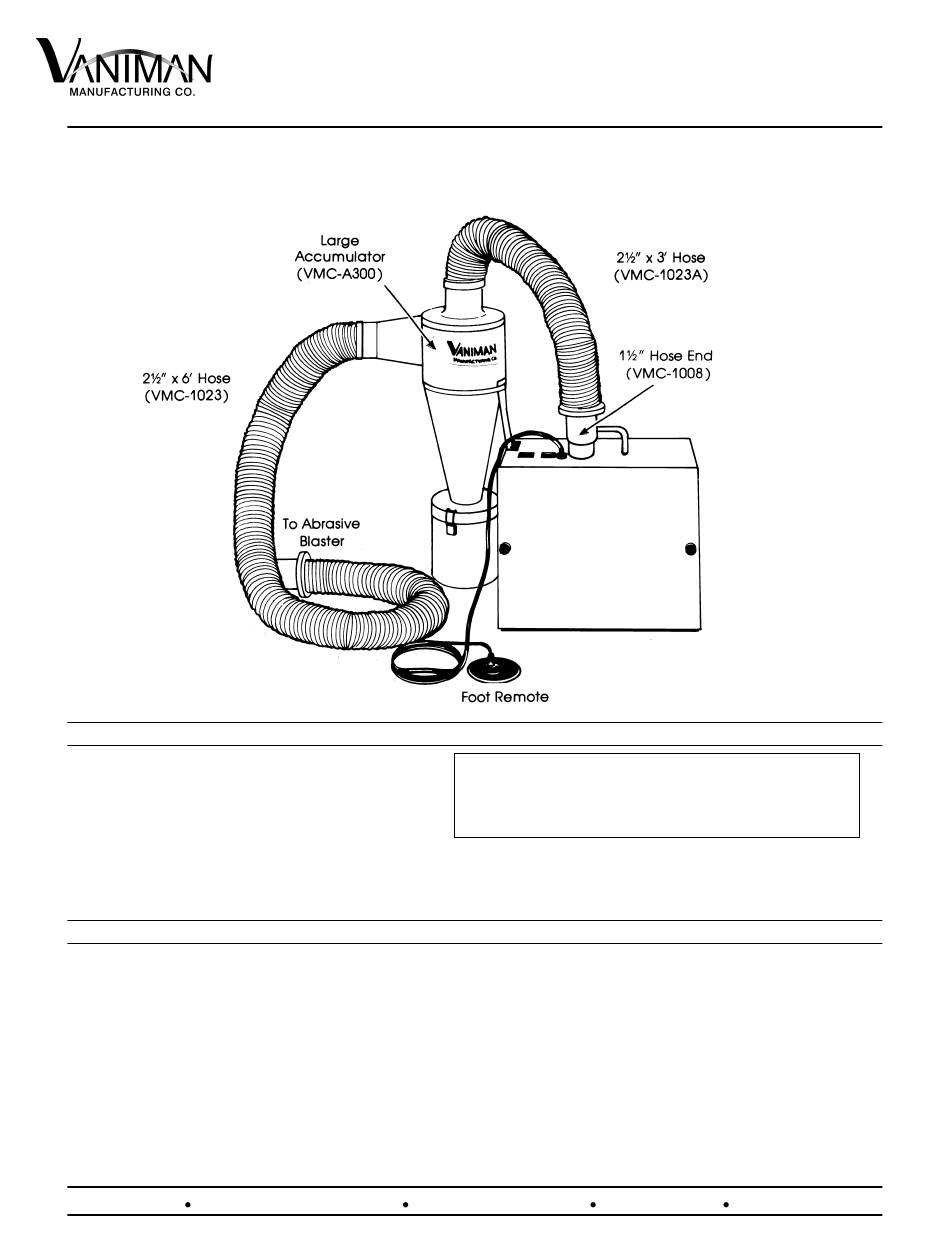

3. Assemble the shortest hose with 1-1/2" hose end (VMC-1023A) to the vacuum unit and the other end
to the top of the 3" Accumulator. Gently rotate and push the hose end into the black foam gasket.
Moistening the foam with a small amount of water will help. Connect the other hose (VMC-1023B)
from the side of the Accumulator to the abrasive blaster. For connection to the Sand Storm, use the
light grey hose end. For 2-1/2" hose connection, remove the grey hose end and use the remaining
