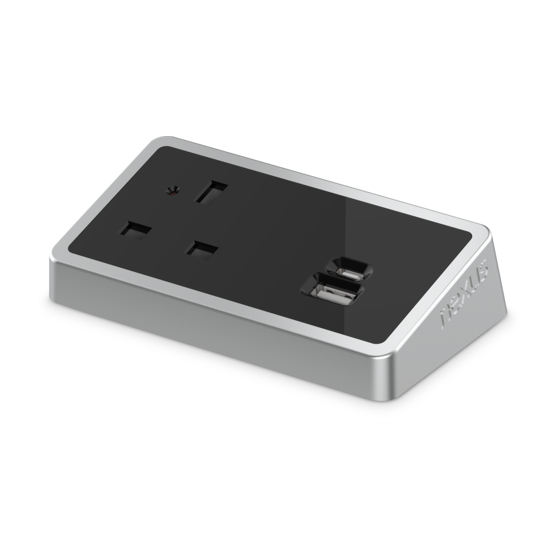

In-desk power module
OSL103 instructions
Safety warning
For your safety, this product must be installed in
accordance with local Building Regulations. If in
any doubt, or where required by the law, consult
a competent person who is registered with an
electrical self-certification scheme. Wiring should
be in accordance with the latest edition of the IET
regulations (BS 7671) . If the unit is being installed
in an office environment by means of a 13A plug
please ensure BS6396 is adhered to.
Please read carefully and use in accordance with
these safety wiring instructions.
Before commencing any electrical work ensure the
supply is switched off at the mains. To prevent fire
hazard always use cable of the correct rating & type
for the application.
Warning do not exceed the load rating of this
device as stated on the rear of the product.
Built in protection
This product has been designed to protect
connected equipment as well as end user.
Each socket outlet has protection in the form of a
3A resettable thermal fuse that detects overloads or
any defective equipment that may be connected.
continued...
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Nexus OSL103
Summary of Contents for Nexus OSL103
- Page 1 │ below-desk │ beyond-desk In-desk power module OSL103 instructions Safety warning For your safety, this product must be installed in accordance with local Building Regulations. If in any doubt, or where required by the law, consult a competent person who is registered with an electrical self-certification scheme.
- Page 2 Connecting to the power supply Push the GST connector from the OSL103 in to a NEX1003xx Starter Lead (fig. 1) or NEX3001 Power Module (fig. 2) until the clip engages and you hear a “click”.
- Page 3 fig. 2 “click” Resetting the built in protective device If there is no power due to an overloaded socket or defective equipment being connected, the built in protection switch will operate. A red indicator will be raised and the protection switch will need resetting.
- Page 4 Confirm the red indicator beneath the plug is visible. Locate reset tool and insert in to the reset opening. Push until it clicks. continued...
- Page 5 Remove tool. Once the fault has been investigated and rectified reconnect the equipment. USB operating guidelines USB smart charging technology detects the connected devices and adjusts the charging pattern and output to suit. When the device is fully charged the USB outlets revert to low energy standby mode. The smart technology constantly monitors the charge output and will shut down in the event of any overload condition, thus protecting the...
- Page 6 capacity of the device and not charge output of the socket. The total output current achieved is dictated by the specific device being charged and other external factors, such as the quality of charging cable being used. For more information and trouble shooting visit our website FAQs.
- Page 7 Technical Voltage: 220-250V ac Standards: Tested to BS5733, Frequency: 50/60Hz BS1363-2 Rating: Connectors: 1 socket: 3A 720W 1 socket (OSL103x1x, 2 socket: 6A 1440W OSL103x3x), 3A individual resets (2 2 sockets (OSL103x2x), resets for OSL103x2x 3 pole GST18 input models) Mounting options: Construction: Standalone using included...
-
Page 8: Service Conditions
Service conditions This module is only suitable for use under the following conditions of service: An ambient temperature range of -5°C to +40°C, with an average value not exceeding +35°C over one full day. An altitude not exceeding 2000m above sea level. -
Page 9: Environmental Protection
Address / Helpline If you need further technical assistance you can get in touch with our Technical Helpline on +44 (0)3300 249 279 email: support@nexus.uk Luceco PLC (EU) Luceco SE Stafford Park 1 C/ Bobinadora 1-5 Telford TF3 3BD 08302 Mataró...
