Tynetec Aidcall ZXT478 Instructions

__________________________________________________________________________________________________________

What can the Property Exit Sensor be used for?

The property exit sensor is used to raise an alarm if a resident leaves their home or if they accidently leave their front door open.
It works by monitoring a combination of the front door being opened/closed and movement in the hallway.
Scenario 1: if the door is opened and closed followed by movement in the hallway it is assumed a visitor has entered or the
resident has answered a call at the door and no alarm is raised.
Scenario 2: if the door is opened and closed followed by no movement in the hallway it is assumed the resident has left their
home and a "door exit" alarm will be raised.
Scenario 3: if the door is opened and left open followed by no movement in the hallway it is assumed the resident has left their
home and a "door exit" alarm will be raised.
Scenario 4: if the door is opened and left open followed by movement in the hallway it is assumed the resident has left their door
open and a "door open" alarm will be raised.
For a visitor to leave without raising an alarm they must first open the door then swipe the PIR down the right hand side with the
magnetic fob then close the door behind them.
The PIR only begins to look for activity AFTER the door is opened - the time period the PIR is active for is
adjustable from 10 seconds to 90 minutes. If the PIR is not activated during this period an alarm call is raised.

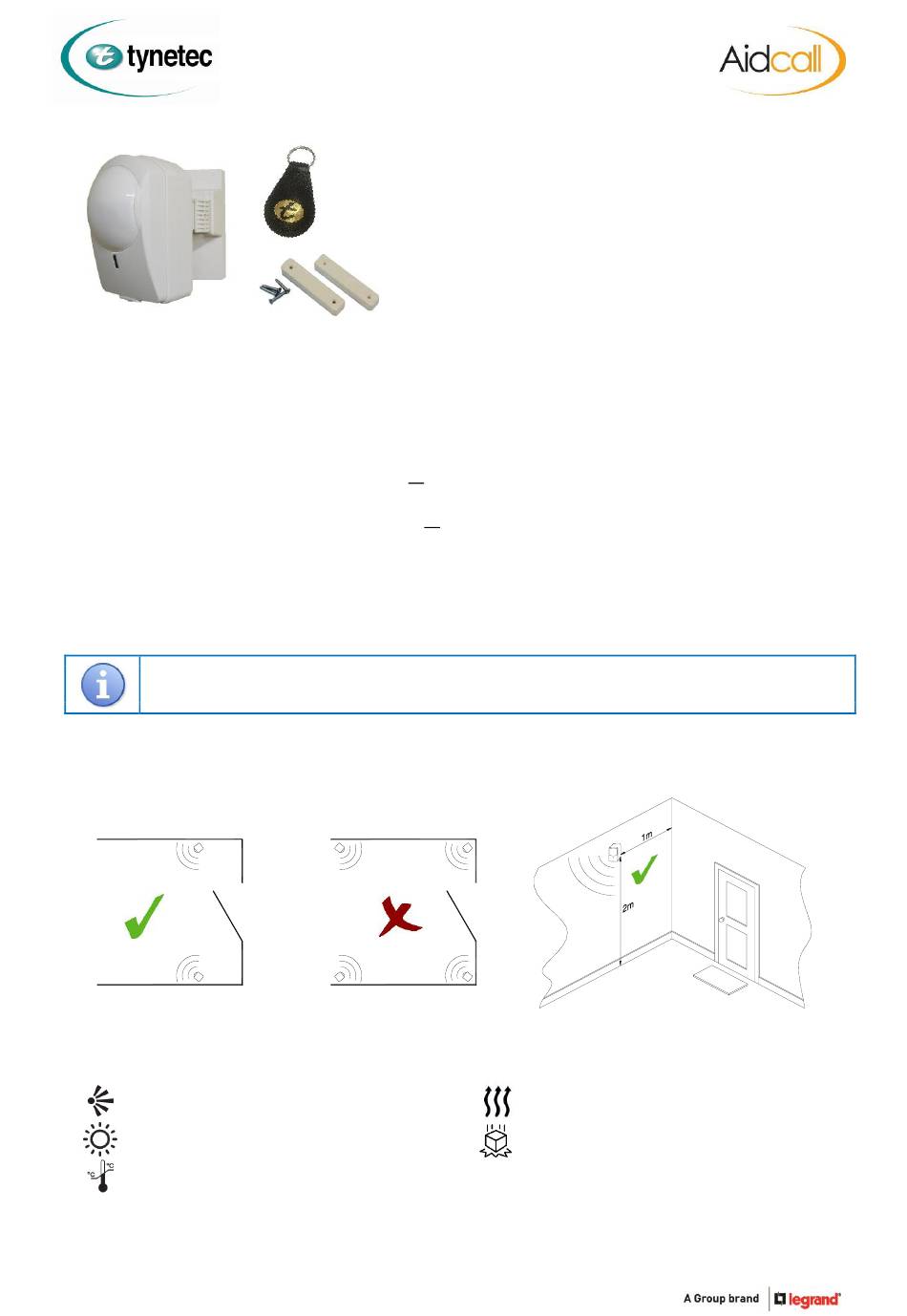

Where should the Property Exit Sensor be fitted?

Use the wall mounting bracket provided and fix the PIR approx 2 metres high and approx 1 metre inside the front door.
The PIR should be adjusted to point down the hallway AWAY from the door, see below;
If there are pets in the home the PIR should be mounted at low level (1m) and the PCB should be set to the PET ALLEY position.
The door contact should be fitted on the front door and wired back to the PIR using the cable provided.
Avoid placing items in front of the PIR detector
which may restrict its field of view
Do not expose the PIR detector to direct sunlight
or powerful lights
Do not expose the PIR detector to rapid variation
in temperature
Doc No. FM0626 issue C Page 1
169MHz Telecare Devices
Property Exit Sensor
•
Compatible with Reach at-home alarms and
Altec Response local carer alarms
•
PIR detector, wall bracket, door contact & magnetic exit fob
•
Adjustable alarm delay: 10 seconds to 90 minutes
•
User replaceable 9V PP3 Lithium battery
•
Low battery warning
•
PIR dimensions: 114mm x 70mm x 76mm (HxWxD)
•
PIR weight inc battery & bracket: 280 grams
•
Product Code: ZXT478
Do not expose the PIR detector to wind, air
conditioning or heating
Do not drop the PIR detector or expose to high
vibration or shock
Tynetec and Aidcall are business units of Legrand Electric Ltd
Unit 10 Cowley Road, Blyth Riverside Business Park, Blyth
Northumberland, NE24 5TF. Tel:
Email: sales@tynetec.co.uk Web: www.tynetec.co.uk
01670 352 371
