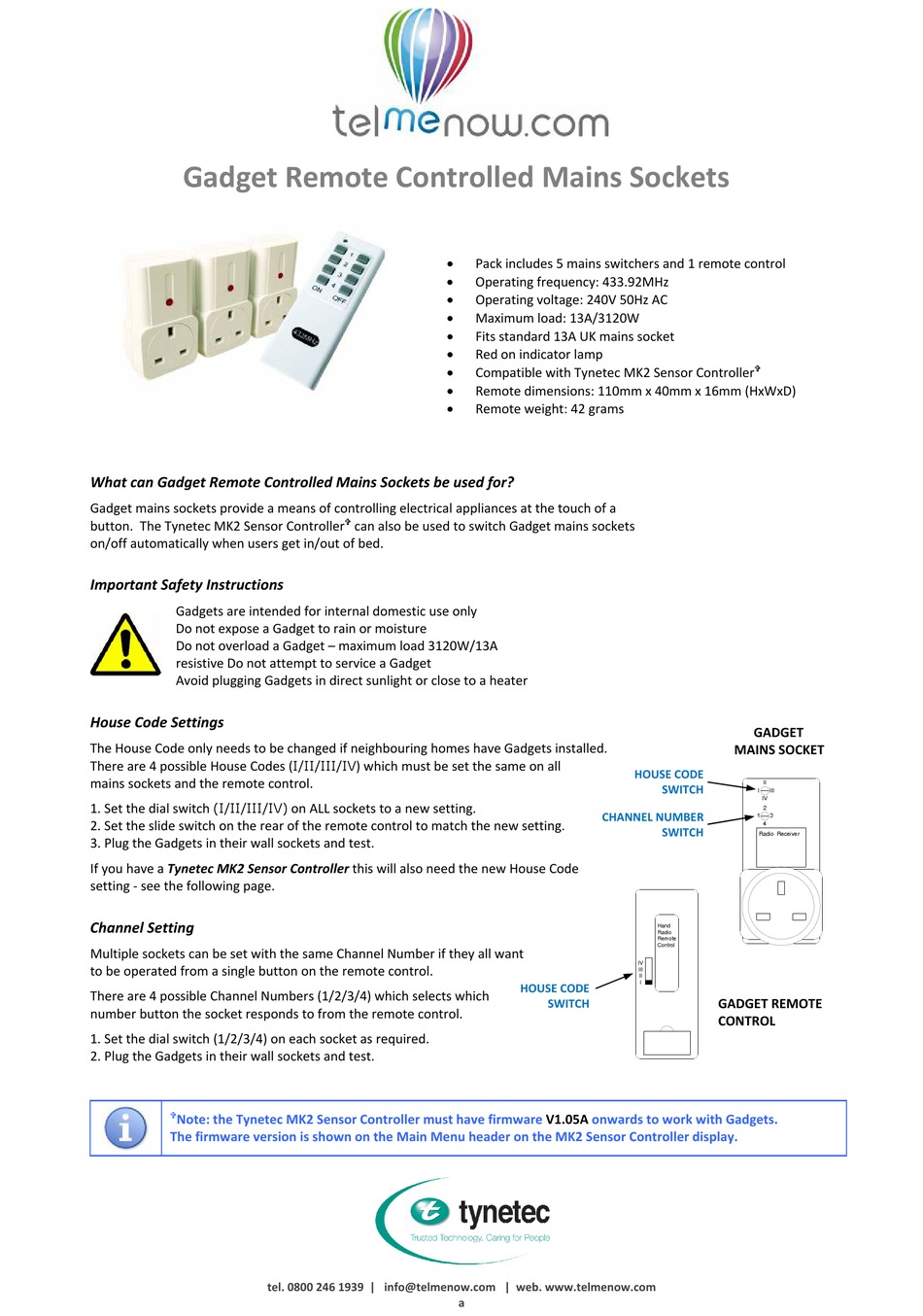

Gadget Remote Controlled Mains Sockets
What can Gadget Remote Controlled Mains Sockets be used for?
Gadget mains sockets provide a means of controlling electrical appliances at the touch of a
button. The Tynetec MK2 Sensor Controller
on/off automatically when users get in/out of bed.
Important Safety Instructions
Gadgets are intended for internal domestic use only
Do not expose a Gadget to rain or moisture
Do not overload a Gadget – maximum load 3120W/13A
resistive Do not attempt to service a Gadget
Avoid plugging Gadgets in direct sunlight or close to a heater
House Code Settings
The House Code only needs to be changed if neighbouring homes have Gadgets installed.
There are 4 possible House Codes (
mains sockets and the remote control.
(I/II/III/IV)
1. Set the dial switch
2. Set the slide switch on the rear of the remote control to match the new setting.
3. Plug the Gadgets in their wall sockets and test.
If you have a Tynetec MK2 Sensor Controller this will also need the new House Code
setting ‐ see the following page.
Channel Setting
Multiple sockets can be set with the same Channel Number if they all want
to be operated from a single button on the remote control.
There are 4 possible Channel Numbers (1/2/3/4) which selects which
number button the socket responds to from the remote control.
1. Set the dial switch (1/2/3/4) on each socket as required.
2. Plug the Gadgets in their wall sockets and test.
Note: the Tynetec MK2 Sensor Controller must have firmware V1.05A onwards to work with Gadgets.
The firmware version is shown on the Main Menu header on the MK2 Sensor Controller display.
can also be used to switch Gadget mains sockets
I/II/III/IV
) which must be set the same on all
on ALL sockets to a new setting.
tel. 0800 246 1939 | info@telmenow.com | web. www.telmenow.com
•
Pack includes 5 mains switchers and 1 remote control
•
Operating frequency: 433.92MHz
•
Operating voltage: 240V 50Hz AC
•
Maximum load: 13A/3120W
•
Fits standard 13A UK mains socket
•
Red on indicator lamp
•
Compatible with Tynetec MK2 Sensor Controller
•
Remote dimensions: 110mm x 40mm x 16mm (HxWxD)
•
Remote weight: 42 grams
CHANNEL NUMBER
HOUSE CODE
SWITCH
a
GADGET
MAINS SOCKET
HOUSE CODE
II
SWITCH
I
III
IV
2
1
3
4
SWITCH
Radio Receiver
Hand
Radio
Remote
Control
IV
III
II
I
GADGET REMOTE
CONTROL
