Plasma PS-501T4S Quick Start Manual

【Instructions for use】

1. After connecting the power supply and turning it on, the main switch is at the top,
press the green button ①, the green button turns on, indicating that the machine has
entered the power-on state.
The power is off and the indicator light is off The power is on, the indicator light is always on
2. Turn the wind speed adjustment switch clockwise, the fan starts to work, the greater
the twist angle, the greater the air volume. Air volume adjustment range: 0~850m³/h.
No air volume
Air volume adjustment switch
3. Turn the ion concentration adjustment switch clockwise to adjust the amount of ion
generation according to the actual pollution of the user's pollution source. "0" means no
ion generation, "1" means the plasma starts to work, and "3" means (maximum).
Ion concentration adjustment switch
【Technical Specification】
Model PS-501T4S Power
Voltage Air volume
120V AC / 240V AC
Application
2
50~100m Weight
Area
Noise ≤50dB Ion tube
Size 530*160*215mm Ion tube size
Primary/high efficiency
Filter type Ion tube life
filter (optional)
Product

Name
Purchase

Time
Customer
information
Small air volume Large air volume
Sales company stamp：
51 W
0~ 138 m³/h
7.4Kg
4（Standard）
180mm(7 inch）
17000 Hours
Warranty

Card

（Please keep it properly）
Product
Number
Contact
Number
Name/company
contact address
Plasma
Ions

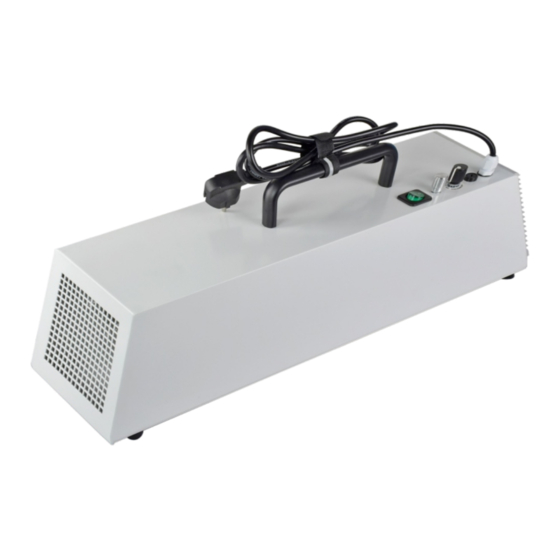

Plasma Air Disinfection Purifier
Model: PS-501T4S
Please
read
the
instructions
before
use
