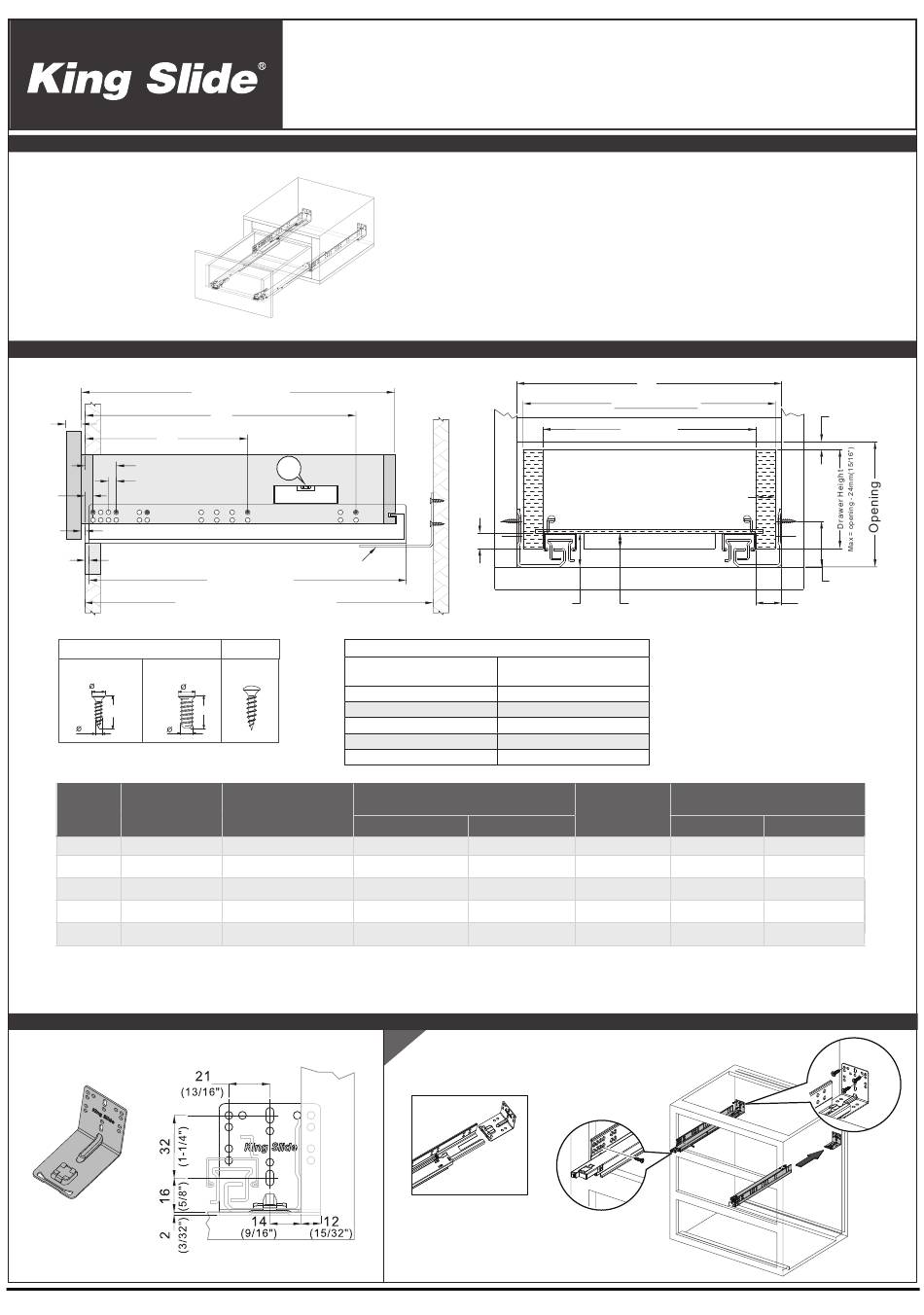

King Slide 1A89F Installation Instructions

Specifications
Dimensional Specifications
X
A
37(1-7/16")
9(11/32")
10
(3/8")
**4 +2.0
(push-open)
- 1.0
0
min gap
4(5/32")max
Cabinet Depth with Bracket
О
Wood Screw System Screws
7.5
17
4.0 6
Drawer Length
Item No.
mm (inch)
1A89F229 229 (9")
1A89F305 305 (12")
1A89F381 381 (15")
1A89F457 457 (18")
1A89F533 533 (21")
Fit with American standard 3" cabinet depth system.
W: Internal Cabinet Width DL: Drawer Length X: Drawer Front Thickness L: Slide Length IDL: Internal Drawer Length
Drawer Installation
IYAR3I
Installation Instruction for
Drawer Length
B
Note
bracket
Profile Length
X
8
10
Overall Cabinet Depth
mm (inch)
305 (12")
381 (15")
457 (18")
533 (21")
610 (24")
• Length: 229 / 305 / 381 / 457 / 533mm
9" / 12" / 15" / 18" / 21"
• Travel: Full Extension
• Maximum Drawer Side Thickness: 16mm
• Max. Load Capacity: 45 kg(100 lb)/pair
• Mount: Undermount
• Material: Galvanized Steel
• Height Adjustment: +3.5mm
• Depth Adjustment: +1/-1mm
max
13mm
min 27.5
Drawer Width Formula
Drawer Side Thickness
mm (inch)
16 (5/8") 10 (3/8")
15 (19/32") 12 (15/32")
14 (9/16") 14 (9/16")
13 (1/2") 16 (5/8")
12 (15/32") 18 (23/32")
Cabinet Depth With Bracket
mm (inch)
MAX MIN
369 (14-9/16") 326 (12-7/8")
446 (17-9/16") 403 (15-7/8")
522 (20-9/16") 479 (18-7/8")
598 (23-9/16") 555 (21-7/8")
1
1A89F
W
Drawer Width
+0.5
W - 42
-1.5
Drawer Side Thickness
Maximum 16mm (5/8")
13(1/2")
W: Internal Cabinet Width
"W" minus
Example:
mm (inch)
Internal Cabinet Width = 457 mm (18")
Drawer Side Thickness = 13 mm (1/2")
Drawer Width = 457 - 16 = 441
System Screw Locations
Profile Length
mm (inch)
A
256 (10-1/16") 133 (5-1/4")
318 (12-1/2") 165 (6-1/2")
394 (15-1/2") 165 (6-1/2")
470 (18-1/2") 261 (10-1/4")
546 (21-1/2") 261 (10-1/4")
Minimum 3 screws per bracket.
min 6
37(1-7/16")
21(13/16")
+0.5
mm
-1.5
= (18") - (5/8") = 17-3/8"
mm (inch)
B
229 (9")
261 (10-1/4")
357 (14-1/16")
453 (17-13/16")
517 (20-3/8")
