1A68
SIMPLEX—

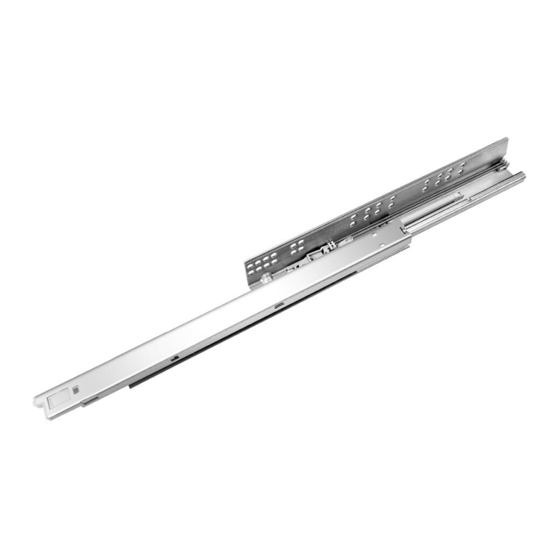

Silent Soft-Closing Undermount Slide (16mm)
1.28
King Slide reserves the right to alter specifications of all the products without notice. If the entity is different from the illustration, please refer to the entity.

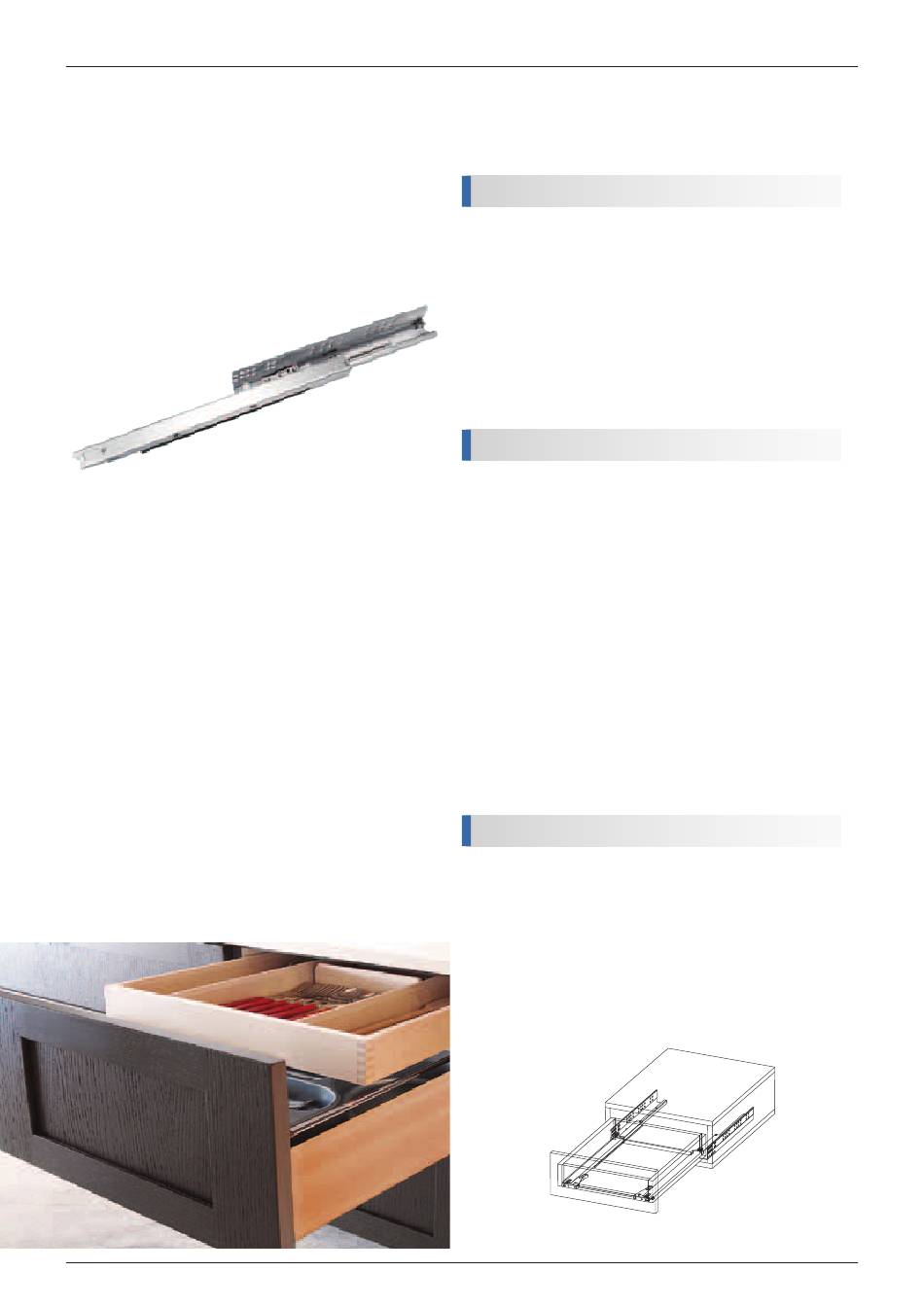

Specifications
• Length: 250mm to 600mm
• Travel: Full Extension
• Maximum Drawer Side Thickness: 16mm
• Max. Load Capacity: 45 kg(100 lb)/pair
• Mount: Undermount
• Material: Galvanized Steel
• Packing: Unit Packed in 2 pairs/carton
6 pairs/carton
Features
• Undermount with full extension travel length
• Ultra smooth gliding motion with high rigidity and stability
design
• Enhanced silent soft-closing feature with light opening force
• Durable damping system with fast response capability
• Tool-less drawer height adjustment from the drawer front with
3.5 mm range
• Effortless assembly and removal of drawer with front release
lever
• High dynamic loading capacity of 34kg (75lb) with 100,000
life cycles, or 45kg (100lb) with 50,000 life cycles
• High installation allowances for drawer width: +0/-2 mm, and
for drawer depth: +1/-1 mm
Applications
• For Frameless Cabinet : Kitchen Furniture, Kitchen Cabinetry,
Home Cabinetry and Box Drawers
+0
-2.0
