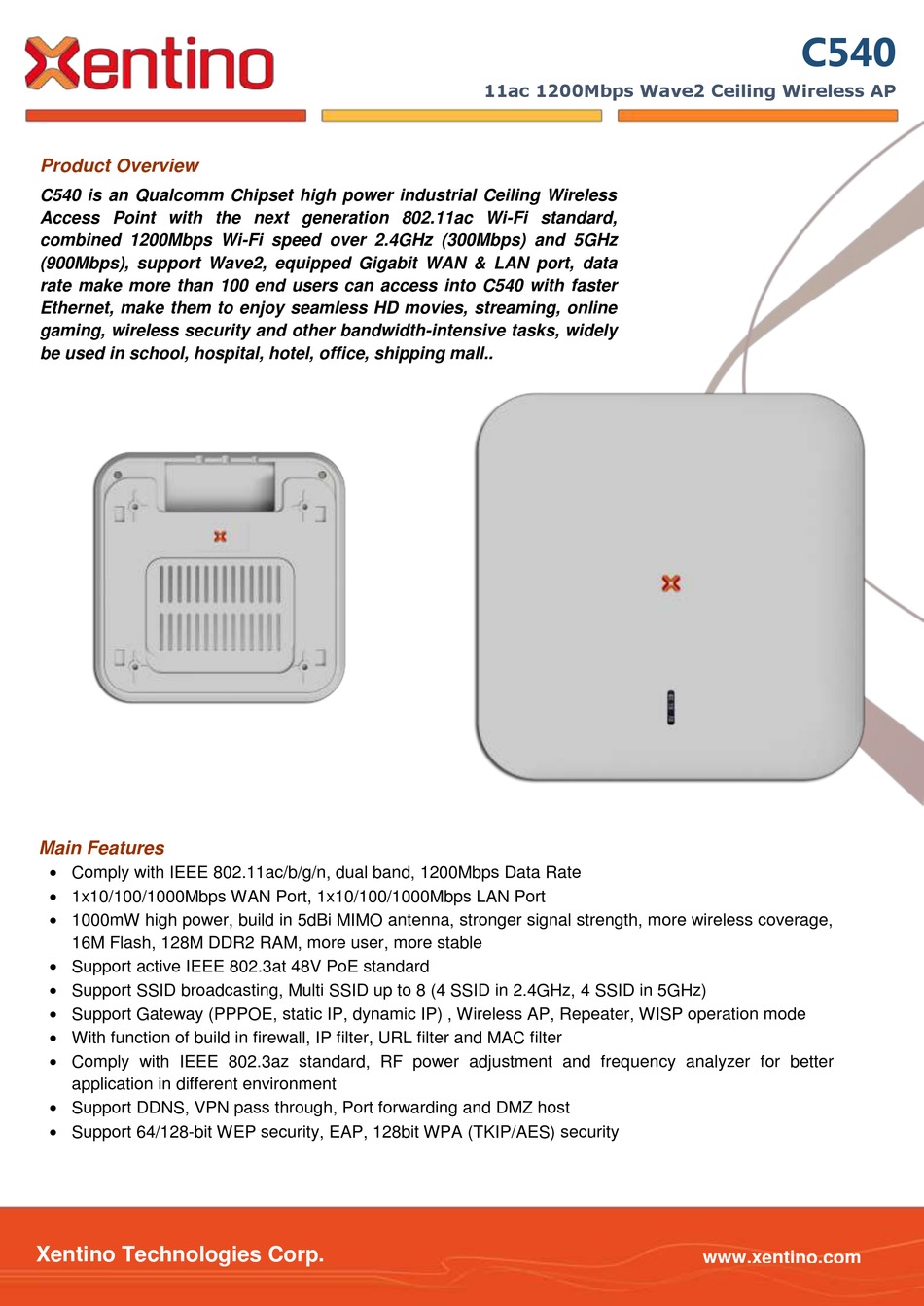

Product Overview

C540 is an Qualcomm Chipset high power industrial Ceiling Wireless
Access Point with the next generation 802.11ac Wi-Fi standard,
combined 1200Mbps Wi-Fi speed over 2.4GHz (300Mbps) and 5GHz
(900Mbps), support Wave2, equipped Gigabit WAN & LAN port, data
rate make more than 100 end users can access into C540 with faster
Ethernet, make them to enjoy seamless HD movies, streaming, online
gaming, wireless security and other bandwidth-intensive tasks, widely
be used in school, hospital, hotel, office, shipping mall..

Main Features

 Comply with IEEE 802.11ac/b/g/n, dual band, 1200Mbps Data Rate
 1x10/100/1000Mbps WAN Port, 1x10/100/1000Mbps LAN Port
 1000mW high power, build in 5dBi MIMO antenna, stronger signal strength, more wireless coverage,
16M Flash, 128M DDR2 RAM, more user, more stable
 Support active IEEE 802.3at 48V PoE standard
 Support SSID broadcasting, Multi SSID up to 8 (4 SSID in 2.4GHz, 4 SSID in 5GHz)
 Support Gateway (PPPOE, static IP, dynamic IP) , Wireless AP, Repeater, WISP operation mode
 With function of build in firewall, IP filter, URL filter and MAC filter
 Comply with IEEE 802.3az standard, RF power adjustment and frequency analyzer for better
application in different environment
 Support DDNS, VPN pass through, Port forwarding and DMZ host
 Support 64/128-bit WEP security, EAP, 128bit WPA (TKIP/AES) security
[Type text]
Xentino Technologies Corp.
11ac 1200Mbps Wave2 Ceiling Wireless AP
C540
www.xentino.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C540 and is the answer not in the manual?

Questions and answers

Related Manuals for Xentino C540

Summary of Contents for Xentino C540

  • Page 1 1200Mbps Wi-Fi speed over 2.4GHz (300Mbps) and 5GHz (900Mbps), support Wave2, equipped Gigabit WAN & LAN port, data rate make more than 100 end users can access into C540 with faster Ethernet, make them to enjoy seamless HD movies, streaming, online gaming, wireless security and other bandwidth-intensive tasks, widely be used in school, hospital, hotel, office, shipping mall..
  • Page 2 Input Multiple-Output), 160MHz Frequency, greatly to improved the communication efficiency. Power over Ethernet C540 has integrated IEEE802.3at Power over Ethernet (PoE), for easy installation and lower cost. So it can be installed in areas where power outlets are not readily available, eliminating the mess of altering existing network infrastructure.
  • Page 3 -68dBm MCS0 . -86dBm 802.11ac HT80 MCS9 -58dBm MCS0 . -85dBm 2.4G: 802.11b: ≤-10 dB; 802.11g: ≤-25 dB; 802.11n: ≤-28 dB 5.8G: 802.11a: ≤-25dB; 802.11n: ≤-28 dB; 802.11ac: ≤-32 dB ±20ppm Max Users 128+ [Type text] Xentino Technologies Corp. www.xentino.com...
  • Page 4 Windows 8, MAC OS, NetWare, UNIX or Linux  Operating Temperature: -30~55 ℃  Max Operating Temperature: -40~70 ℃ Environment  Storage Temperature: -40~70 ℃  Humidity: 5%~95% non-condensing Firmware GUI , Remote Management, WLAN Controller, Cloud Management Management System [Type text] Xentino Technologies Corp. www.xentino.com...
