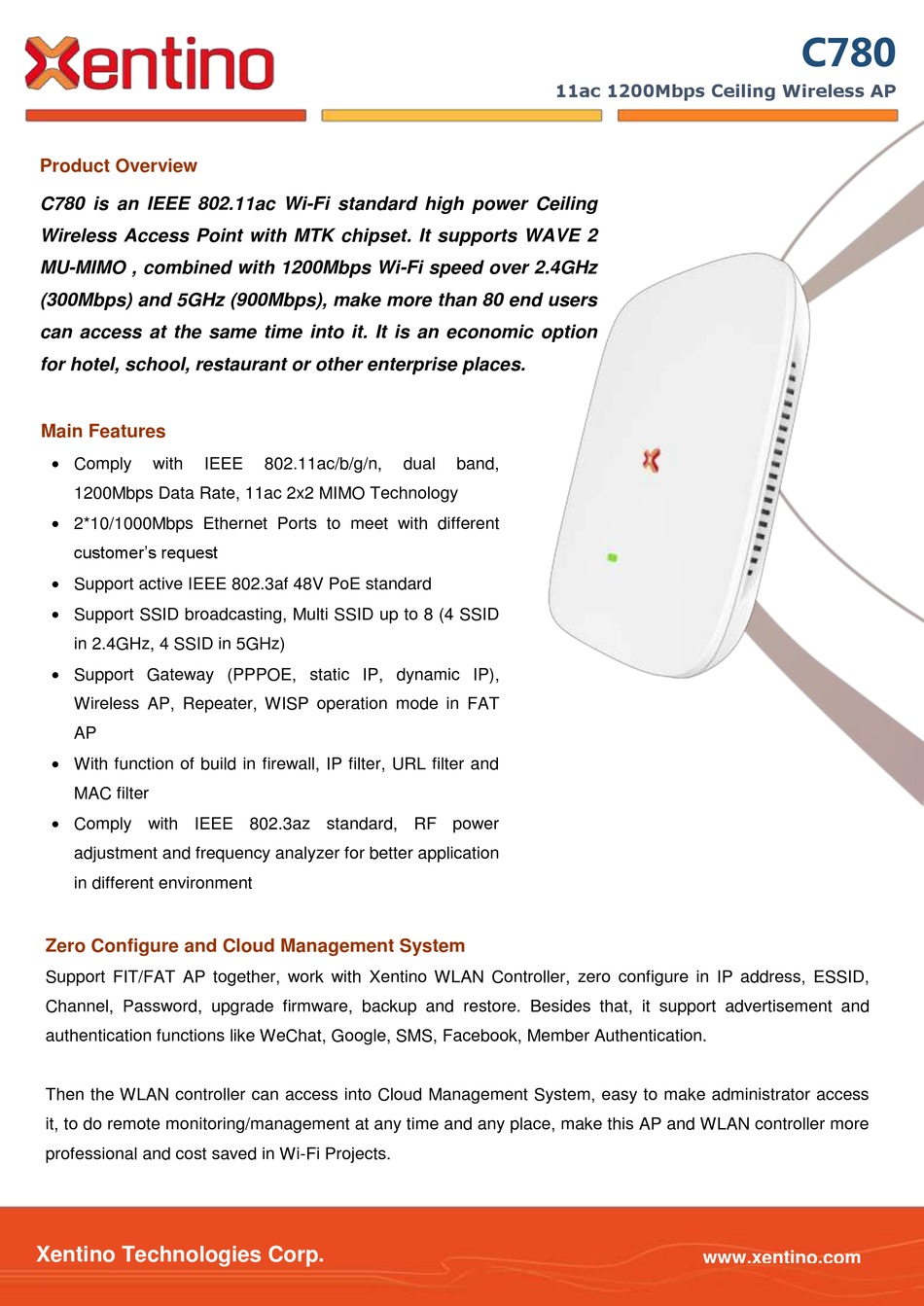

Product Overview

C780 is an IEEE 802.11ac Wi-Fi standard high power Ceiling
Wireless Access Point with MTK chipset. It supports WAVE 2
MU-MIMO , combined with 1200Mbps Wi-Fi speed over 2.4GHz
(300Mbps) and 5GHz (900Mbps), make more than 80 end users
can access at the same time into it. It is an economic option
for hotel, school, restaurant or other enterprise places.

Main Features

 Comply
with IEEE
1200Mbps Data Rate, 11ac 2x2 MIMO Technology
 2*10/1000Mbps Ethernet Ports to meet with different
customer's request
 Support active IEEE 802.3af 48V PoE standard
 Support SSID broadcasting, Multi SSID up to 8 (4 SSID
in 2.4GHz, 4 SSID in 5GHz)
 Support Gateway (PPPOE, static IP, dynamic IP),
Wireless AP, Repeater, WISP operation mode in FAT
AP
 With function of build in firewall, IP filter, URL filter and
MAC filter
 Comply with IEEE 802.3az standard, RF power
adjustment and frequency analyzer for better application
in different environment

Zero Configure and Cloud Management System

Support FIT/FAT AP together, work with Xentino WLAN Controller, zero configure in IP address, ESSID,
Channel, Password, upgrade firmware, backup and restore. Besides that, it support advertisement and
authentication functions like WeChat, Google, SMS, Facebook, Member Authentication.
Then the WLAN controller can access into Cloud Management System, easy to make administrator access
it, to do remote monitoring/management at any time and any place, make this AP and WLAN controller more
professional and cost saved in Wi-Fi Projects.
[Type text]
Xentino Technologies Corp.
802.11ac/b/g/n, dual
11ac 1200Mbps Ceiling Wireless AP
band,
C780
