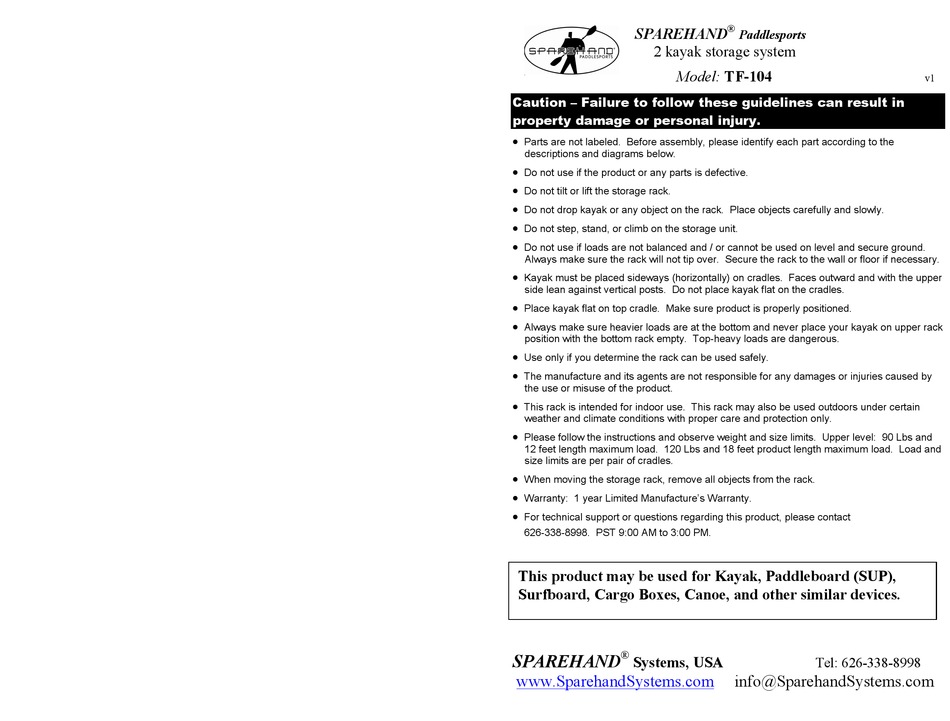

SPAREHAND
2 kayak storage system
Model: TF-104
Caution – Failure to follow these guidelines can result in
property damage or personal injury.
Parts are not labeled. Before assembly, please identify each part according to the
descriptions and diagrams below.
Do not use if the product or any parts is defective.
Do not tilt or lift the storage rack.
Do not drop kayak or any object on the rack. Place objects carefully and slowly.
Do not step, stand, or climb on the storage unit.
Do not use if loads are not balanced and / or cannot be used on level and secure ground.
Always make sure the rack will not tip over. Secure the rack to the wall or floor if necessary.
Kayak must be placed sideways (horizontally) on cradles. Faces outward and with the upper
side lean against vertical posts. Do not place kayak flat on the cradles.
Place kayak flat on top cradle. Make sure product is properly positioned.
Always make sure heavier loads are at the bottom and never place your kayak on upper rack
position with the bottom rack empty. Top-heavy loads are dangerous.
Use only if you determine the rack can be used safely.
The manufacture and its agents are not responsible for any damages or injuries caused by
the use or misuse of the product.
This rack is intended for indoor use. This rack may also be used outdoors under certain
weather and climate conditions with proper care and protection only.
Please follow the instructions and observe weight and size limits. Upper level: 90 Lbs and
12 feet length maximum load. 120 Lbs and 18 feet product length maximum load. Load and
size limits are per pair of cradles.
When moving the storage rack, remove all objects from the rack.
Warranty: 1 year Limited Manufacture's Warranty.
For technical support or questions regarding this product, please contact
626-338-8998. PST 9:00 AM to 3:00 PM.
This product may be used for Kayak, Paddleboard (SUP),
Surfboard, Cargo Boxes, Canoe, and other similar devices.
®
SPAREHAND
Systems, USA
www.SparehandSystems.com
®
Paddlesports
Tel: 626-338-8998
info@SparehandSystems.com
v1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Paddlesports TF-104 and is the answer not in the manual?

Questions and answers

Summary of Contents for Sparehand Systems Paddlesports TF-104

  • Page 1 ® SPAREHAND Paddlesports 2 kayak storage system Model: TF-104 Caution – Failure to follow these guidelines can result in property damage or personal injury.  Parts are not labeled. Before assembly, please identify each part according to the descriptions and diagrams below. ...
  • Page 2 Kayak Rack Parts List TF-104 Installation Procedure: The following parts are required for TF-104 Kayak Rack Step 1. Assemble Part (A) onto Part (B) using bolt (X). Base Beam (2 PCS) Cross Beam (2 PCS) Step 2. Assemble Part (C) to Part (A) using bolt (Y). Vertical Post (2 PCS) Step 3.
