Sparehand Systems TF-507 Manual

3 kayak storage

Advertisement

Please check our website for instruction manual updates
© Sparehand Systems, 2018. All rights reserved. Made in China
SPAREHAND

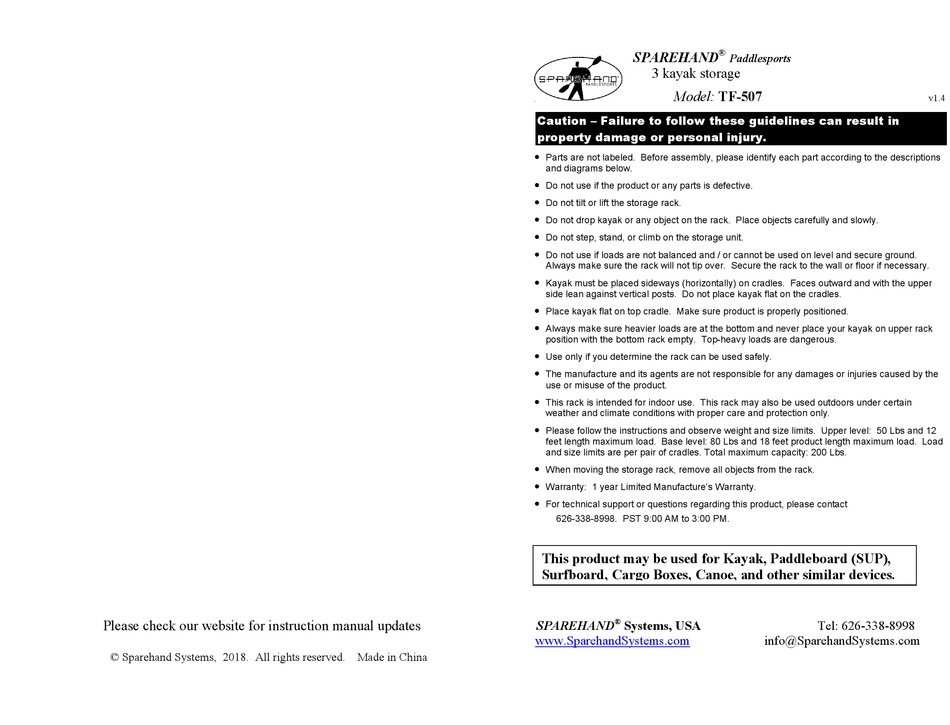

3 kayak storage
Model: TF-507
Caution – Failure to follow these guidelines can result in
property damage or personal injury.
Parts are not labeled. Before assembly, please identify each part according to the descriptions
and diagrams below.
Do not use if the product or any parts is defective.
Do not tilt or lift the storage rack.
Do not drop kayak or any object on the rack. Place objects carefully and slowly.
Do not step, stand, or climb on the storage unit.
Do not use if loads are not balanced and / or cannot be used on level and secure ground.
Always make sure the rack will not tip over. Secure the rack to the wall or floor if necessary.
Kayak must be placed sideways (horizontally) on cradles. Faces outward and with the upper
side lean against vertical posts. Do not place kayak flat on the cradles.
Place kayak flat on top cradle. Make sure product is properly positioned.
Always make sure heavier loads are at the bottom and never place your kayak on upper rack
position with the bottom rack empty. Top-heavy loads are dangerous.
Use only if you determine the rack can be used safely.
The manufacture and its agents are not responsible for any damages or injuries caused by the
use or misuse of the product.
This rack is intended for indoor use. This rack may also be used outdoors under certain
weather and climate conditions with proper care and protection only.
Please follow the instructions and observe weight and size limits. Upper level: 50 Lbs and 12
feet length maximum load. Base level: 80 Lbs and 18 feet product length maximum load. Load
and size limits are per pair of cradles. Total maximum capacity: 200 Lbs.
When moving the storage rack, remove all objects from the rack.
Warranty: 1 year Limited Manufacture's Warranty.
For technical support or questions regarding this product, please contact
626-338-8998. PST 9:00 AM to 3:00 PM.
This product may be used for Kayak, Paddleboard (SUP),
Surfboard, Cargo Boxes, Canoe, and other similar devices.
®
SPAREHAND
Systems, USA
www.SparehandSystems.com
®
Paddlesports
system
.
Tel: 626-338-8998
info@SparehandSystems.com
v1.4
