Paradise Datacom HPAC-100-RM Operation Manual

Solid state power amplifier
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Paradise Datacom LLC
1012 East Boal Avenue
Boalsburg, PA 16827

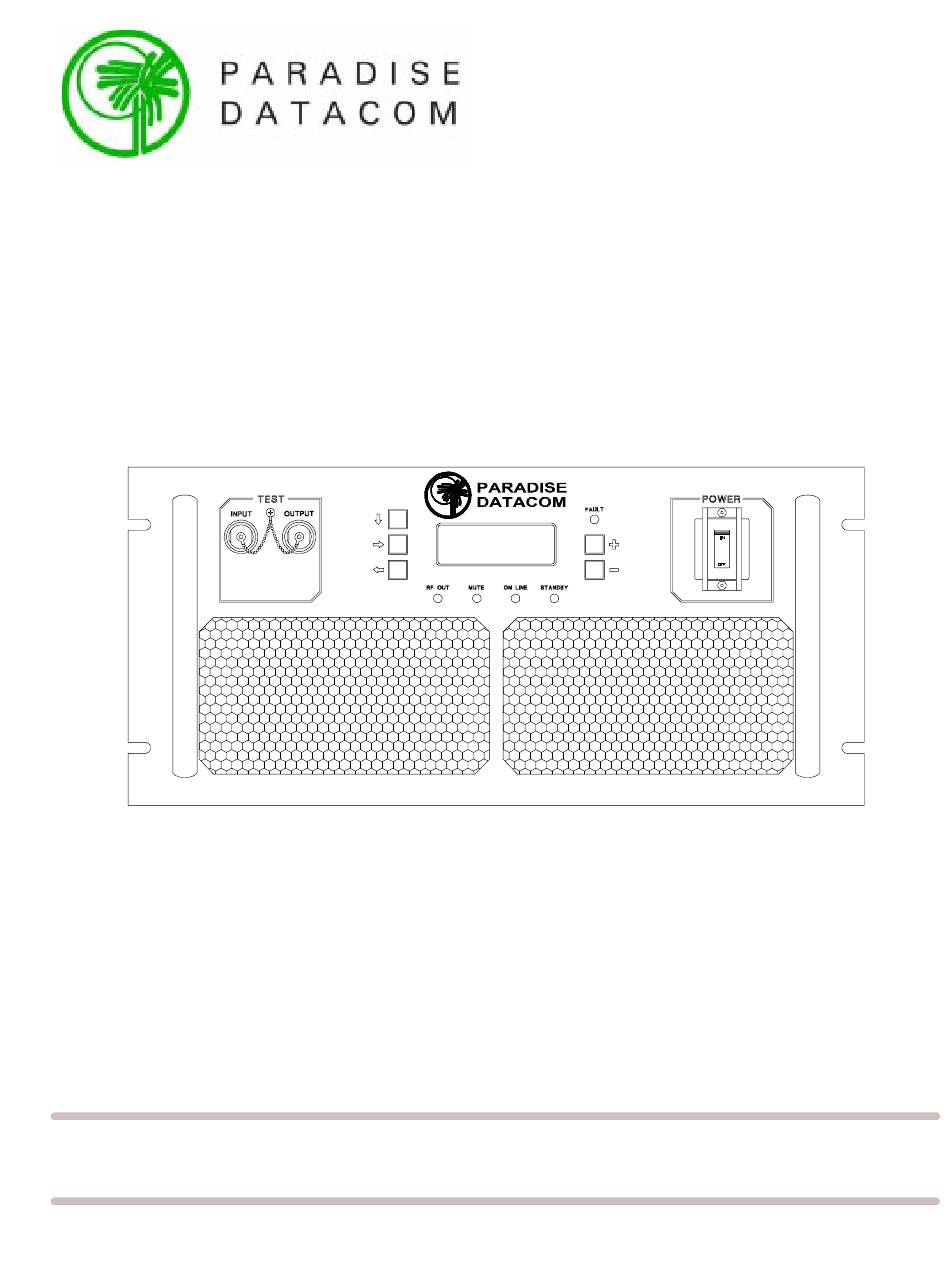

Drawing No.: 201081
HPAC-100/125/150/200/250-RM
Solid State Power Amplifier
Operations Manual
RA/ECO No. : 697
Phone:
(814) 466-6275
Fax:
(814) 466-3341
Email: sales@paradisedata.com
Revision: -
Date:01/10/02
