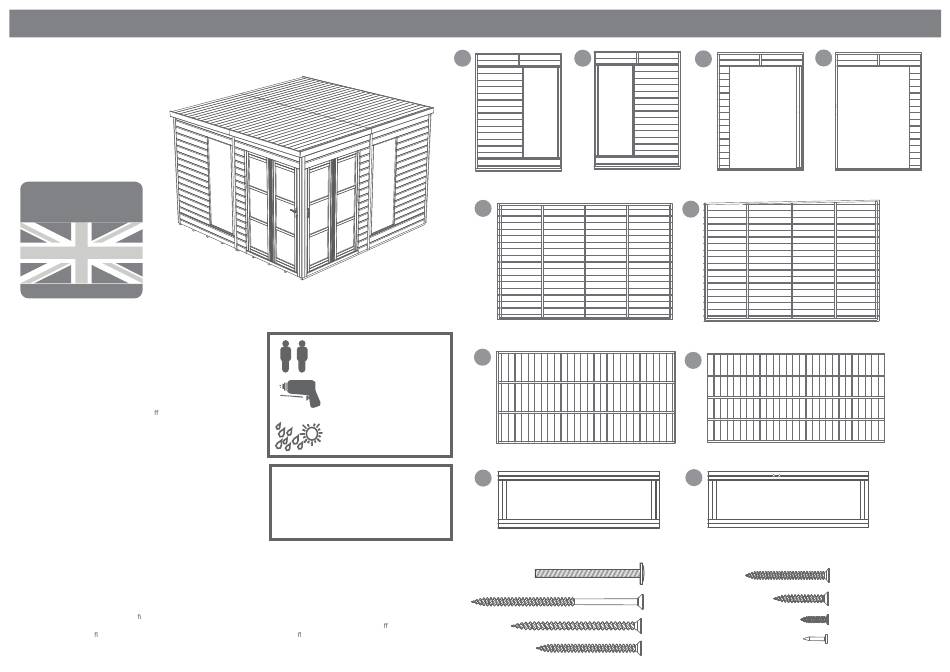

03POH1010-V2

Overall Dimensions:

Length = 308cm
Width = 314cm
Height = 211cm
Base Dimensions:
Length = 306cm
Width = 306cm
Before assembly
please make sure you have a
suitable base ready to erect your
building
MADE IN GREAT BRITAIN
BEFORE YOU START PLEASE READ INSTRUCTIONS CAREFULLY
- Check the pack and make sure you have all the parts listed.
- When you are ready to start, make sure you have the right tools at hand
(not supplied) including a Phillips screwdriver, Stanley knife, wood saw,
step ladder and drill with 2mm bit.
- Ensure there is plenty of space and a clean dry area for assembly.
TIMBER
As with all natural materials, timber can be a ected during various weather
conditions. For the duration of heavy or extended periods of rain, swelling of the
wood panels may occur. Warping of the wood may also occur during excessive
dry spells due to an interior moisture loss. Unfortunately, these processes cannot
be avoided but can be helped. It is suggested that the outdoor building is
sprayed with water during extended periods of warm sunshine and sheltered as
much as possible during rain or snow.
Our buildings are delivered pre-treated with a water based timber treatment
however this only helps to protect during transit of your garden item. To
validate your guarantee and for better protection against weathering it is
ESSENTIAL that you treat the garden building with a wood preserver within 3
months of assembly. This will need to be re-applied annually to ensure longevity
of your building. Care must be taken when constructing the garden building
that it is not touching the ground and is on a suitable base.

BUILDING A BASE

When thinking about where the building and base is going to be constructed: Ensure that there will be access to all sides for maintenance
work and annual treatment.

TYPES OF BASE

- Concrete 75mm laid on top of 75mm hard-core.
- Slabs laid on 50mm of sharp sand.
Ensure the base is level and is built on rm ground, to prevent distortion. Refer to diagrams for the base dimensions, The base should be
slightly smaller than the external measurement of the building, i.e. The cladding should overlap the base, creating a run o for water. It is also
recommended that the oor be at least 25mm above the surrounding ground level to avoid ooding.
Whilst all products manufactured are made to the highest standards of Safety and in the case of childrens products independently tested to EN71
level, we cannot accept responsibility for your safety whilst erecting or using this product.
x2
This building should be erected by
two people.
For ease of assembly, you must pilot
drill all screw holes and ensure all
screw heads are countersunk.
2mm Drill bit
Winter = High Moisture = Expansion
Summer = Low Moisture = Contraction
For Assistance Please
Contact Customer Care on
01636 880514
Please retain product label and instructions for future reference
1
2
Window Panel 2
Window Panel 1
5
Back Panel 1
7
Roof x2
35
Plain Door x3
4
3
Door Panel 1
6
Back Panel 2
8
Floor x2
36
Master Door
50mm Bolt x2
100mm Screw x8
70mm Screw x2
50mm Screw x80
Door Panel 2
40mm Screw x35
30mm Screw x117
10mm Screw x40
Felt Tacks x130

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 03POH1010-V2 and is the answer not in the manual?

Questions and answers

Summary of Contents for ManoMano 03POH1010-V2

  • Page 1 03POH1010-V2 Please retain product label and instructions for future reference Overall Dimensions: Length = 308cm Width = 314cm Height = 211cm Base Dimensions: Length = 306cm Width = 306cm Door Panel 1 Window Panel 2 Window Panel 1 Door Panel 2...
  • Page 2 Fixing Kit Pre Assembly 44x44x1989mm Front Panel Frame Fix the butt hinges to the doors and both door gables using 30mm screw 30mm screws ensuring that the screws go through to the framing. 58x44x1989mm Panel Frame Make sure that the master door is positioned on the correct side of the gable as shown below.
  • Page 3 Step 2 The Mortice Lock is Reversible Step 4 Fit the mortice lock into the recess and fix in place with the screws provided. Fit the key plate using the screws provided. Place Back Panel 2 Fix door handles using 8x30mm screws. on top of oor as Then fit barrel bolts to top and bottom of the doors as shown in shown.
  • Page 4 Step 7 Step 6 Place the remaining panels into position and x to the The Door and Window panels can be placed in a variety of con gurations (examples shown below), other panels using 50mm place the panels into position according to preferred con guration. All panels are xed with the same screws as shown in xing method using 50mm screws in the marked positions.
  • Page 5 Step 10 Step 9 Attach roof block to corner of one the roof panels as show below, pre drill Pre-drill Holes and x truss into position holes from the outside and x using 2 x 50mm screws. using 2x 100mm screws per side. Place roof panels on top making sure the roof block ts over the corner of We strongly recommend pre drilling the building as shown below.
  • Page 6 Step 11 We strongly recommend pre drilling Fix Roof Eaves to the back of the roof panels as shown. Using 3 x 40mm holes before xing screws. screws per piece. Ensure to pre-drill holes rst to avoid splitting wood. We strongly recommend pre drilling holes before xing screws.
  • Page 7 We strongly recommend pre drilling holes before xing screws. Step 16 Step 14 Fit the fascias to the building over the felt and secure in place with Fix Corner trims into position using 3 x30mm screws. Pre-drill 40mm screws as shown. holes rst.
  • Page 8 Step 18 Fix Door strips to outside, make sure to fit them to AFTER TREATMENT: score around protective the door without a handle on either side. Ensure there is enough cover over the other door. Fix using cover on glazing and 4x30mm screws per strip making sure to pre drill carefully peel covering back...
