PART LIST
A
B
C
D
E
F
G
H
SAVE THESE INSTRUCTIONS

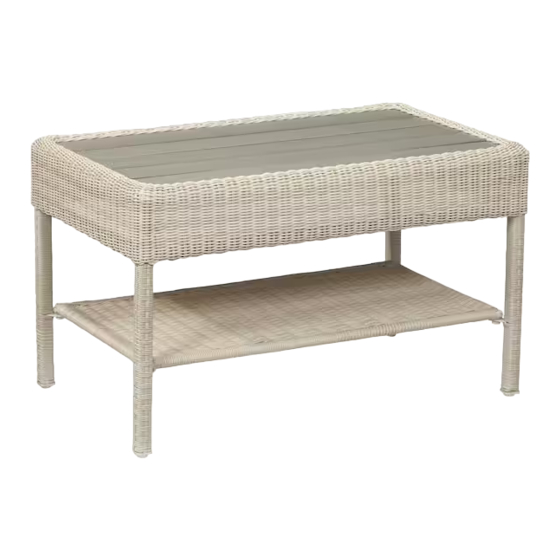

SONOMA PRESIDIO COFFEE TABLE
ASSEMBLE ON A FLAT, PROTECTED SURFACE.
FIGURE
QUANTITY
4 PCS + 1 PC
4 PCS + 1 PC
4 PCS + 1 PC
8 PCS + 1 PC
1 PC
4 PCS
1 PC
1 PC
DESCRIPTION
TABLE TOP
LEG
SHELF
SHORT BOLT
(Φ8X12MM)
WASHER
LONG BOLT
(Φ8X16MM)
BOLT CAP
ALLEN WRENCH
Page 1/3
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for KÖHL SONOMA PRESIDIO
Summary of Contents for KÖHL SONOMA PRESIDIO
- Page 1 SAVE THESE INSTRUCTIONS SONOMA PRESIDIO COFFEE TABLE ASSEMBLE ON A FLAT, PROTECTED SURFACE. FIGURE DESCRIPTION PART LIST QUANTITY 1 PC TABLE TOP 4 PCS 1 PC SHELF SHORT BOLT 4 PCS + 1 PC (Φ8X12MM) 4 PCS + 1 PC...
- Page 2 ASSEMBLY INSTRUCTIONS (CONTINUED) SONOMA PRESIDIO COFFEE TABLE STEP 1 A. PLACE TABLE TOP (A) UPSIDE DOWN ON A FLAT, PROTECTED SURFACE. B. INSERT LEGS (B) WITH THE SHELF SUPPORTS FACING THE CENTER INTO THE 4 HOLES ON TABLE TOP (A) AS SHOWN.
- Page 3 ASSEMBLY INSTRUCTIONS (CONTINUED) SONOMA PRESIDIO COFFEE TABLE STEP 3 A. ROTATE TABLE TO THE UPRIGHT POSITION. B. ADJUST LEG LEVELERS AS NEEDED SO THAT IT STANDS STABLE ON THE FLOOR. C. ASSEMBLY IS COMPLETE. ** WE RECOMMEND THAT YOU SAVE THE ALLEN WRENCH (H) AND PERIODICALLY TIGHTEN ALL BOLTS.
