DKC55

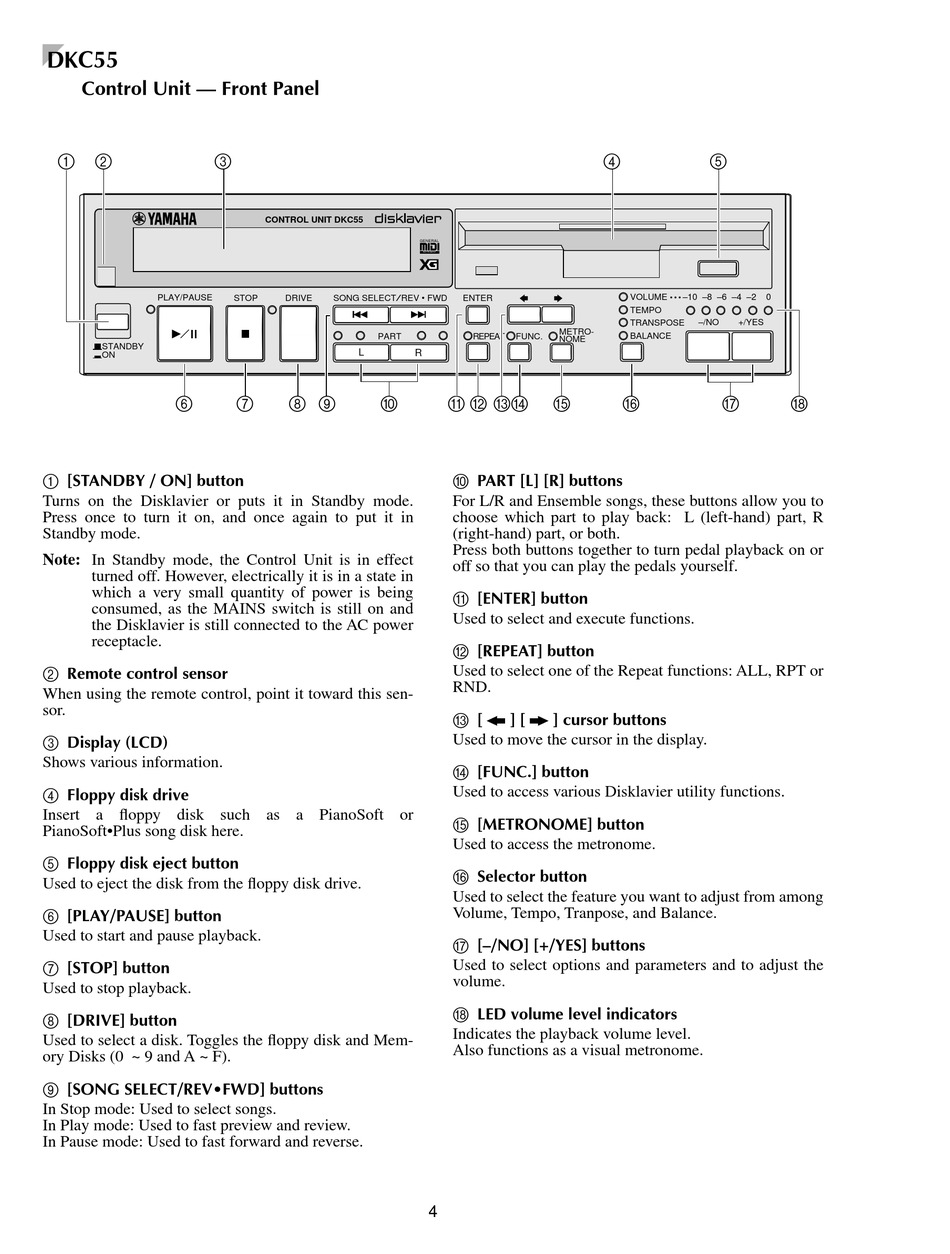

Control Unit — Front Panel
1 2 3
PLAY/PAUSE
STANDBY
ON
6
1 [STANDBY / ON] button
Turns on the Disklavier or puts it in Standby mode.
Press once to turn it on, and once again to put it in
Standby mode.
Note: In Standby mode, the Control Unit is in effect
turned off. However, electrically it is in a state in
which a very small quantity of power is being
consumed, as the MAINS switch is still on and
the Disklavier is still connected to the AC power
receptacle.
2 Remote control sensor
When using the remote control, point it toward this sen-
sor.
3 Display (LCD)
Shows various information.
4 Floppy disk drive
Insert a floppy disk such as a PianoSoft or
PianoSoft•Plus song disk here.
5 Floppy disk eject button
Used to eject the disk from the floppy disk drive.
6 [PLAY/PAUSE] button
Used to start and pause playback.
7 [STOP] button
Used to stop playback.
8 [DRIVE] button
Used to select a disk. Toggles the floppy disk and Mem-
ory Disks (0 ~ 9 and A ~ F).
9 [SONG SELECT/REV•FWD] buttons
In Stop mode: Used to select songs.
In Play mode: Used to fast preview and review.
In Pause mode: Used to fast forward and reverse.
CONTROL UNIT DKC55
STOP DRIVE SONG SELECT/REV • FWD
PART
L
7 8 9 0
GENERAL
INSTRUMENT
ENTER
METRO-
REPEAT FUNC.
NOME
R
A B CD E
0 PART [L] [R] buttons
For L/R and Ensemble songs, these buttons allow you to
choose which part to play back: L (left-hand) part, R
(right-hand) part, or both.
Press both buttons together to turn pedal playback on or
off so that you can play the pedals yourself.
A [ENTER] button
Used to select and execute functions.
B [REPEAT] button
Used to select one of the Repeat functions: ALL, RPT or
RND.
C [ ] [ ] cursor buttons
Used to move the cursor in the display.
D [FUNC.] button
Used to access various Disklavier utility functions.
E [METRONOME] button
Used to access the metronome.
F Selector button
Used to select the feature you want to adjust from among
Volume, Tempo, Tranpose, and Balance.
G [–/NO] [+/YES] buttons
Used to select options and parameters and to adjust the
volume.
H LED volume level indicators
Indicates the playback volume level.
Also functions as a visual metronome.
4
4 5
VOLUME –10 –8 –6 –4 –2 0
• • •
TEMPO
–/NO +/YES
TRANSPOSE
BALANCE
F G H
