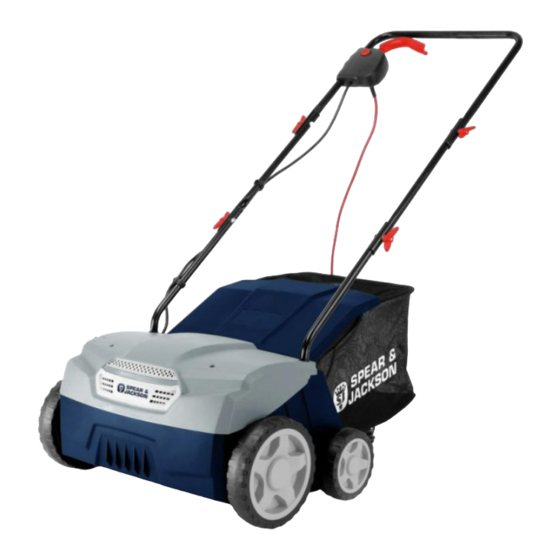

SCARIFIER AND RAKER
S1432ESC
1 of 25
Important - Please read these instructions
fully before starting assembly
These instructions contain important information that will help
you get the best from your scarifer and raker, ensuring it is assembled
correctly and safely. If you need help or have damaged or missing parts,
V2:03/21
call the Customer Helpline on 03456052067
ORIGINAL
INSTRUCTIONS
Please retain for future reference
AFTER SALES SUPPORT
0345 605 2067
SAN NO.: 03218AUAO041
AFTER SALES SUPPORT 0345 605 2067
V2:03/21
1 of 25
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Spear & Jackson S1432ESC
Summary of Contents for Spear & Jackson S1432ESC
- Page 1 ORIGINAL INSTRUCTIONS Please retain for future reference 1400W ELECTRIC SCARIFIER AND RAKER S1432ESC 1 of 25 V2:03/21 Important - Please read these instructions fully before starting assembly AFTER SALES SUPPORT 0345 605 2067 These instructions contain important information that will help you get the best from your scarifer and raker, ensuring it is assembled correctly and safely.
- Page 2 SPEAR & JACKSON SINCE 1760 For more than 250 years gardeners have enjoyed high quality performance and great results using Spear & Jackson tools. Our garden power tools combine continuous innovation and the latest in manufacturing technologies with a proud heritage. Each product is carefully designed with performance, comfort and durability firmly in mind, which has earned Spear &...
-
Page 3: Table Of Contents
CONTENTS SAFETY INFORMATION Description of symbols General power tool safety warning Work area safety Electrical safety Personal safety Power tool use and care Intended use Residual risks IN THE BOX Parts list ASSEMBLY Handle bar assembly PREPARE Install correct cutting device Assemble the raker cylinder Install debris collection bag Adjusting the working height setting... -
Page 4: Safety Information
SAFETY INFORMATION Please read these instructions fully before operating or maintaining your machine. DESCRIPTION OF SYMBOLS Some of the following symbols may be used on your tool. Be sure to study them and learn their meaning. Proper interpretation of these symbols will allow you to use the machine more effectively and reduce the risk of accident. - Page 5 SAFETY INFORMATION Please read these instructions fully before operating or maintaining your machine. DESCRIPTION OF SYMBOLS Some of the following symbols may be used on your tool. Be sure to study them and learn their meaning. Proper interpretation of these symbols will allow you to use the machine more effectively and reduce the risk of accident.
-
Page 6: General Power Tool Safety Warning
SAFETY INFORMATION Please read these instructions fully before operating or maintaining your machine GENERAL POWER TOOLS SAFETY WARNINGS General power tool safety include among others warnings regular maintenance and care of the product and application tools, WARNING! Read all keeping hands warm, safety warnings and all periodical breaks and instructions. -
Page 7: Electrical Safety
SAFETY INFORMATION Please read these instructions fully before operating or maintaining your machine you to lose control. d) Do not abuse the cord. Never use the cord Electrical Safety for carrying, pulling or a) Power tool plugs must unplugging the power tool. match the outlet. - Page 8 SAFETY INFORMATION Please read these instructions fully before operating or maintaining your machine operating a power tool. your finger on the switch or energising power tools Do not use a power that have the switch on tool while you are tired invites accidents.
-
Page 9: Power Tool Use And Care
SAFETY INFORMATION Please read these instructions fully before operating or maintaining your machine extraction and collection making any adjustments, facilities, ensure these are changing accessories, connected and properly or storing power tools. used. Such preventive safety measures reduce the risk Use of dust collection of starting the power tool can reduce dust-related... -
Page 10: Intended Use
SAFETY INFORMATION Please read these instructions fully before operating or maintaining your machine f) Keep cutting tools sharp instruction concerning use and clean. of the product by a person responsible for their safety. Properly maintained cutting tools with sharp Children should be cutting edges are less supervised ensuring that they likely to bind and are... -
Page 11: Residual Risks
SAFETY INFORMATION Please read these instructions fully before operating or maintaining your machine 3). When used as a raker, the in connection with the fine needles will scratch structure and design of this the surface of the lawn product: while simultaneously 1. -
Page 12: In The Box
IN THE BOX PARTS Switch box Rear wheel Start/stop lever Debris collection bag Upper handle Rear flap Middle handle Cord clip (X2) Lower handle Power cord Handle mounting set (4pcs) Cutting device (scarifying cylinder) Air vents Cutting device (raking cylinder) Depth adjustment lever Handle fixing screws(X2) Front wheel... -
Page 13: Assembly
ASSEMBLY Handle Bar Assembly A. Place the machine on firm ground. Take out handles and handle mounting set. B. Align the lower handle bars with frame (Lower hand bar hole). Keep the direction of both lower handle bar in line with the wheels will assist in aligning the corresponding holes in the frame. - Page 14 ASSEMBLY E. Put the cord strain relief on the upper handle bar, just under the switch box, align the upper handle bar with the middle handle bar and secure them with one mounting set on each side. In 2 positions F.
-
Page 15: Prepare
PREPARE Install correct cutting device The machine is fitted with a scarifying cylinder blade before delivery. A. For scarifying Correct cutting blade is fitted already thus no need for extra installation. B. For raking You need to disassemble the scarifying cylinder blade firstly before fitting the raking blade. -
Page 16: Assemble The Raker Cylinder
PREPARE c. Lift the lock lever, and that will release the blade cylinder. lock lever d. Push the scarifying blade cylinder out of the seat. Assemble the raker cylinder Fix the raker cylinder in the reverse order. Install the debris collection bag Depending on the work you intend to do, you may need to install the collection bag. -
Page 17: Adjusting The Working Height Setting
PREPARE Adjust the working height setting Push the depth adjustment lever towards the wheel and then move it forward or backward to adjust the cutting depth. as per your needs. Scale / Setting Appplication Position Depth Scarifying Raking minimal 5 mm do not use for scarifying raking healthy lawn middle... -
Page 18: Operation
OPERATION Switch on/off First, press the lock-off button fully, then hold the start/ stop lever. When machine is operated, the lock-off button can be released. Hold the machine Keep your body straight to the work with double hands and keep your feet away from the moving cylinder blade. Scarifying work Scarifying work is run with scarifying cylinder with blades, you can adjust the working depth by setting the height... -
Page 19: Raking Work
OPERATION Raking work Raking work is run with raking cylinder with fine needles,you can adjust the working depth by depth adjustment lever accordingly. In order that a healthy lawn can develop in the spring, it is necessary for greater amounts of air to penetrate the area around the roots of the grass. -
Page 20: Stop Machine
OPERATION Stop machine Release the start/stop lever,machine will stop running. Press the lock-off button and hold the Start/stop lever, restart the machine. Disconnect power source When you finish work, remember disconnect power source. Empty debris collection bag Empty the bag frequently during use. Do not wait until it is completely full. -
Page 21: Maintenance
MAINTENANCE Clean machine body When you have finished using the machine, always clean the deflector guard, handle bars and all main parts with a clean cloth after use. Clean scarifying cylinder (with blades) Once you have scarified the lawn, always clean the cylinder, blade, plastic body with a clean cloth or soft brush ensuring all residual dirt and sand are removed. -
Page 22: Technical Data
TECHNICAL DATA Model S1432ESC Rated voltage 220-240V~50Hz Rated power 1400W Replacement fuse rating No-load speed 3000/min Max.cutting width 32cm Working height setting 4 adjustments(-10/-5/0/5mm) Grass catcher bag Vibration 3.591m/s² K=1.5m/s² Measured sound power level L 98.16dB(A) Guaranteed sound power level L... - Page 23 TECHNICAL DATA Proper measures include among others regular maintenance and care of the product and application tools, keeping hands warm, periodical breaks and proper planning of work processes. The sound values have been determined according to noise test code given in EN 50636-2- 92, using the basic standards EN ISO 11201 and EN ISO 3744.
-
Page 24: Troubleshooting
TROUBLESHOOTING TROUBLESHOOTING Suspected malfunctions are often due to causes that the users can fix themselves. Therefore check the product using this section. In most cases the problem can be solved quickly. WARNING! Only perform the steps described within these instructions! All further inspection, maintenance and repair work must be performed by an authorized service centre or a similarly qualified specialist if you cannot solve the problem yourself! Problem... -
Page 25: Warranty
WARRANTY If your device develops a fault, please don’t hesitate to contact our customer service department on 0345 605 2067, we aim to solve 80% of problems via the phone. These warranty terms cover additional warranty rights and do not affect your statutory warranty rights.
